Stock code1312-ADVA006-018-12DC

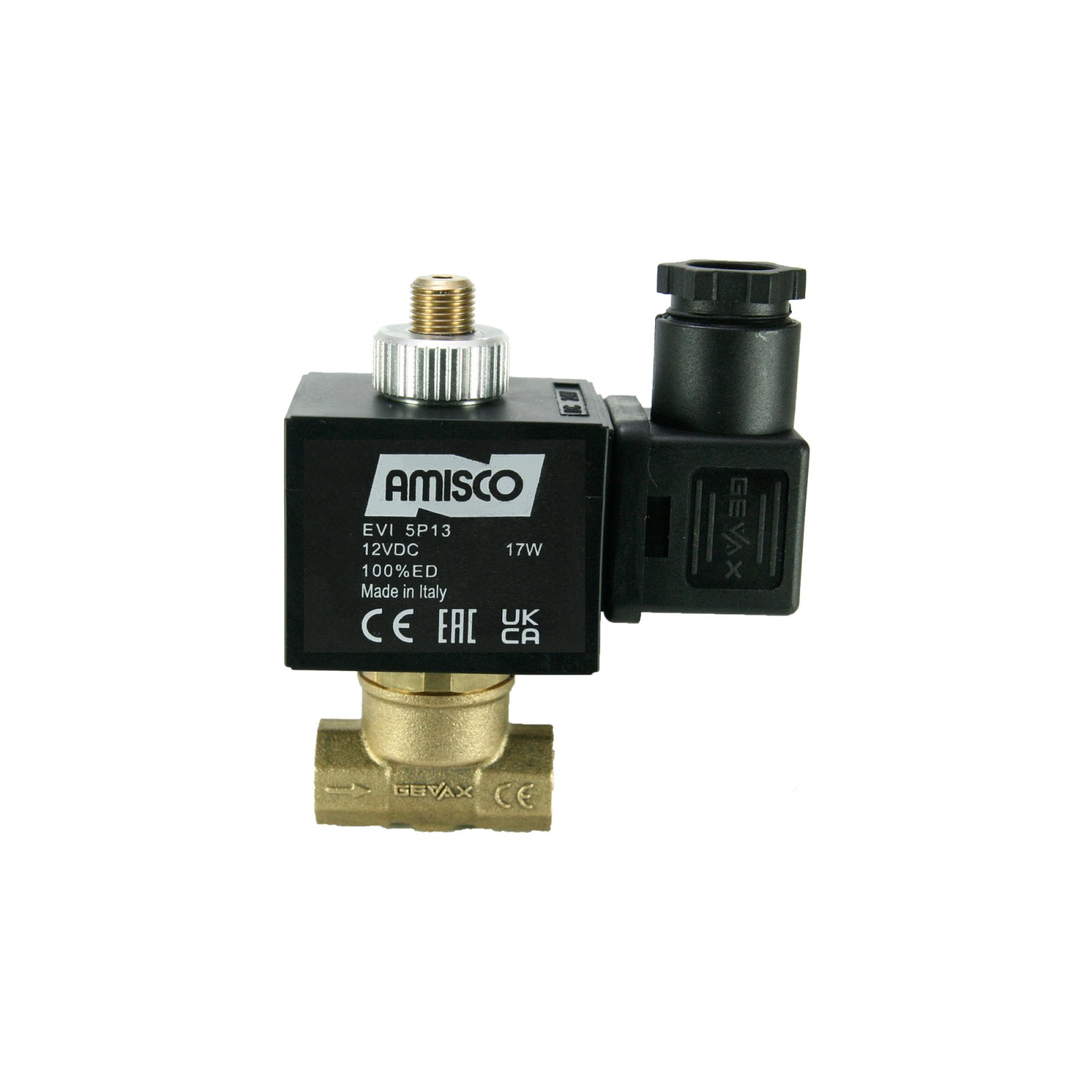

1/8" Solenoid Valve N.O. 3/2 Ways Top Inlet Direct Acting FKM 0 - 6 Bar 12V DC 17 W
The prominent features of the brass body normally opened general purpose solenoid valve you are reviewing: Mini body, economic series. Air, Vacuum Recommended for use in applications such as etc. Zero Differantial Pressure, Pneumatic works on systems. The usage area where the product is frequently preferred is; Automotive, Textile, Compressor, Machining Process.
Technical specifications
18 fields- Valve Type
- General Purpose Valves
- Connection Size
- 1/8"
- Position
- Normally Open
- Operating Principle
- Direct Acting
- Ways
- 3/2
- Seal & Diaphragm
- FKM
- Minimum Pressure (bar)
- 0
- Maximum Pressure (bar)
- 6
- Orifice Size (mm)
- 1.8
- Temperature (°C)
- -10°C +150°C
- Coil Brand
- Amisco
- Coil Voltage
- 12V DC
- Coil Power
- 17 W
- Coil Type
- TP4
- KV Value
- 1.5 l/min
- Body Material
- Brass
- Body Code
- 75WA
- Product Weight (kg.)
- 0.335
