Stock code1312-KDNB010-015-220AC

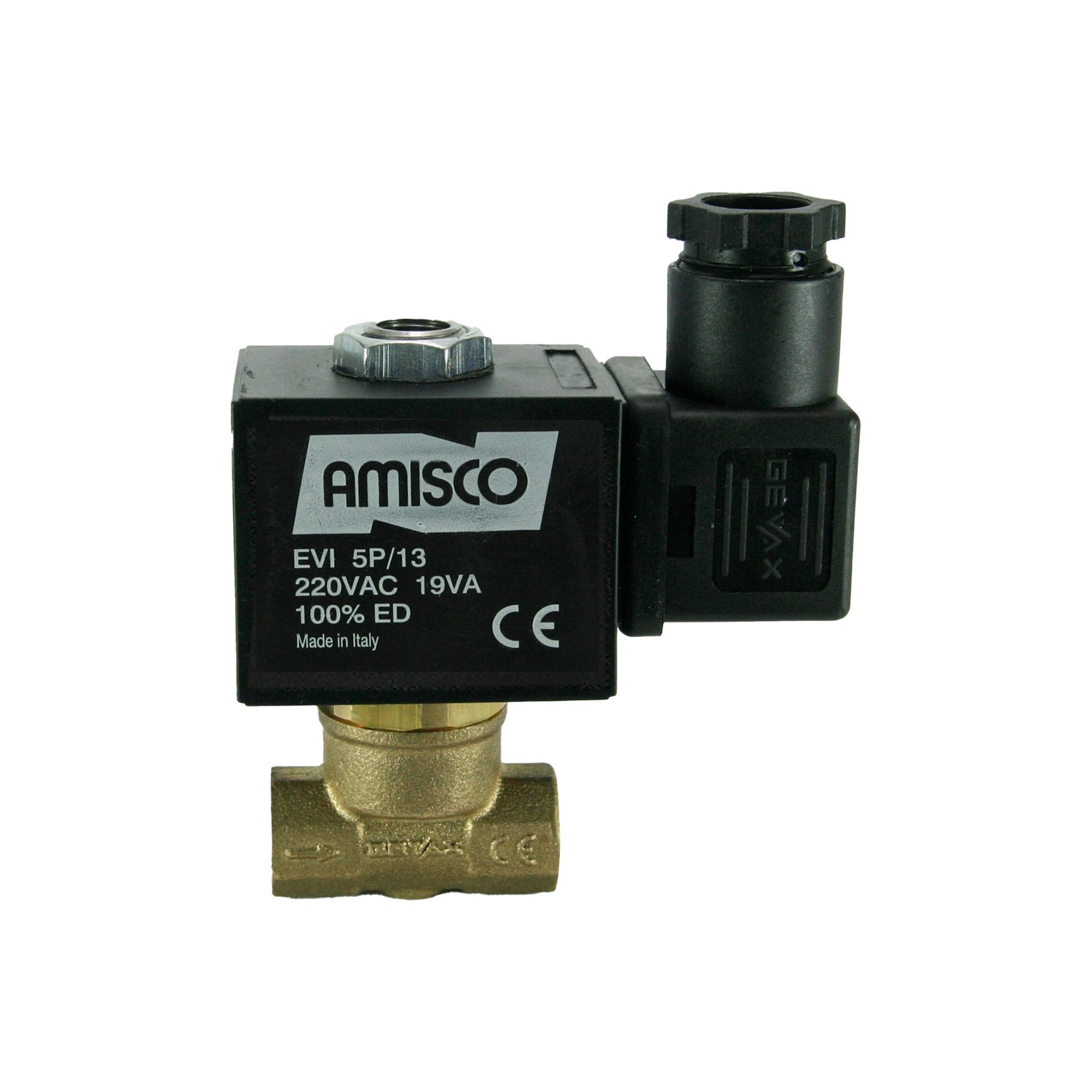

1/4" Solenoid Valve N.C. 3/2 Ways Direct Acting NBR 0 - 10 Bar 220V AC 19 VA
The prominent features of the brass body normally closed general purpose solenoid valve you are reviewing: Mini body, economic series. Air, Vacuum Recommended for use in applications such as etc. Zero Differantial Pressure, Pneumatic works on systems. The usage area where the product is frequently preferred is; Automotive, Textile, Compressor, Machining Process.
Technical specifications
18 fields- Valve Type
- General Purpose Valves
- Connection Size
- 1/4"
- Position
- Normally Closed
- Operating Principle
- Direct Acting
- Ways
- 3/2
- Seal & Diaphragm
- NBR
- Minimum Pressure (bar)
- 0
- Maximum Pressure (bar)
- 10
- Orifice Size (mm)
- 1.5
- Temperature (°C)
- -10°C +80°C
- Coil Brand
- Amisco
- Coil Voltage
- 220V AC
- Coil Power
- 19 VA
- Coil Type
- TP4
- KV Value
- 1 l/min
- Body Material
- Brass
- Body Code
- 20WD
- Product Weight (kg.)
- 0.335
