Stock code1401-ADVD040-060-230AC

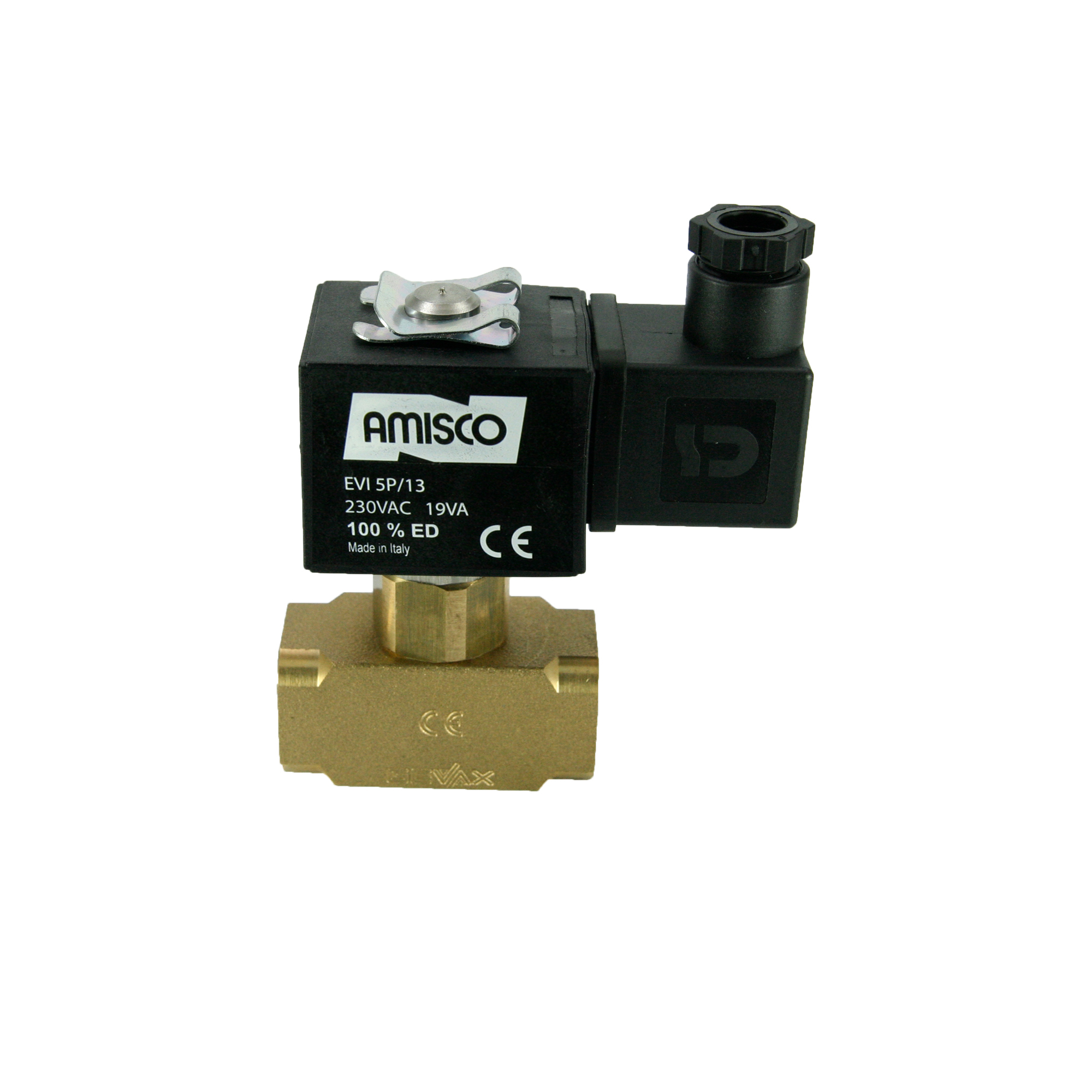

1/2" Solenoid Valve N.O. Servo Direct Acting FKM 0 - 40 Bar 230V AC 19 VA
The prominent features of the brass body normally opened general purpose solenoid valve you are reviewing: Large orifice, high flow rate. Air, Water, Gas, Hot Water Recommended for use in applications such as etc. Zero Differantial Pressure, High Differential Pressure works on systems. The usage area where the product is frequently preferred is; Automotive, Textile, Irrigation, Cooling, Sawing Machines, Machining Process, Renewable Energy.
Technical specifications
18 fields- Valve Type
- General Purpose Valves
- Connection Size
- 1/2"
- Position
- Normally Open
- Operating Principle
- Direct Acting
- Ways
- 2/2
- Seal & Diaphragm
- FKM
- Minimum Pressure (bar)
- 0
- Maximum Pressure (bar)
- 40
- Orifice Size (mm)
- 6
- Temperature (掳C)
- -10掳C +150掳C
- Coil Brand
- Amisco
- Coil Voltage
- 230V AC
- Coil Power
- 19 VA
- Coil Type
- TP4
- KV Value
- 10 l/min
- Body Material
- Brass
- Body Code
- 72BH
- Product Weight (kg.)
- 0.485
