Stock code1411-KDNC020-110-24DC

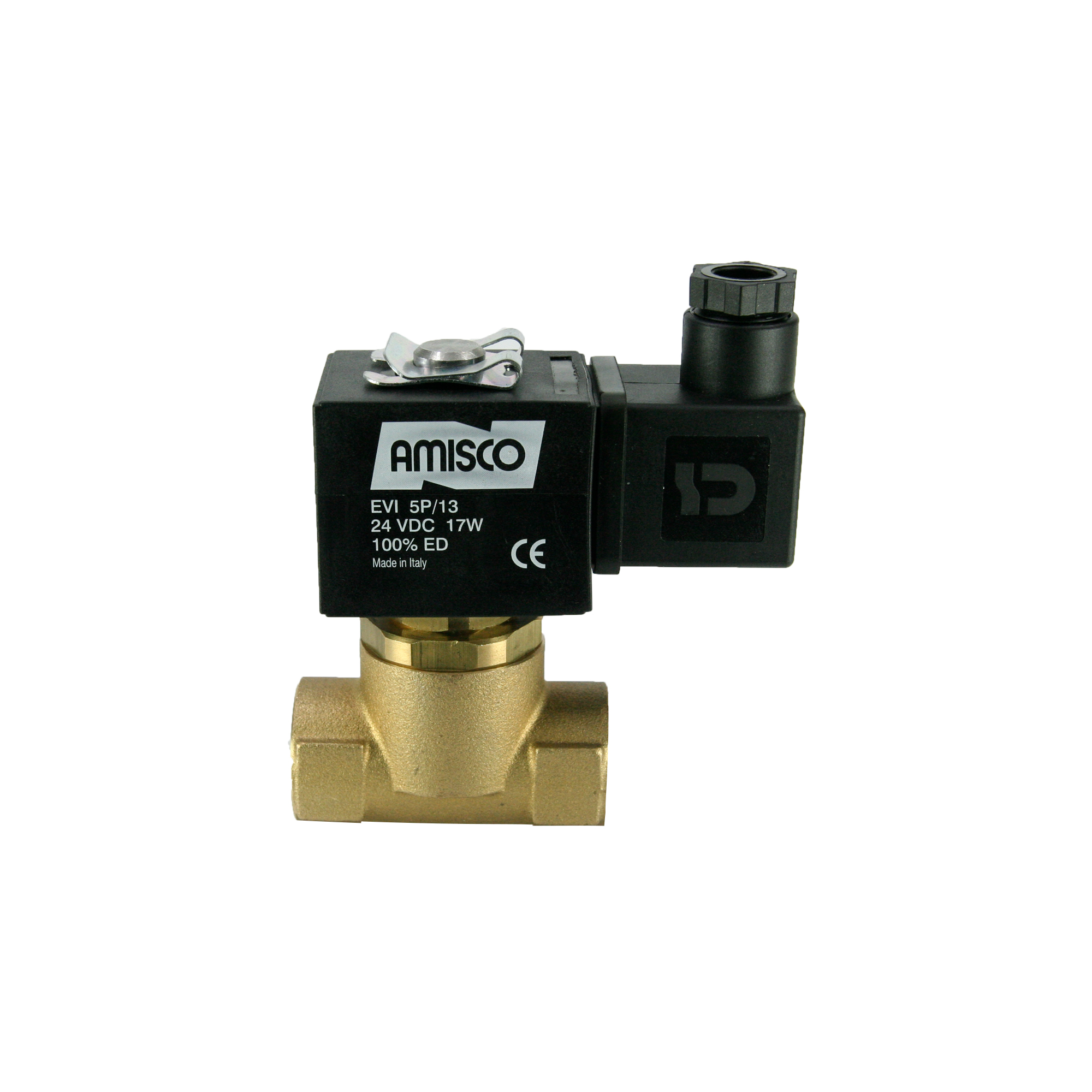

3/8" Solenoid Valve N.C. Servo Pilot Operated Direct Acting NBR 0.1 - 20 Bar 24V DC 17 W
The prominent features of the brass body normally closed general purpose solenoid valve you are reviewing: Diaphragm type, large orifice, high flow rate. Air, Water, Gas, Chemical Recommended for use in applications such as etc. Zero Differantial Pressure, High Differential Pressure works on systems. The usage area where the product is frequently preferred is; Automotive, Textile, Irrigation, Cooling, Sawing Machines, Machining Process, Renewable Energy.
Technical specifications
18 fields- Valve Type
- General Purpose Valves
- Connection Size
- 3/8"
- Position
- Normally Closed
- Operating Principle
- Direct Acting
- Ways
- 2/2
- Seal & Diaphragm
- NBR
- Minimum Pressure (bar)
- 0.1
- Maximum Pressure (bar)
- 20
- Orifice Size (mm)
- 11
- Temperature (掳C)
- -10掳C +80掳C
- Coil Brand
- Amisco
- Coil Voltage
- 24V DC
- Coil Power
- 17 W
- Coil Type
- TP4
- KV Value
- 25 l/min
- Body Material
- Brass
- Body Code
- 02BF
- Product Weight (kg.)
- 0.525
