Stock code1501-KHNF008-250-12DC

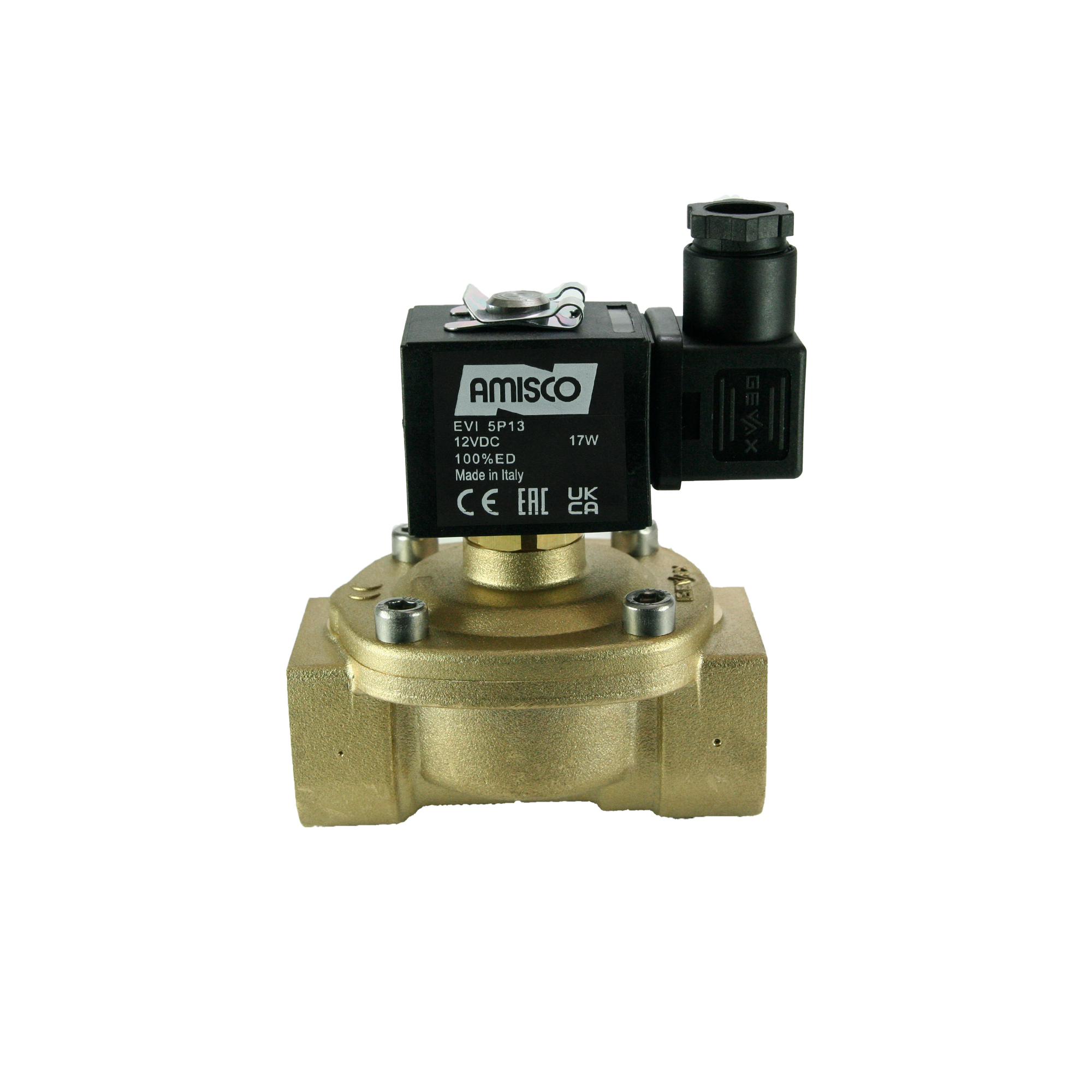

1" Solenoid Valve N.C. Vacuum Assisted Lift Diaphragm Controlled NBR -1 - 8 Bar 12V DC 17 W
The prominent features of the brass body normally closed vacuum solenoid valve you are reviewing: High flow capacity. Vacuum Recommended for use in applications such as etc. Zero Differantial Pressure works on systems. The usage area where the product is frequently preferred is; Automotive, Textile, Agricultural, Wending Machines, Machining Process, Renewable Energy, Recycling, Water Treatment, Packaging machines.
Technical specifications
18 fields- Valve Type
- Vacuum Valves
- Connection Size
- 1"
- Position
- Normally Closed
- Operating Principle
- Hung Diaphragm Type
- Ways
- 2/2
- Seal & Diaphragm
- NBR
- Minimum Pressure (bar)
- -1
- Maximum Pressure (bar)
- 8
- Orifice Size (mm)
- 25
- Temperature (掳C)
- -10掳C +80掳C
- Coil Brand
- Amisco
- Coil Voltage
- 12V DC
- Coil Power
- 17 W
- Coil Type
- TP4
- KV Value
- 135 l/min
- Body Material
- Brass
- Body Code
- 02VO
- Product Weight (kg.)
- 1.015
