Stock code1702-KDV0010-015-220AC

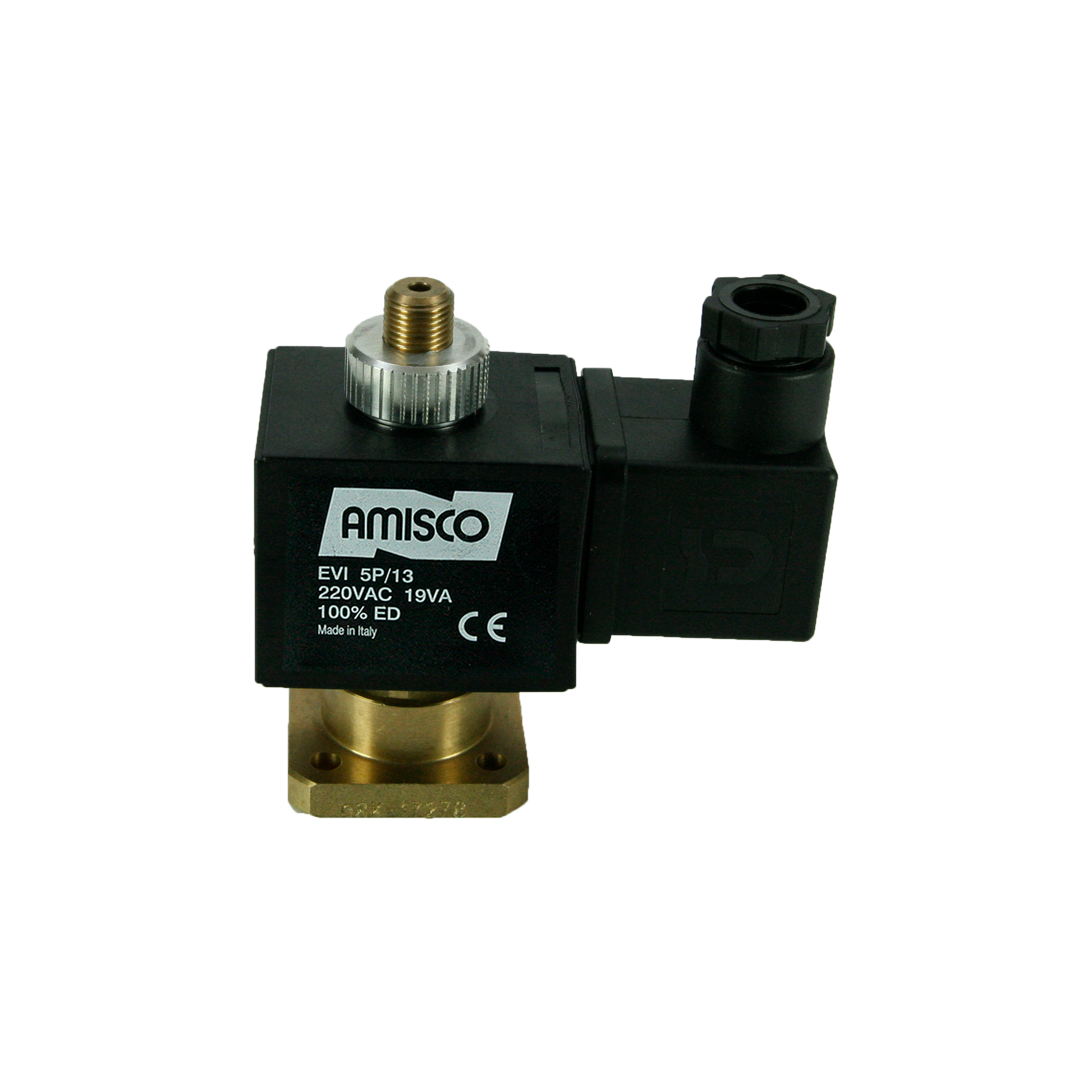

Solenoid Valve N.C. 3/2 Ways Pad Mounting FKM 0 - 10 Bar 220V AC 19 VA
The prominent features of the brass body normally closed pad mounting solenoid valve you are reviewing: Can be used independently or as a group valve mounted on a manifold plate. Air, Vacuum Recommended for use in applications such as etc. Pneumatic works on systems. The usage area where the product is frequently preferred is; Automotive, Textile, Compressor, Machining Process.
Technical specifications
17 fields- Valve Type
- Plate Valves
- Connection Size
- No thread
- Position
- Normally Closed
- Ways
- 3/2
- Seal & Diaphragm
- FKM
- Minimum Pressure (bar)
- 0
- Maximum Pressure (bar)
- 10
- Orifice Size (mm)
- 1.5
- Temperature (掳C)
- -10掳C +150掳C
- Coil Brand
- Amisco
- Coil Voltage
- 220V AC
- Coil Power
- 19 VA
- Coil Type
- TP4
- KV Value
- 1 l/min
- Body Material
- Brass
- Body Code
- 14K-
- Product Weight (kg.)
- 0.365
