Stock code1711-KBNC020-120-24DC

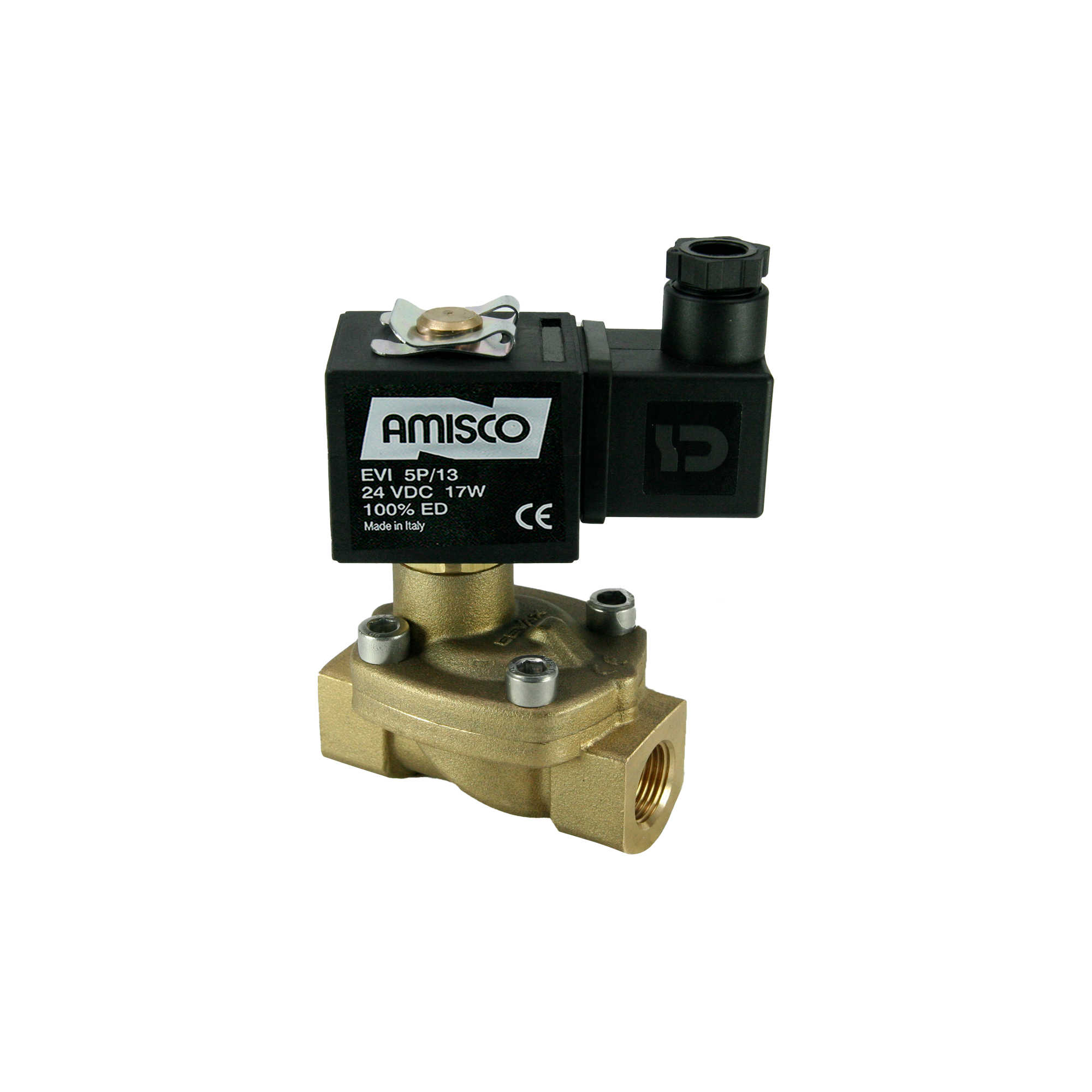

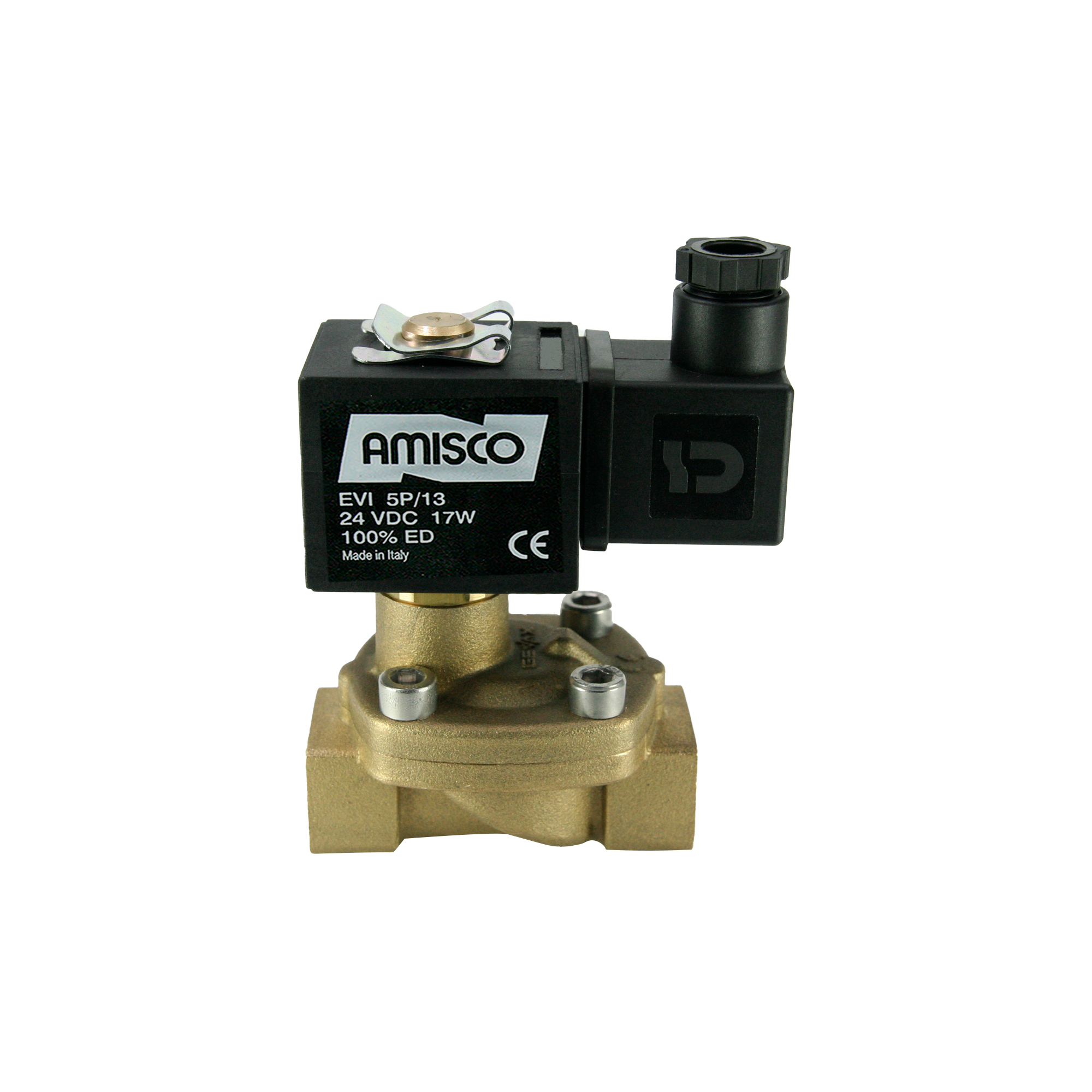

3/8" Solenoid Valve N.C. For Oxygen Pilot Operated NBR 0.1 - 20 Bar 24V DC 17 W
The prominent features of the brass body normally closed general purpose solenoid valve you are reviewing: Special inner components for oxygen applications. Oxygen Recommended for use in applications such as etc. Low power consumption. works on systems. The usage area where the product is frequently preferred is; Automotive, Textile, Renewable Energy, Recycling, Water Treatment.
Technical specifications
18 fields- Valve Type
- General Purpose Valves
- Connection Size
- 3/8"
- Position
- Normally Closed
- Operating Principle
- Pilot Operated
- Ways
- 2/2
- Seal & Diaphragm
- NBR
- Minimum Pressure (bar)
- 0.1
- Maximum Pressure (bar)
- 20
- Orifice Size (mm)
- 12
- Temperature (掳C)
- -10掳C +80掳C
- Coil Brand
- Amisco
- Coil Voltage
- 24V DC
- Coil Power
- 17 W
- Coil Type
- TP4
- KV Value
- 55 l/min
- Body Material
- Brass
- Body Code
- 31AF
- Product Weight (kg.)
- 0.735
