Stock code1731-KDV0010-025-24DC

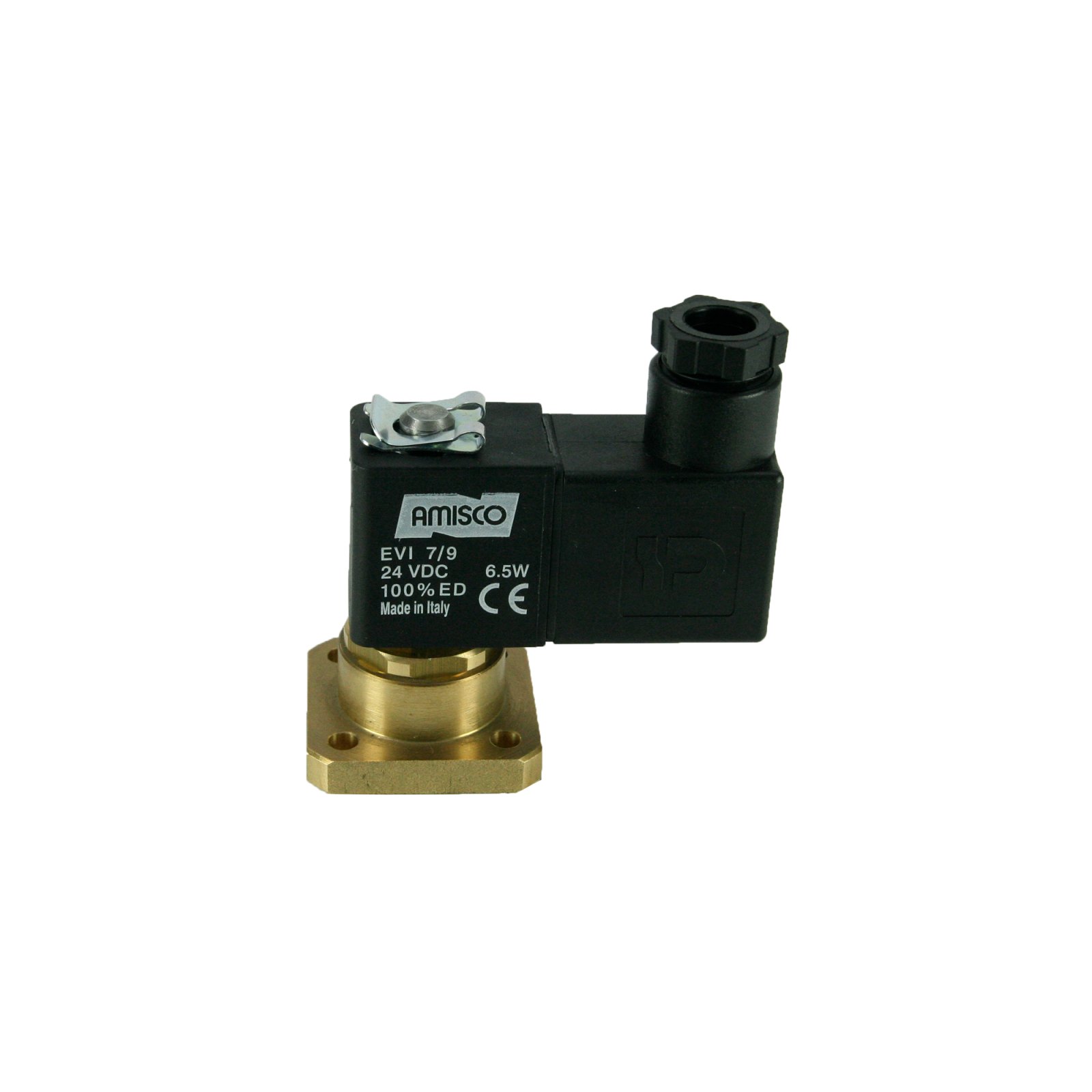

Solenoid Valve N.C. Economical Serie Pilate Direct Acting FKM 0 - 10 Bar 24V DC 6.5 W
The prominent features of the brass body normally closed pad mounting solenoid valve you are reviewing: Can be used independently or as a group valve mounted on a manifold plate, energy-efficient. Air, Water, Gas, Vacuum, Hot Water Recommended for use in applications such as etc. Zero Differantial Pressure works on systems. The usage area where the product is frequently preferred is; Automotive, Textile, Irrigation, Cooling, Compressor, Wending Machines, Machining Process, Renewable Energy.
Technical specifications
18 fields- Valve Type
- Plate Valves
- Connection Size
- No thread
- Position
- Normally Closed
- Operating Principle
- Direct Acting
- Ways
- 2/2
- Seal & Diaphragm
- FKM
- Minimum Pressure (bar)
- 0
- Maximum Pressure (bar)
- 10
- Orifice Size (mm)
- 2.5
- Temperature (°C)
- -10°C +150°C
- Coil Brand
- Amisco
- Coil Voltage
- 24V DC
- Coil Power
- 6.5 W
- Coil Type
- TP6
- KV Value
- 2.85 l/min
- Body Material
- Brass
- Body Code
- 06K-
- Product Weight (kg.)
- 0.195
