Stock code1841-KBHE040-190-12DC

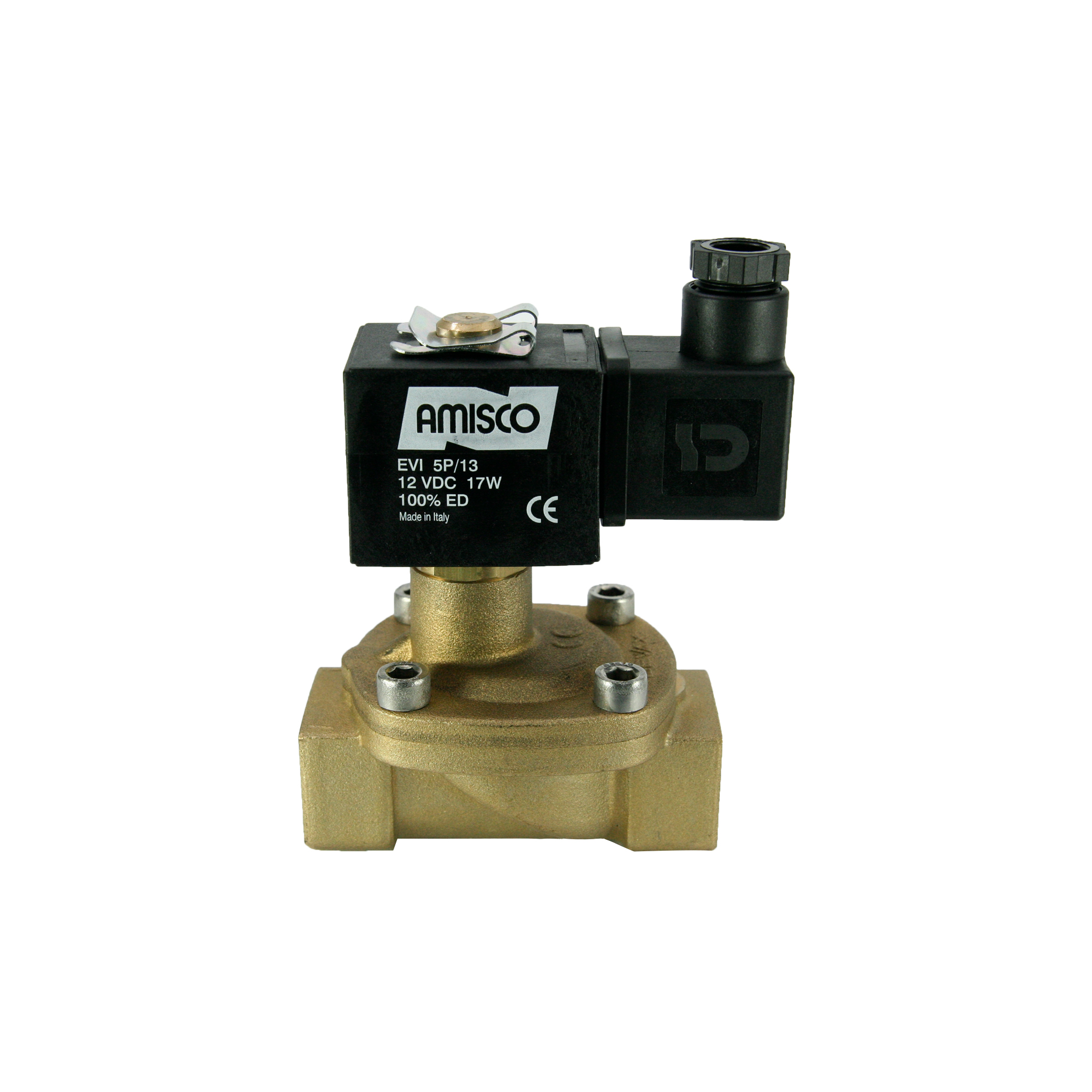

3/4" Solenoid Valve N.C. For Compressor Pilot Operated HNBR 0.5 - 40 Bar 12V DC 17 W
The prominent features of the brass body normally closed general purpose solenoid valve you are reviewing: Equipped with disk diaphragm. Air, Water, Gas Recommended for use in applications such as etc. High Differential Pressure works on systems. The usage area where the product is frequently preferred is; Automotive, Textile, Irrigation, Cooling, Compressor, Washing Machines, Machining Process, Renewable Energy, Recycling, Water Treatment, Paint Industry.
Technical specifications
18 fields- Valve Type
- General Purpose Valves
- Connection Size
- 3/4"
- Position
- Normally Closed
- Operating Principle
- Pilot Operated
- Ways
- 2/2
- Seal & Diaphragm
- HNBR
- Minimum Pressure (bar)
- 0.5
- Maximum Pressure (bar)
- 40
- Orifice Size (mm)
- 19
- Temperature (掳C)
- -10掳C +120掳C
- Coil Brand
- Amisco
- Coil Voltage
- 12V DC
- Coil Power
- 17 W
- Coil Type
- TP4
- KV Value
- 70 l/min
- Body Material
- Brass
- Body Code
- 36AL
- Product Weight (kg.)
- 0.865
