Stock code1881-ADEA010-025-24DC

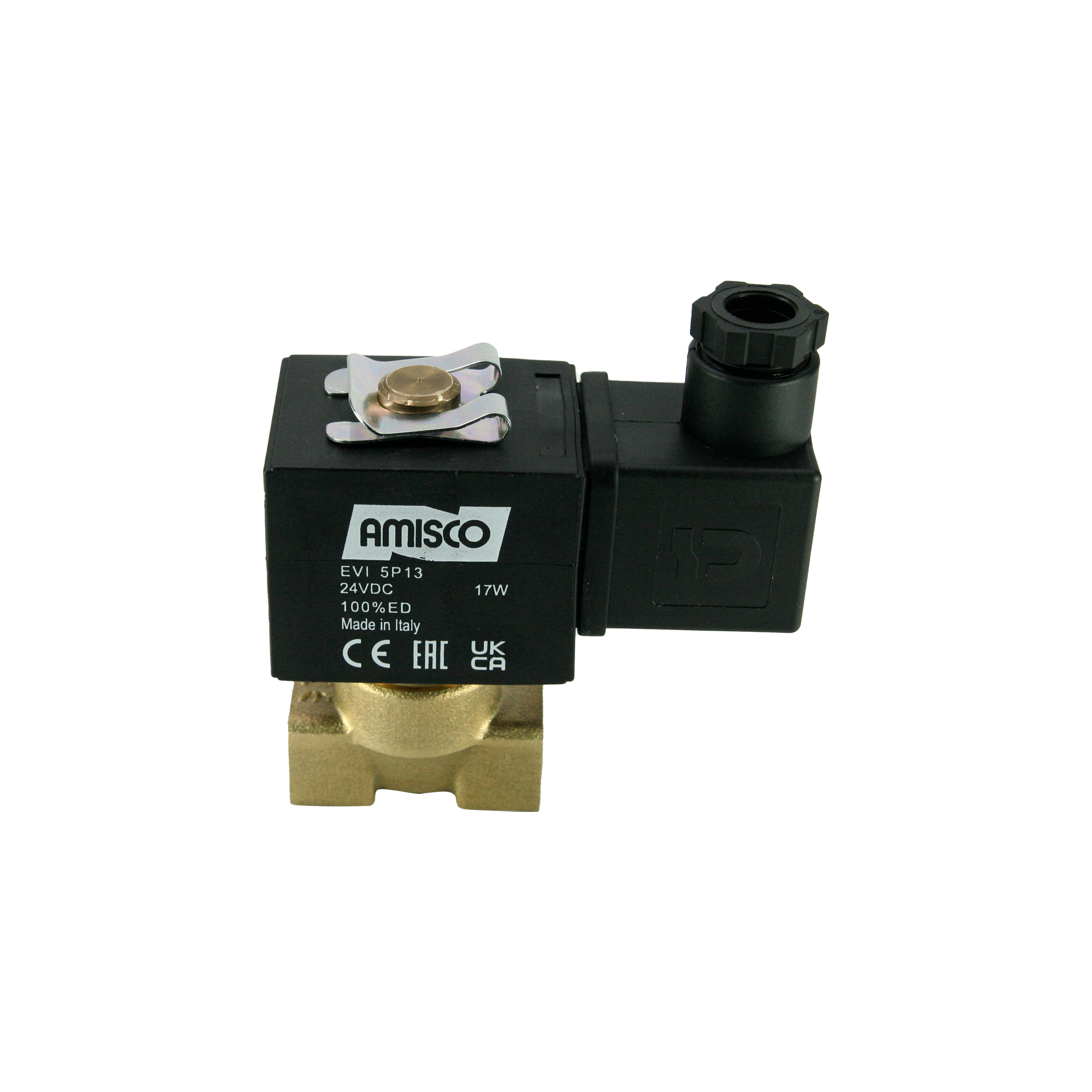

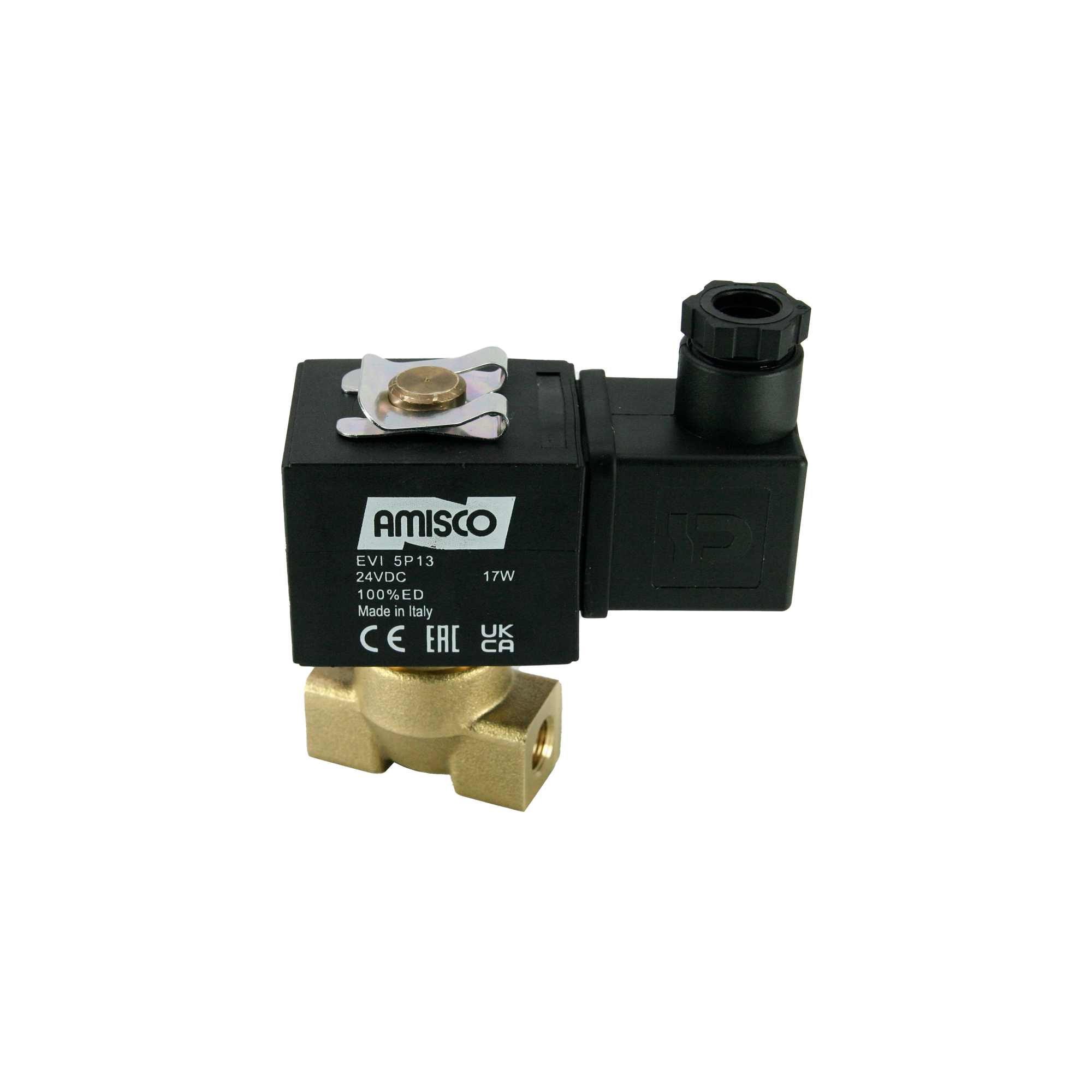

1/8" Solenoid Valve N.O. For Oxygen Direct Acting EPDM 0 - 10 Bar 24V DC 17 W
The prominent features of the brass body normally opened general purpose solenoid valve you are reviewing: Special inner components for oxygen applications. Oxygen Recommended for use in applications such as etc. Zero Differantial Pressure works on systems. The usage area where the product is frequently preferred is; Automotive, Textile, Renewable Energy, Recycling, Water Treatment.
Technical specifications
18 fields- Valve Type
- General Purpose Valves
- Connection Size
- 1/8"
- Position
- Normally Open
- Operating Principle
- Direct Acting
- Ways
- 2/2
- Seal & Diaphragm
- EPDM
- Minimum Pressure (bar)
- 0
- Maximum Pressure (bar)
- 10
- Orifice Size (mm)
- 2.5
- Temperature (掳C)
- -10掳C +140掳C
- Coil Brand
- Amisco
- Coil Voltage
- 24V DC
- Coil Power
- 17 W
- Coil Type
- TP4
- KV Value
- 2.85 l/min
- Body Material
- Brass
- Body Code
- 77AA
- Product Weight (kg.)
- 0.395
