Stock code1901-KBVH010-400-G230AC

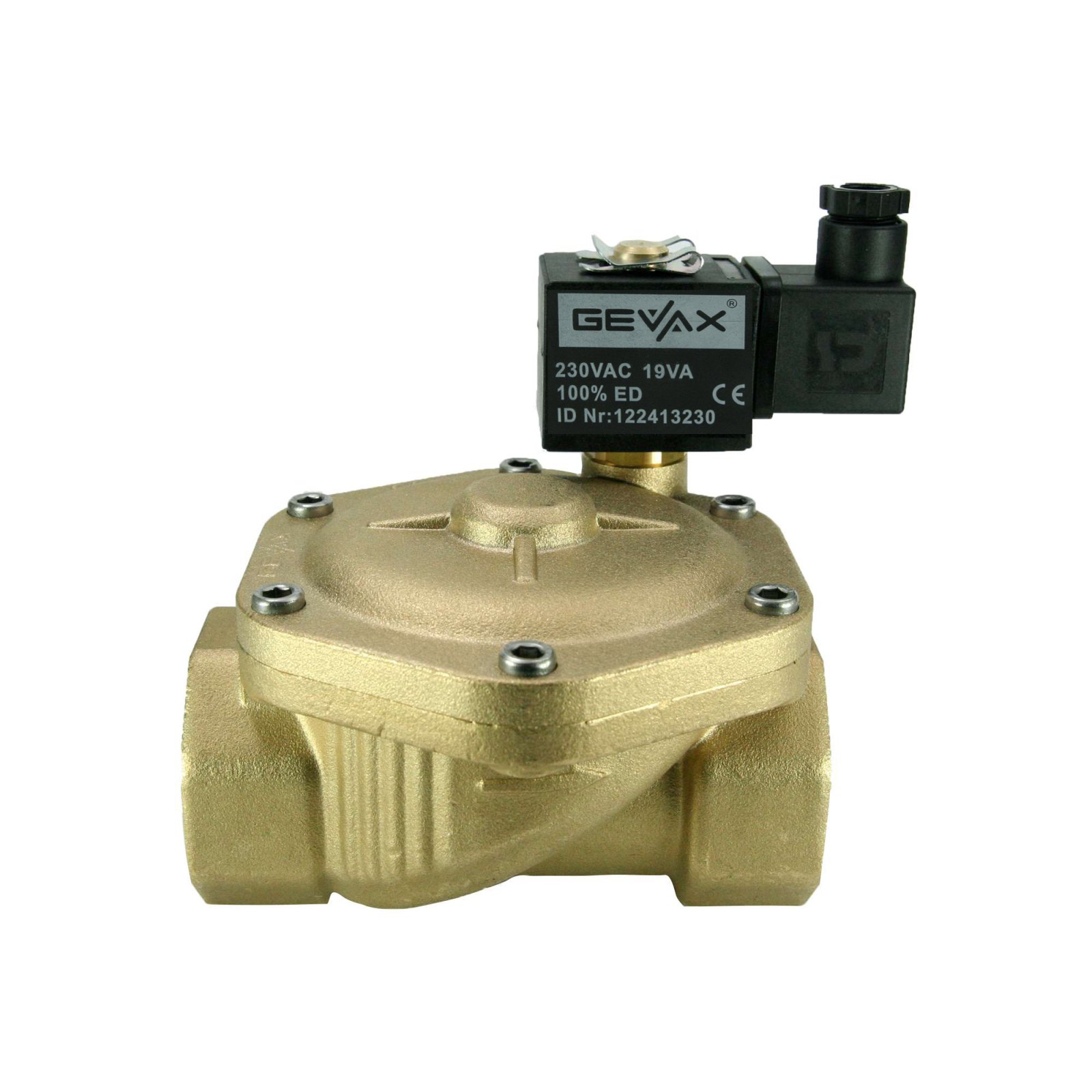

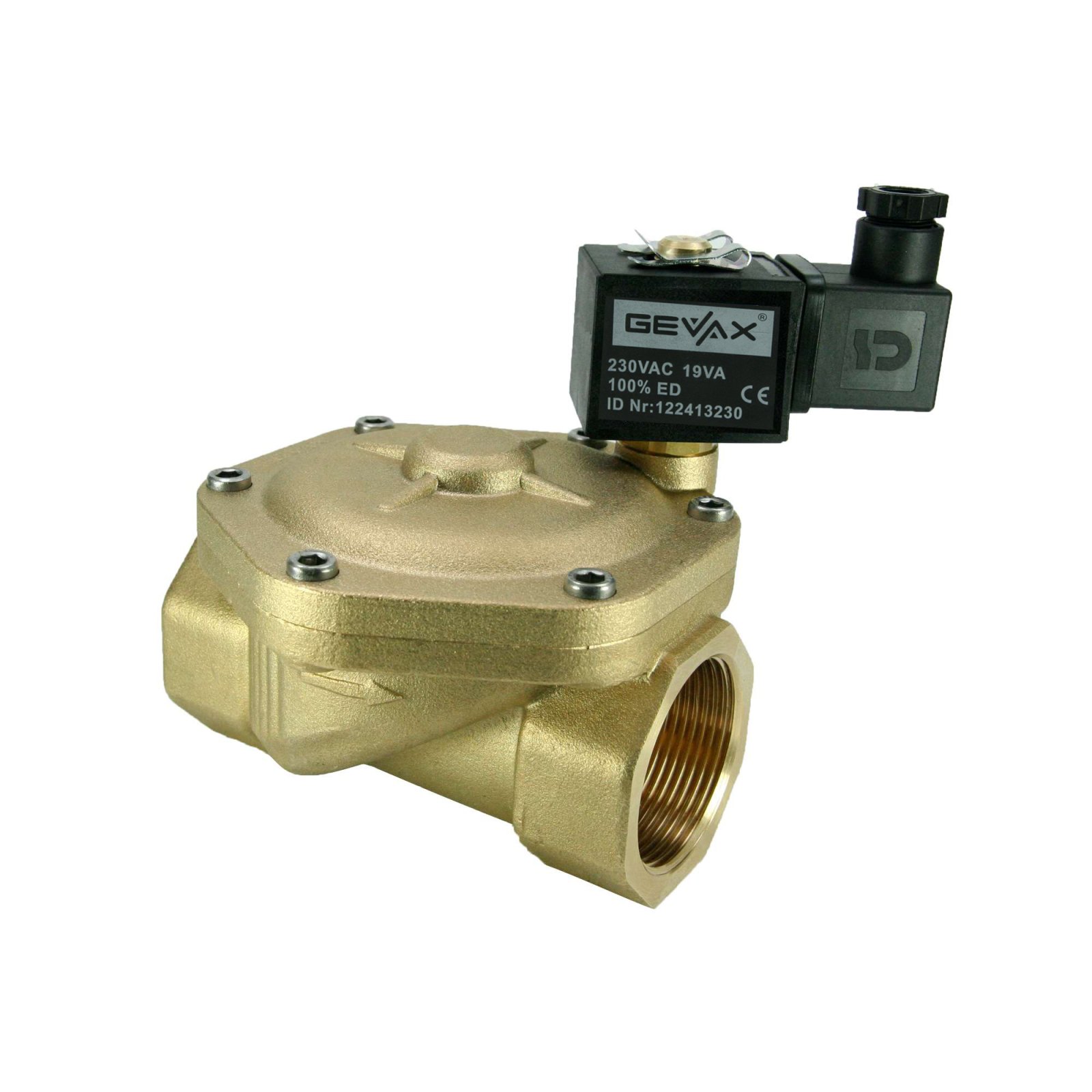

1 1/2" Solenoid Valve N.C. Pilot Operated FKM 0.5 - 10 Bar G230V AC 19 VA
The prominent features of the brass body normally closed general purpose solenoid valve you are reviewing: Diaphragm type, wide application range, high flow rate, wide coil options. Air, Water, Gas, Chemical, Hot Water, Oils, Diesel, LPG & LNG Recommended for use in applications such as etc. The usage area where the product is frequently preferred is; Automotive, Textile, Irrigation, Cooling, Lubrication, Compressor, Washing Machines, Machining Process, Renewable Energy, Recycling, Water Treatment, Paint Industry.
Technical specifications
18 fields- Valve Type
- General Purpose Valves
- Connection Size
- 1 1/2"
- Position
- Normally Closed
- Operating Principle
- Pilot Operated
- Ways
- 2/2
- Seal & Diaphragm
- FKM
- Minimum Pressure (bar)
- 0.5
- Maximum Pressure (bar)
- 10
- Orifice Size (mm)
- 40
- Temperature (°C)
- -10°C +150°C
- Coil Brand
- GEVAX
- Coil Voltage
- 230V AC
- Coil Power
- 19 VA
- Coil Type
- TP4
- KV Value
- 390 l/min
- Body Material
- Brass
- Body Code
- 05AU
- Product Weight (kg.)
- 2.765
