Stock code1901-KDED006-050-230AC

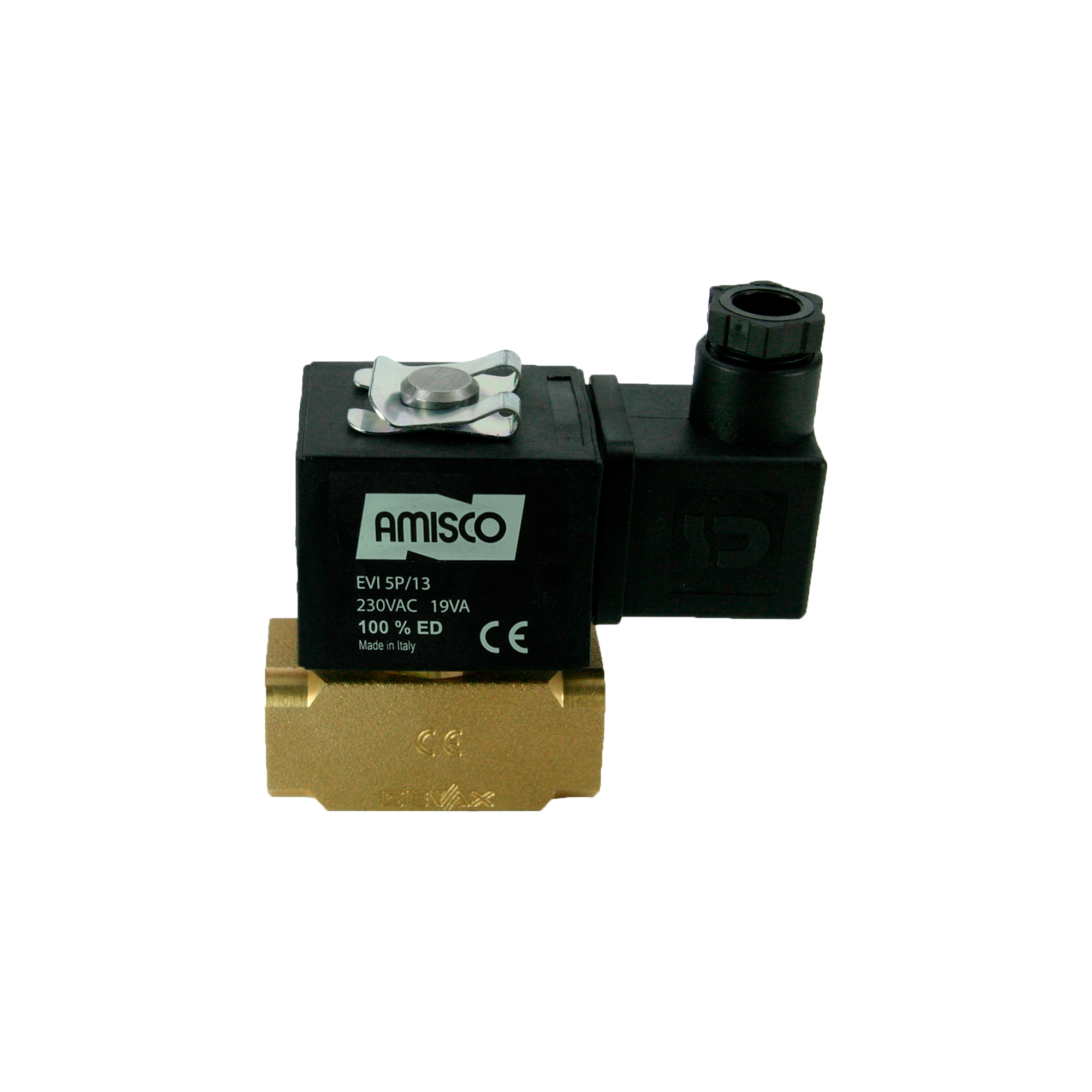

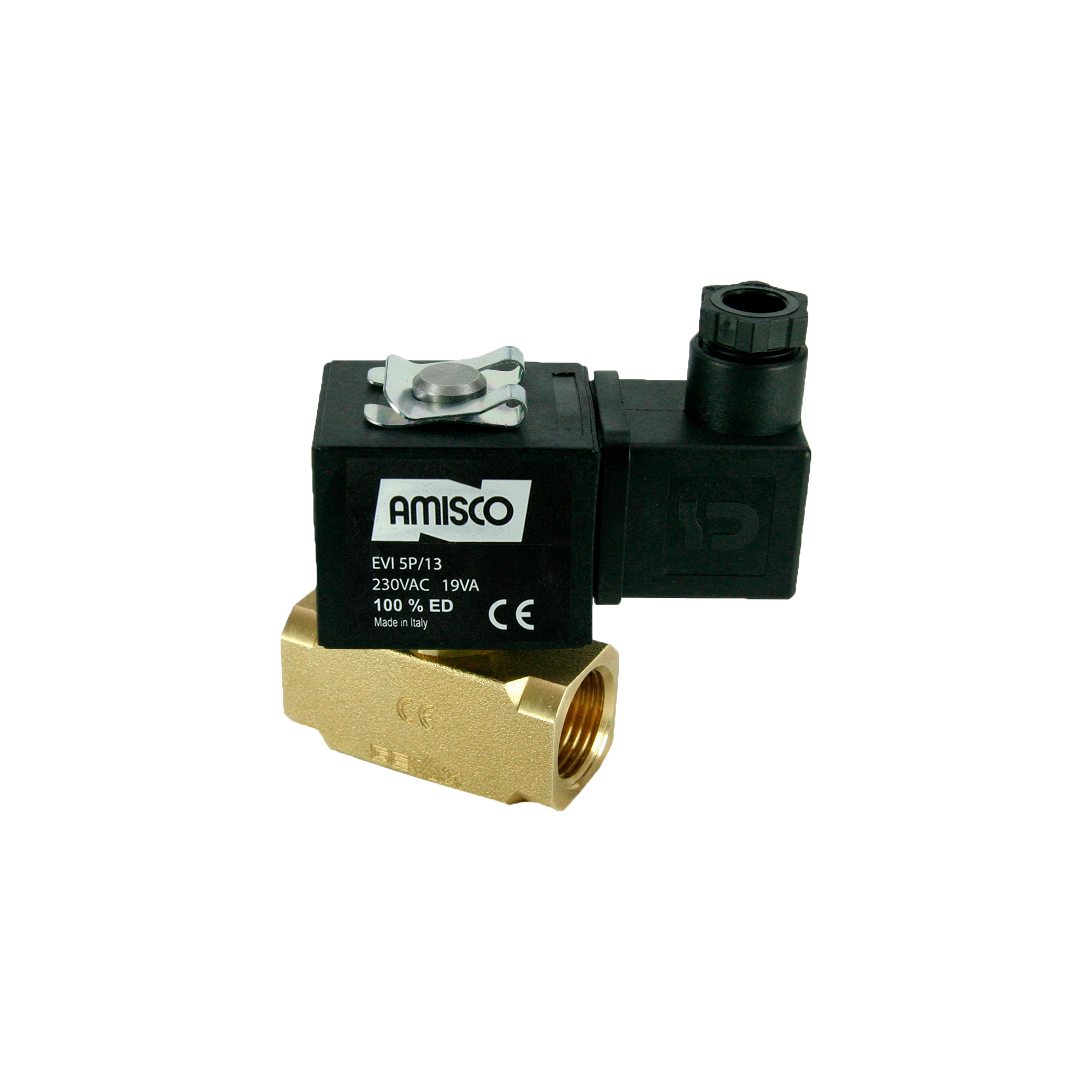

1/2" Solenoid Valve N.C. Direct Acting EPDM 0 - 6 Bar 230V AC 19 VA
The prominent features of the brass body normally closed general purpose solenoid valve you are reviewing: Large orifice, high flow rate, wide application range. Air, Water, Gas, Vacuum, Chemical, Hot Water Recommended for use in applications such as etc. Zero Differantial Pressure works on systems. The usage area where the product is frequently preferred is; Automotive, Textile, Food, Agricultural, Irrigation, Cooling, Compressor, Building Automation, Wending Machines, Washing Machines, Sawing Machines, Machining Process, Renewable Energy, Recycling, Water Treatment, Paint Industry.
Technical specifications
18 fields- Valve Type
- General Purpose Valves
- Connection Size
- 1/2"
- Position
- Normally Closed
- Operating Principle
- Direct Acting
- Ways
- 2/2
- Seal & Diaphragm
- EPDM
- Minimum Pressure (bar)
- 0
- Maximum Pressure (bar)
- 6
- Orifice Size (mm)
- 5
- Temperature (掳C)
- -10掳C +140掳C
- Coil Brand
- Amisco
- Coil Voltage
- 230V AC
- Coil Power
- 19 VA
- Coil Type
- TP4
- KV Value
- 8 l/min
- Body Material
- Brass
- Body Code
- 25AH
- Product Weight (kg.)
- 0.445
