Stock code1901-KDNA010-020-12AC

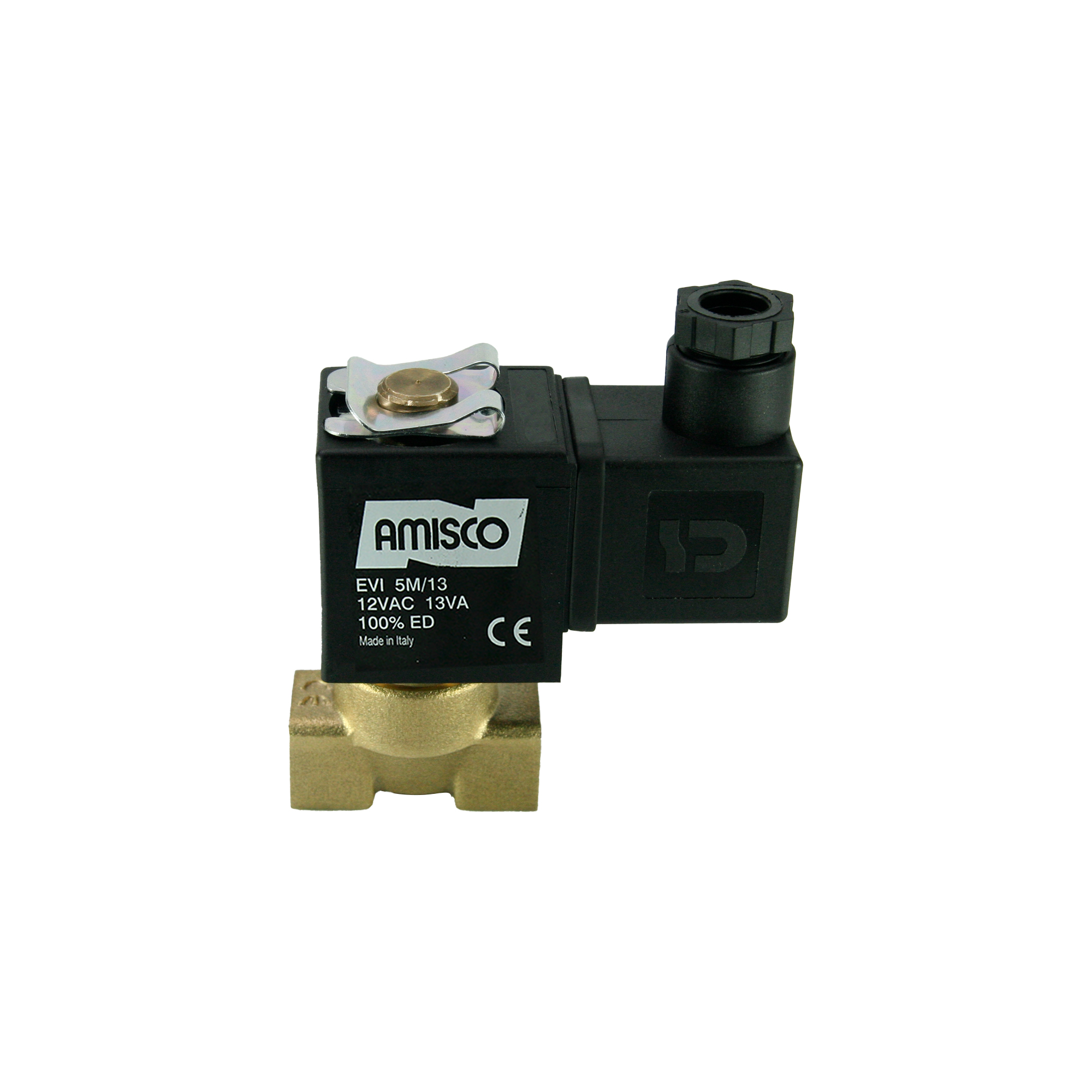

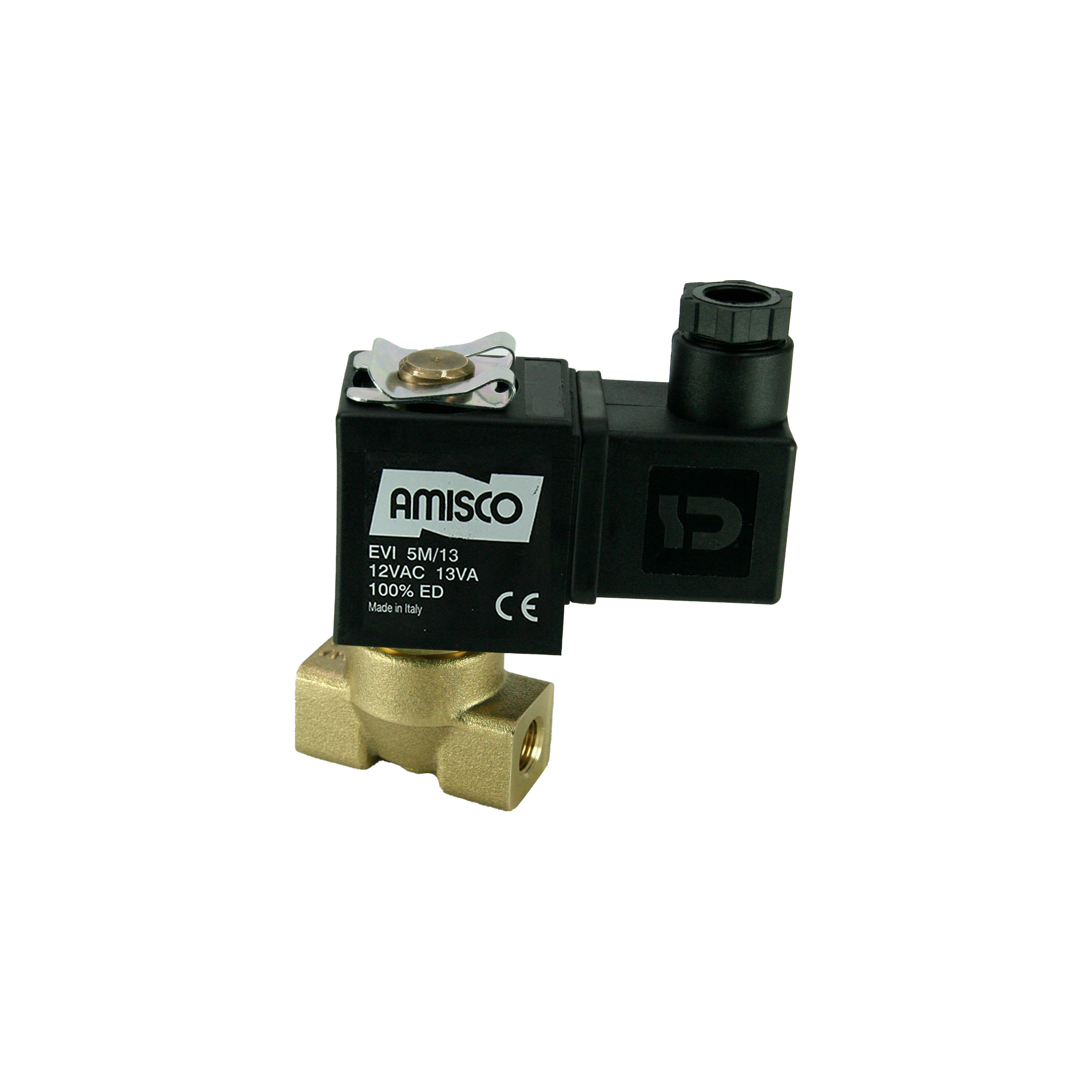

1/8" Solenoid Valve N.C. Direct Acting NBR 0 - 10 Bar 12V AC 13 VA
The prominent features of the brass body normally closed general purpose solenoid valve you are reviewing: Wide application range, wide coil options. Air, Water, Gas, Vacuum, Chemical, Oils, Diesel, LPG & LNG Recommended for use in applications such as etc. Zero Differantial Pressure works on systems. The usage area where the product is frequently preferred is; Automotive, Textile, Food, Agricultural, Irrigation, Cooling, Lubrication, Compressor, Building Automation, Wending Machines, Washing Machines, Sawing Machines, Machining Process, Renewable Energy, Recycling, Water Treatment, Paint Industry.
Technical specifications
18 fields- Valve Type
- General Purpose Valves
- Connection Size
- 1/8"
- Position
- Normally Closed
- Operating Principle
- Direct Acting
- Ways
- 2/2
- Seal & Diaphragm
- NBR
- Minimum Pressure (bar)
- 0
- Maximum Pressure (bar)
- 10
- Orifice Size (mm)
- 2
- Temperature (掳C)
- -10掳C +80掳C
- Coil Brand
- Amisco
- Coil Voltage
- 12V AC
- Coil Power
- 13 VA
- Coil Type
- TP1
- KV Value
- 1.7 l/min
- Body Material
- Brass
- Body Code
- 14AA
- Product Weight (kg.)
- 0.33
