Stock code1901C-KBNF016-250-24DC

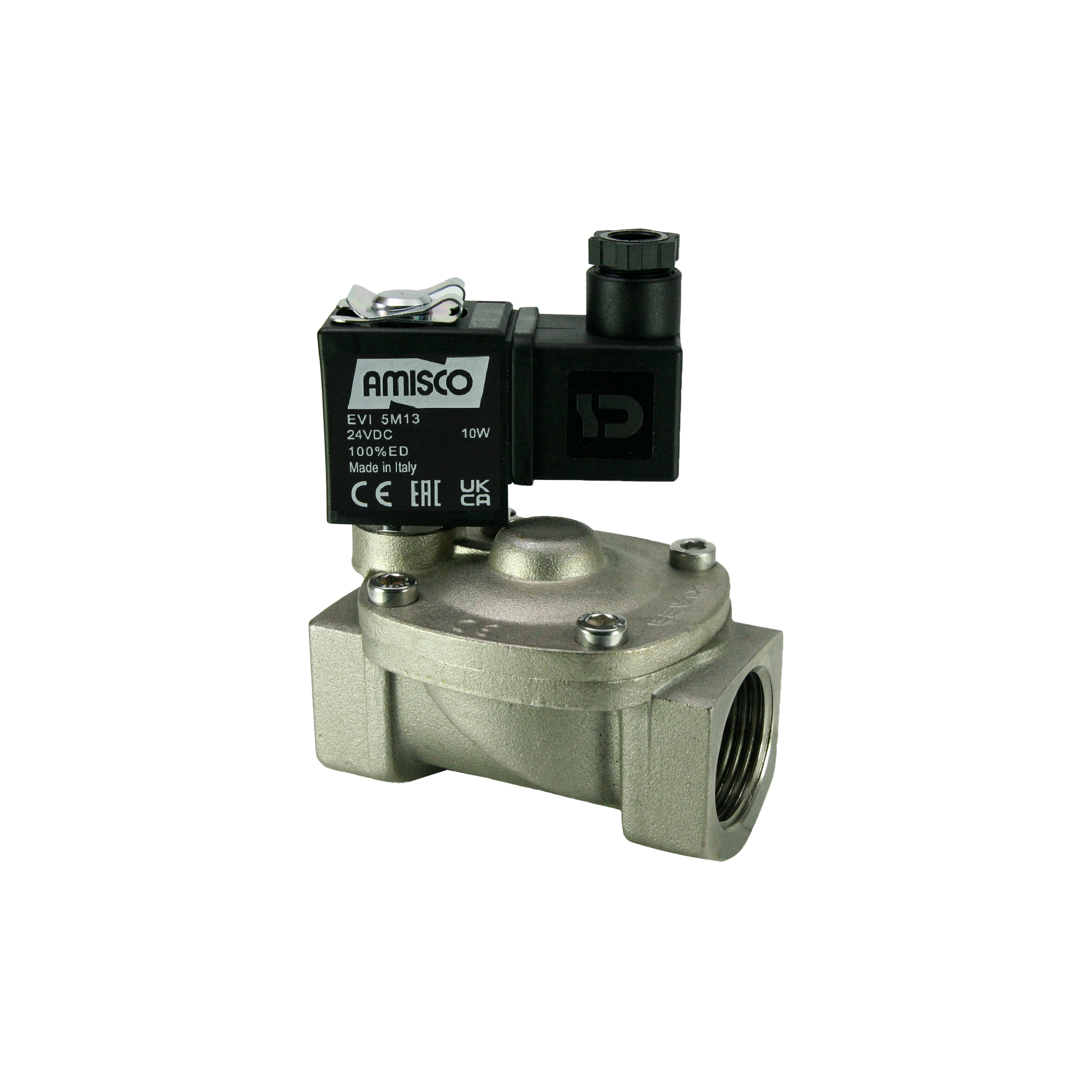

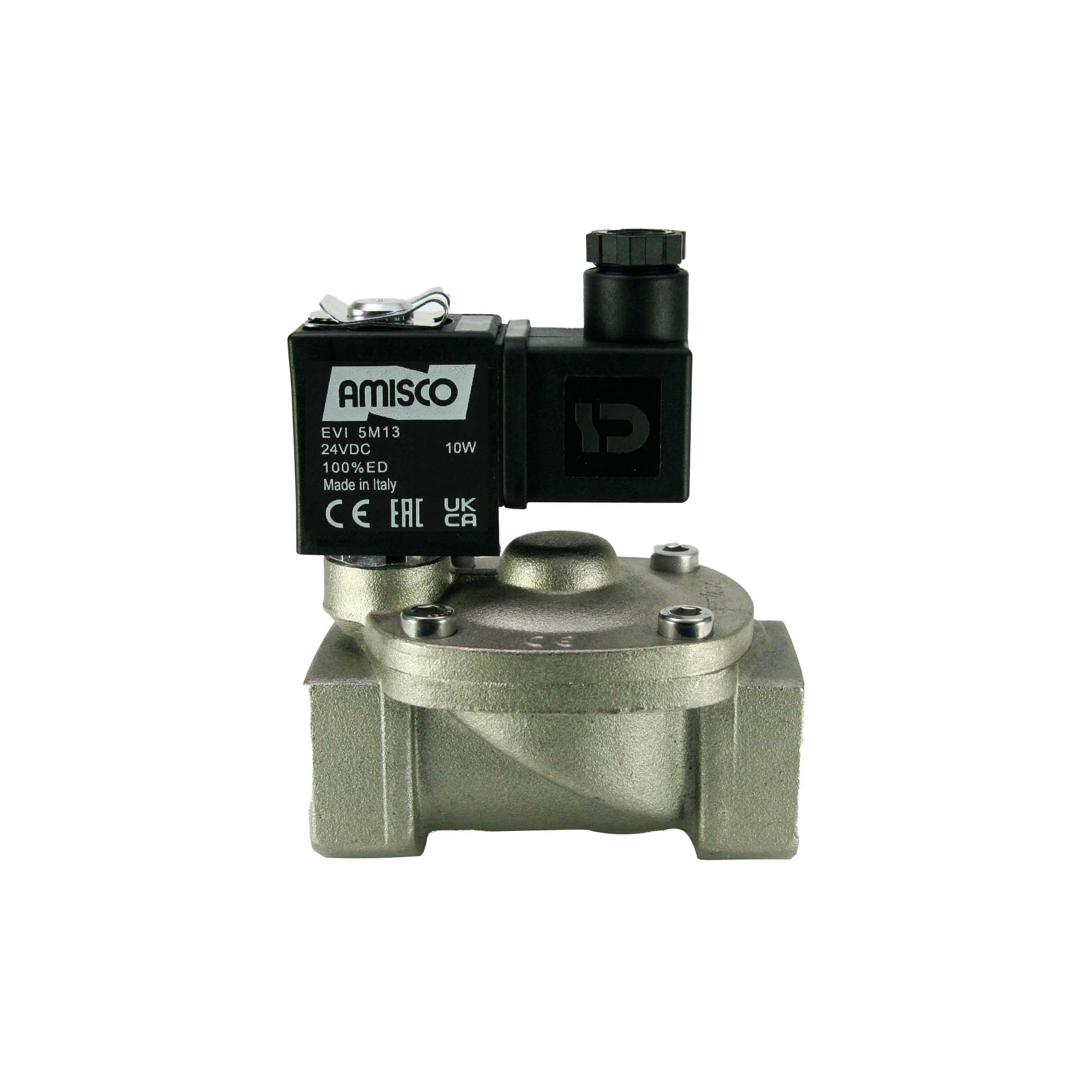

1" Solenoid Valve N.C. Nickel Plated Pilot Operated NBR 0.5 - 16 Bar 24V DC 10 W
The prominent features of the nickel plated body normally closed general purpose solenoid valve you are reviewing: Diaphragm type, wide application range, high flow rate, wide coil options, corrosion-resistant nickel plating. Air, Water, Gas, Chemical Recommended for use in applications such as etc. The usage area where the product is frequently preferred is; Automotive, Textile, Irrigation, Cooling, Compressor, Washing Machines, Machining Process, Renewable Energy, Recycling, Water Treatment, Paint Industry.
Technical specifications
18 fields- Valve Type
- General Purpose Valves
- Connection Size
- 1"
- Position
- Normally Closed
- Operating Principle
- Pilot Operated
- Ways
- 2/2
- Seal & Diaphragm
- NBR
- Minimum Pressure (bar)
- 0.5
- Maximum Pressure (bar)
- 16
- Orifice Size (mm)
- 25
- Temperature (掳C)
- -10掳C +80掳C
- Coil Brand
- Amisco
- Coil Voltage
- 24V DC
- Coil Power
- 10 W
- Coil Type
- TP1
- KV Value
- 180 l/min
- Body Material
- Nickel Plated Brass
- Body Code
- 17AO
- Product Weight (kg.)
- 1.09
