Stock code1902-ABHD016-120-G220AC

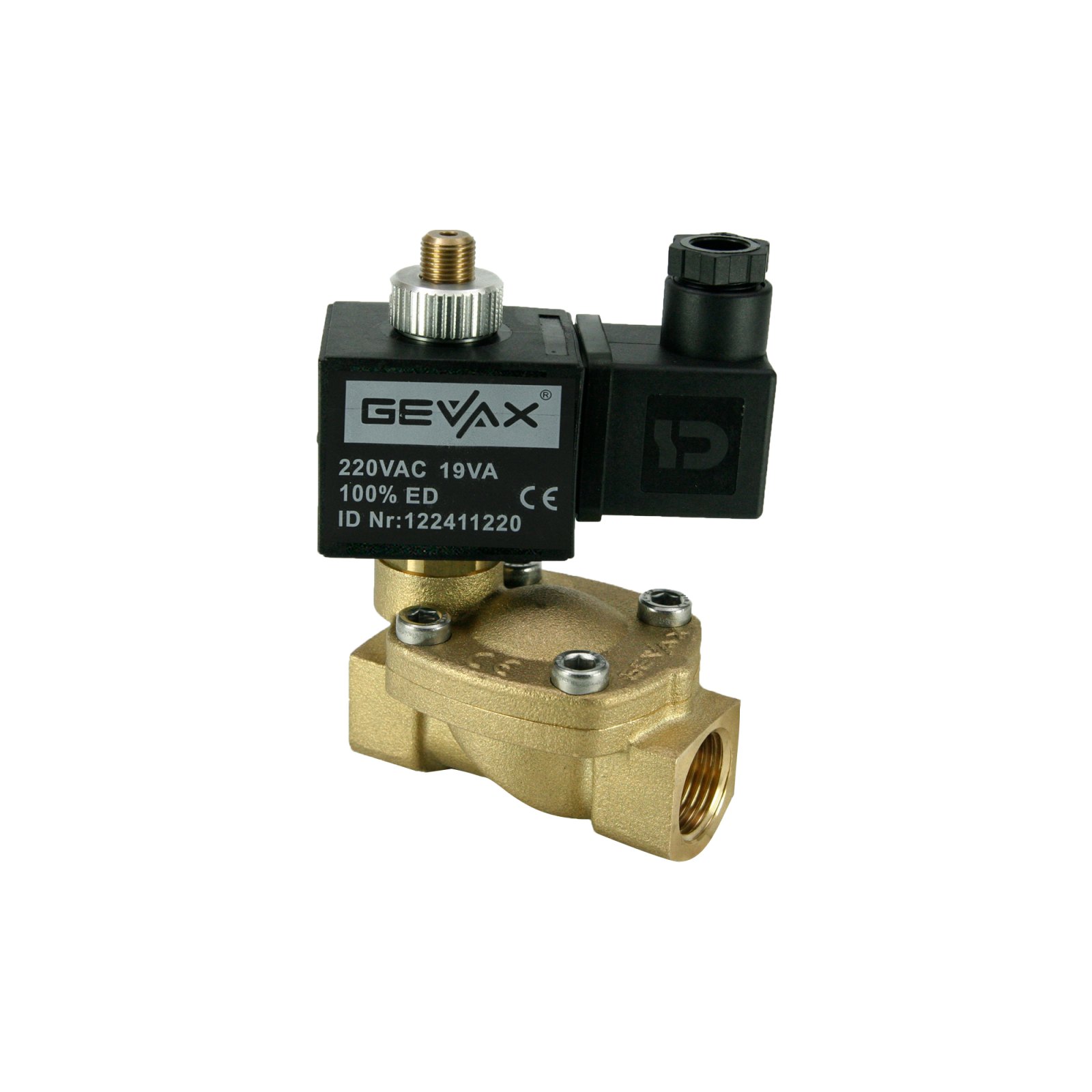

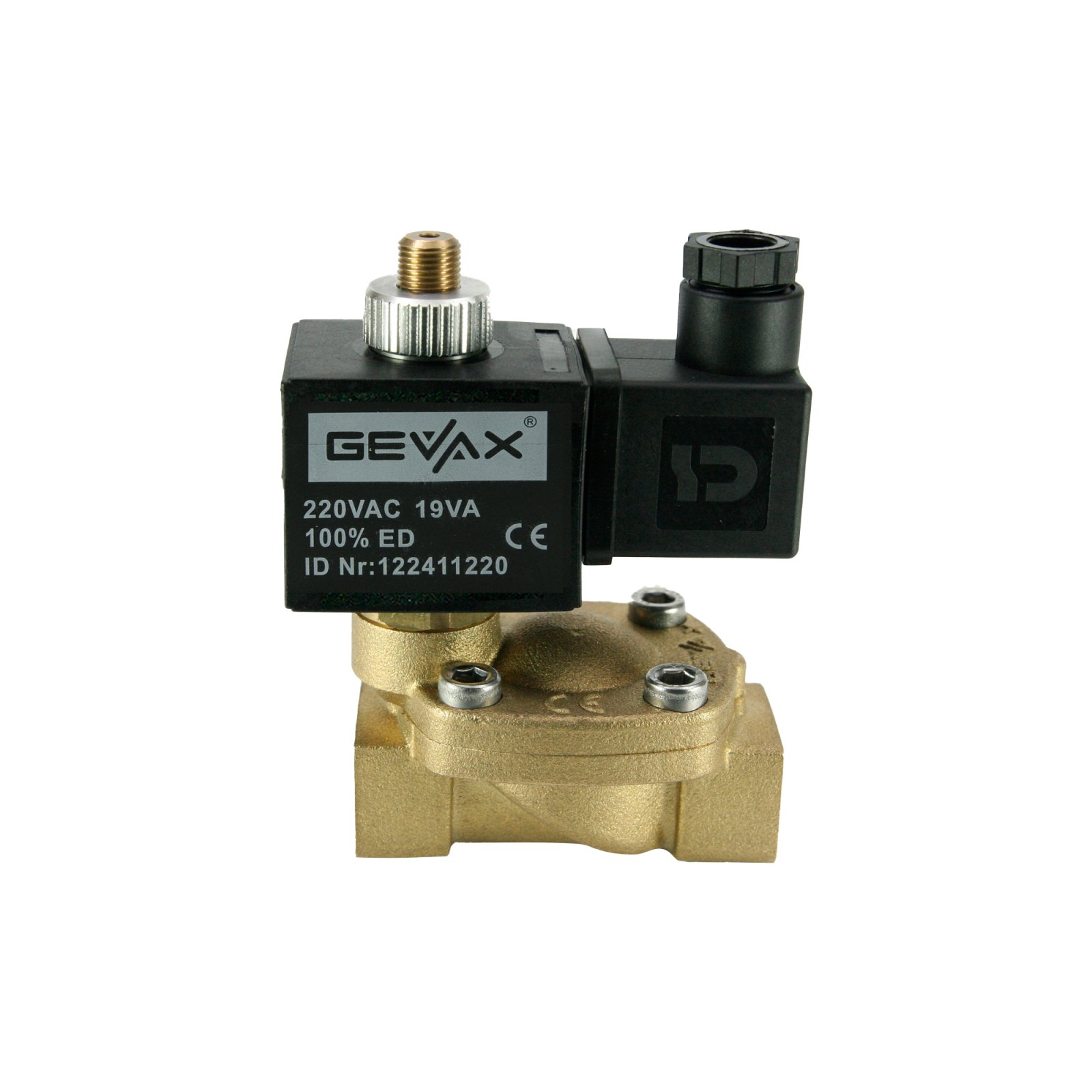

1/2" Solenoid Valve N.O. 3/2 Ways For Compressor Pilot Operated HNBR 0.5 - 16 Bar G220V AC 19 VA
The prominent features of the brass body normally opened general purpose solenoid valve you are reviewing: Diaphragm Air Recommended for use in applications such as etc. Pneumatic works on systems. The usage area where the product is frequently preferred is; Automotive, Textile, Compressor, Machining Process.
Technical specifications
18 fields- Valve Type
- General Purpose Valves
- Connection Size
- 1/2"
- Position
- Normally Open
- Operating Principle
- Pilot Operated
- Ways
- 3/2
- Seal & Diaphragm
- HNBR
- Minimum Pressure (bar)
- 0.5
- Maximum Pressure (bar)
- 16
- Orifice Size (mm)
- 12
- Temperature (°C)
- -10°C +120°C
- Coil Brand
- GEVAX
- Coil Voltage
- 220V AC
- Coil Power
- 19 VA
- Coil Type
- TP4
- KV Value
- 65 l/min
- Body Material
- Brass
- Body Code
- 72WH
- Product Weight (kg.)
- 0.665
