Stock code1902-KDEA007-018-24DC

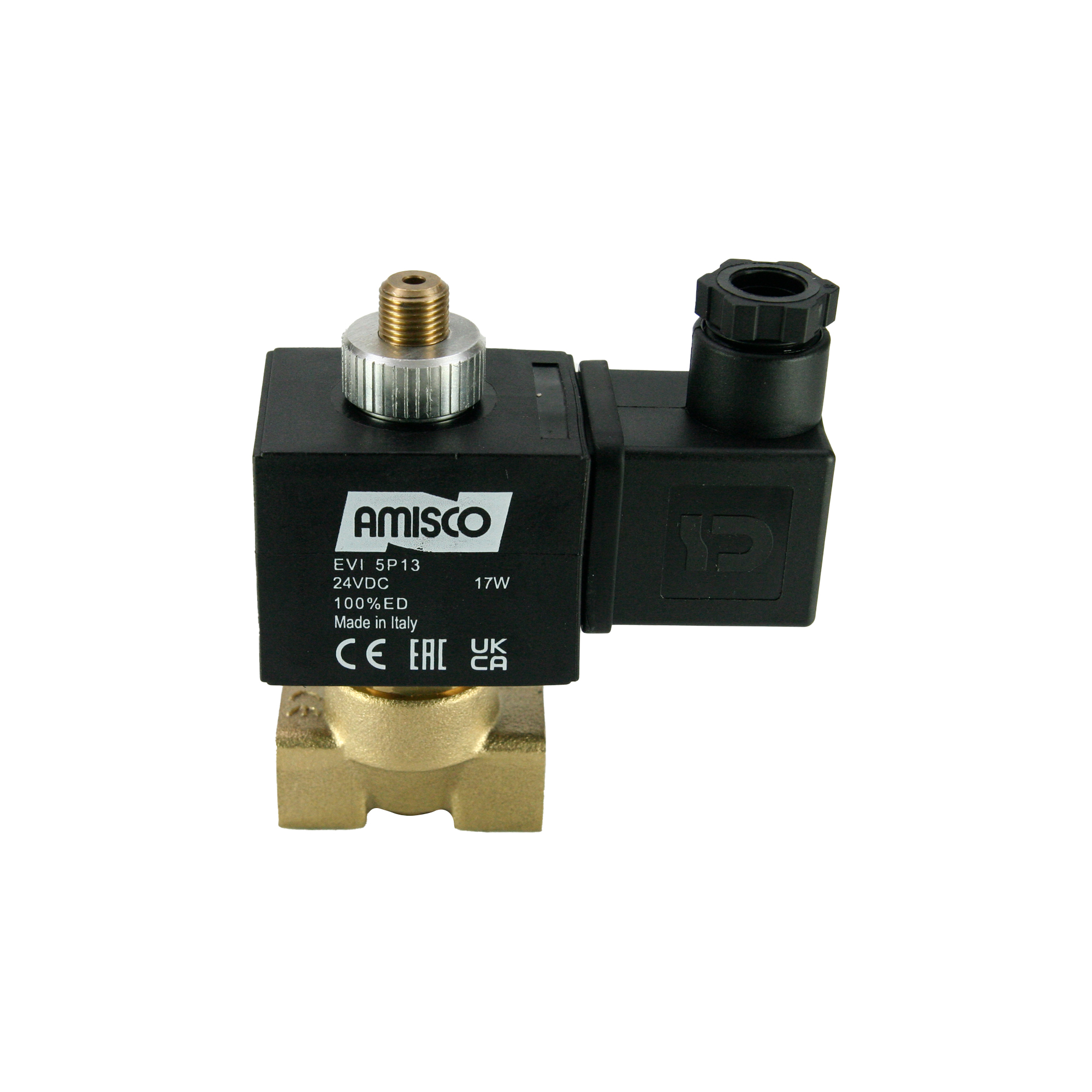

1/8" Solenoid Valve N.C. 3/2 Ways Direct Acting EPDM 0 - 7 Bar 24V DC 17 W
The prominent features of the brass body normally closed general purpose solenoid valve you are reviewing: Variety in coil Air, Vacuum Recommended for use in applications such as etc. Zero Differantial Pressure, Pneumatic works on systems. The usage area where the product is frequently preferred is; Automotive, Textile, Compressor, Machining Process.
Technical specifications
18 fields- Valve Type
- General Purpose Valves
- Connection Size
- 1/8"
- Position
- Normally Closed
- Operating Principle
- Direct Acting
- Ways
- 3/2
- Seal & Diaphragm
- EPDM
- Minimum Pressure (bar)
- 0
- Maximum Pressure (bar)
- 7
- Orifice Size (mm)
- 1.8
- Temperature (掳C)
- -10掳C +140掳C
- Coil Brand
- Amisco
- Coil Voltage
- 24V DC
- Coil Power
- 17 W
- Coil Type
- TP4
- KV Value
- 1.5 l/min
- Body Material
- Brass
- Body Code
- 13WA
- Product Weight (kg.)
- 0.389
