Stock code1931-KBNB016-080-220AC

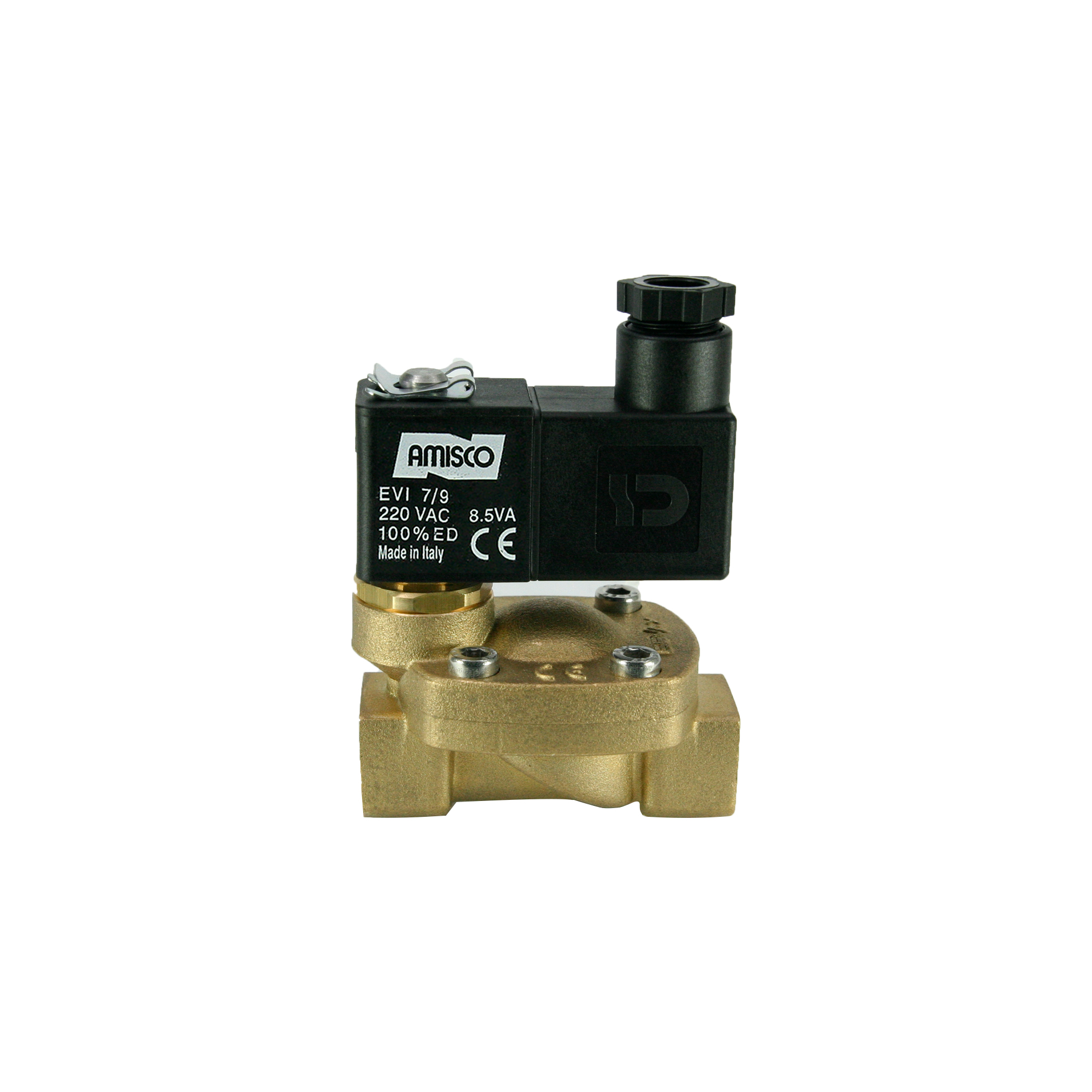

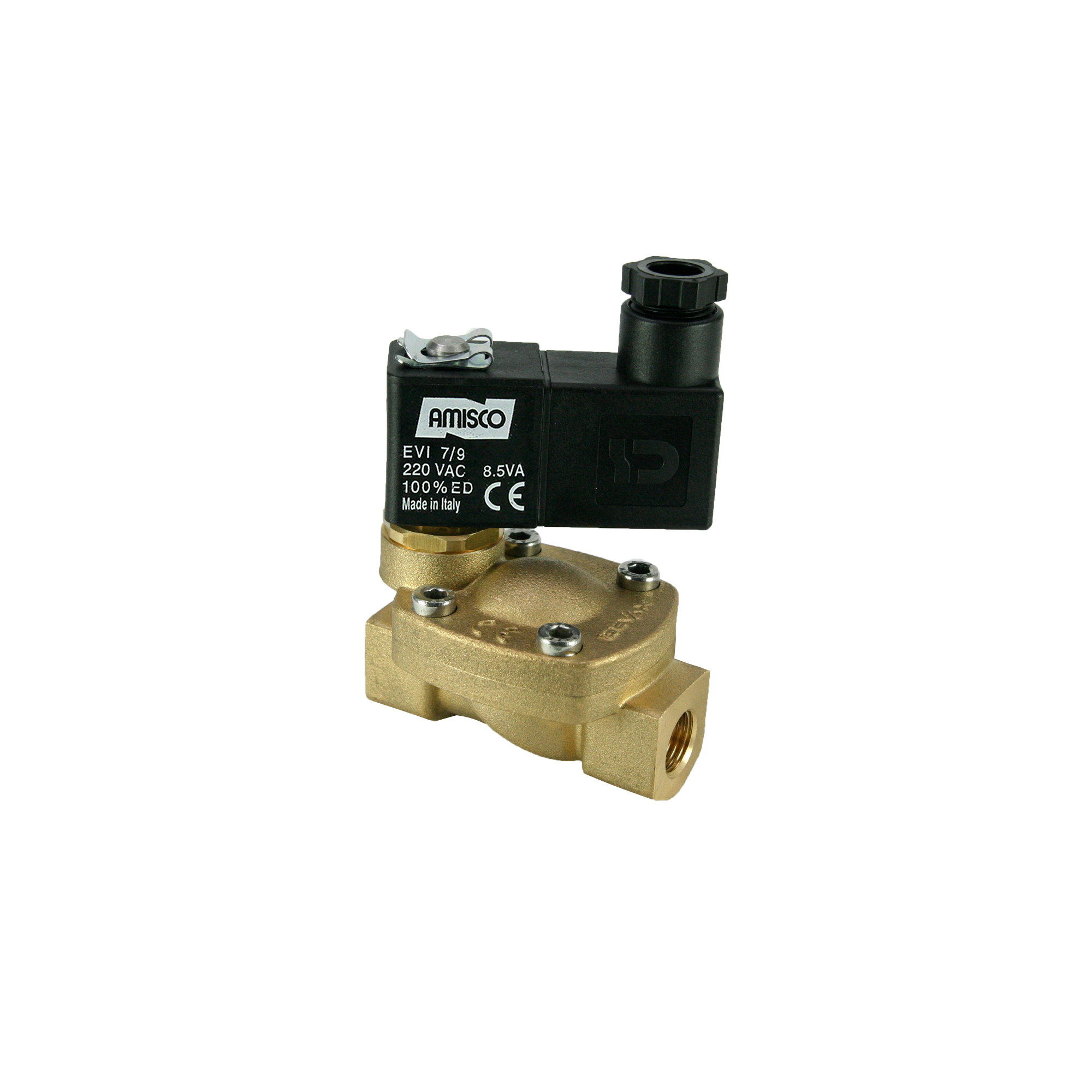

1/4" Solenoid Valve N.C. Economical Serie Pilot Operated NBR 0.5 - 16 Bar 220V AC 8.5 VA
The prominent features of the brass body normally closed general purpose solenoid valve you are reviewing: Diaphragm type, low power consumption, high flow rate. Air, Water, Gas, Chemical Recommended for use in applications such as etc. The usage area where the product is frequently preferred is; Automotive, Textile, Agricultural, Irrigation, Cooling, Washing Machines, Sawing Machines, Machining Process, Renewable Energy, Recycling, Water Treatment, Paint Industry.
Technical specifications
18 fields- Valve Type
- General Purpose Valves
- Connection Size
- 1/4"
- Position
- Normally Closed
- Operating Principle
- Pilot Operated
- Ways
- 2/2
- Seal & Diaphragm
- NBR
- Minimum Pressure (bar)
- 0.5
- Maximum Pressure (bar)
- 16
- Orifice Size (mm)
- 8
- Temperature (掳C)
- -10掳C +80掳C
- Coil Brand
- Amisco
- Coil Voltage
- 220V AC
- Coil Power
- 8.5 VA
- Coil Type
- TP6
- KV Value
- 15 l/min
- Body Material
- Brass
- Body Code
- 38AD
- Product Weight (kg.)
- 0.455
