Stock code1941-KDNB010-030-24AC

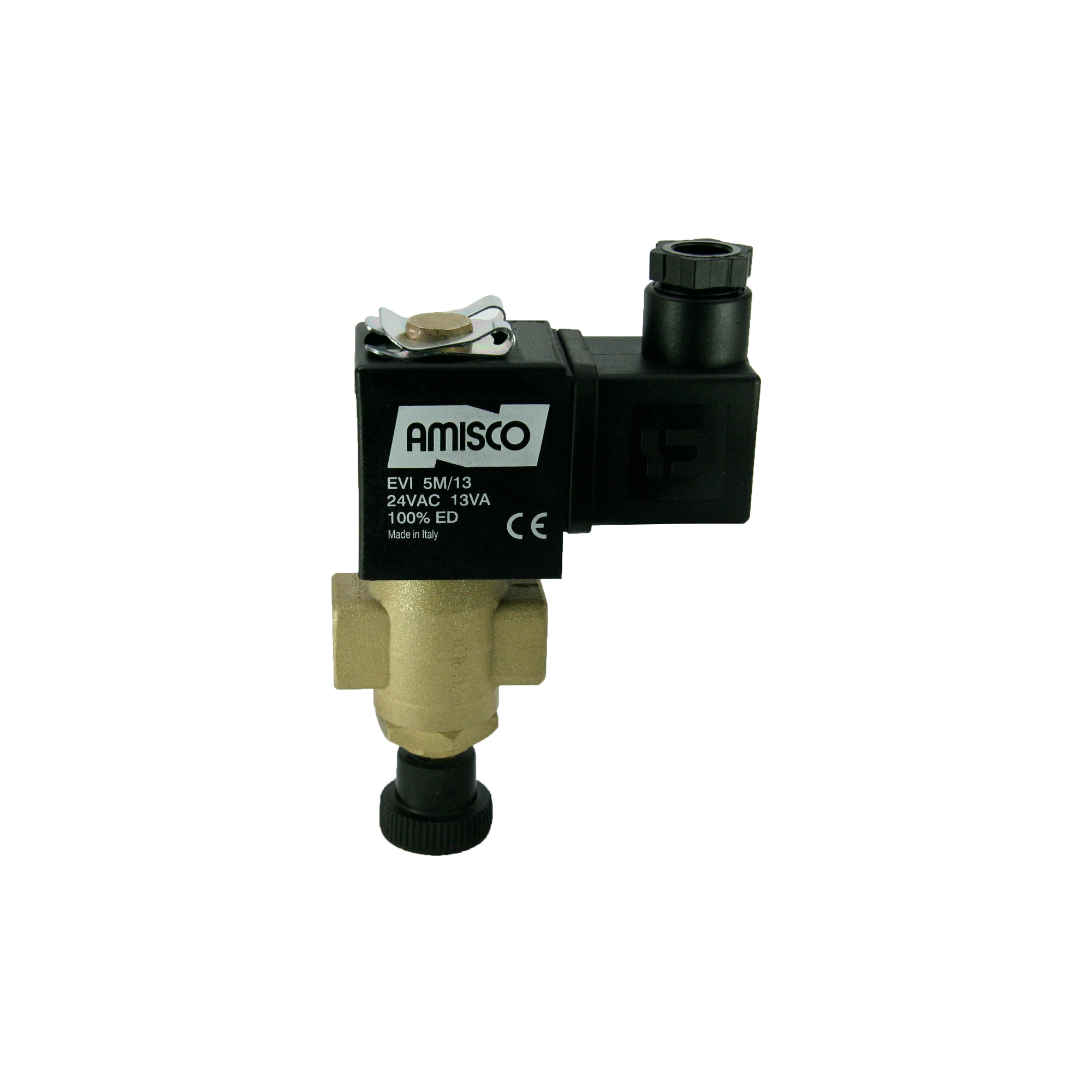

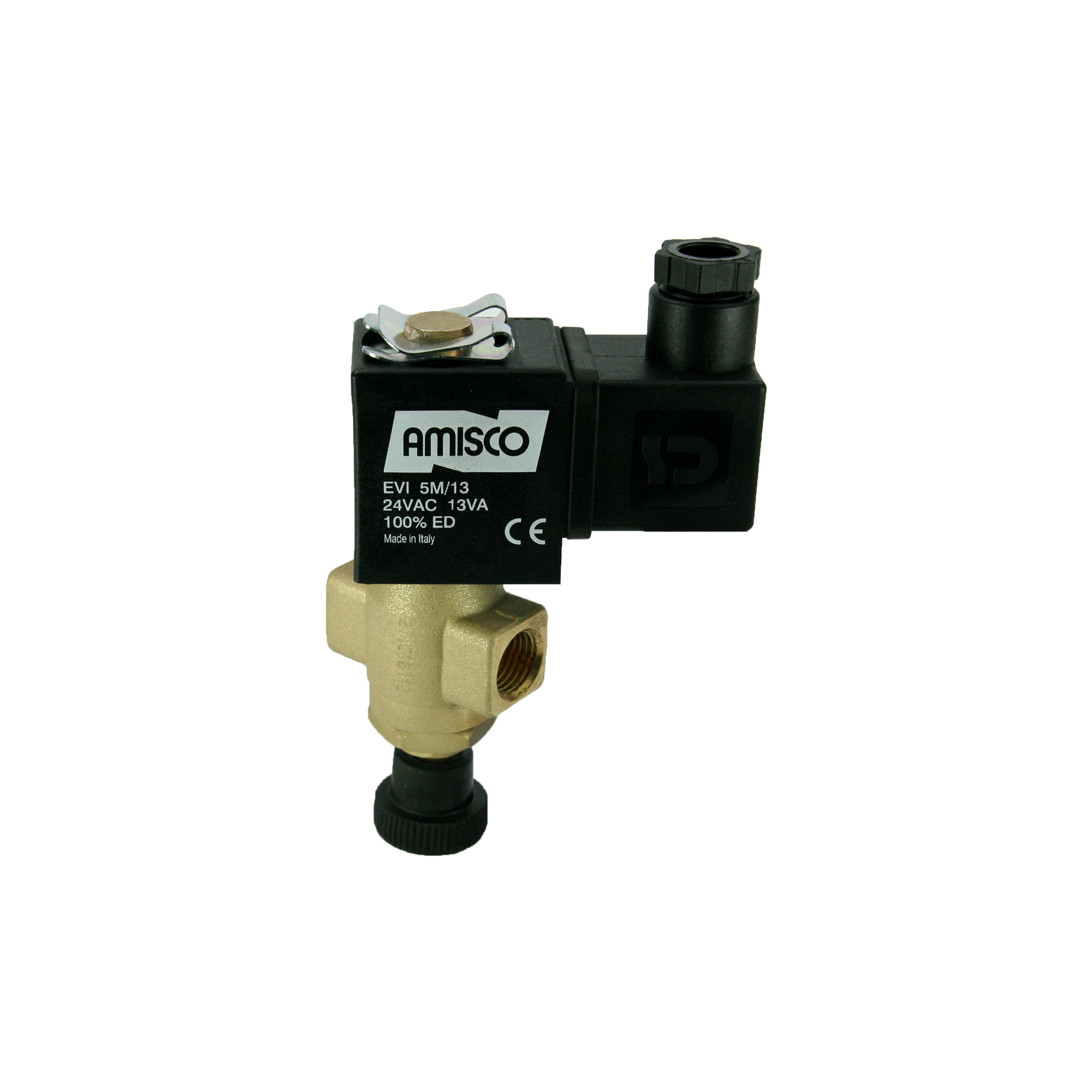

1/4" Solenoid Valve N.C. Adjustible Direct Acting NBR 0 - 10 Bar 24V AC 13 VA
The prominent features of the brass body normally closed general purpose solenoid valve you are reviewing: Flow control type with plastic cap for easy flow adjustment. Air, Water, Gas, Vacuum, Chemical, Oils, Diesel, LPG & LNG Recommended for use in applications such as etc. Zero Differantial Pressure works on systems. The usage area where the product is frequently preferred is; Automotive, Textile, Irrigation, Cooling, Lubrication, Compressor, Building Automation, Wending Machines, Washing Machines, Sawing Machines, Machining Process, Renewable Energy, Recycling, Water Treatment, Paint Industry.
Technical specifications
18 fields- Valve Type
- General Purpose Valves
- Connection Size
- 1/4"
- Position
- Normally Closed
- Operating Principle
- Direct Acting
- Ways
- 2/2
- Seal & Diaphragm
- NBR
- Minimum Pressure (bar)
- 0
- Maximum Pressure (bar)
- 10
- Orifice Size (mm)
- 3
- Temperature (掳C)
- -10掳C +80掳C
- Coil Brand
- Amisco
- Coil Voltage
- 24V AC
- Coil Power
- 13 VA
- Coil Type
- TP1
- KV Value
- 3.5 l/min
- Body Material
- Brass
- Body Code
- 02AD
- Product Weight (kg.)
- 0.37
