Stock code4911C-ABPE010-190-220AC

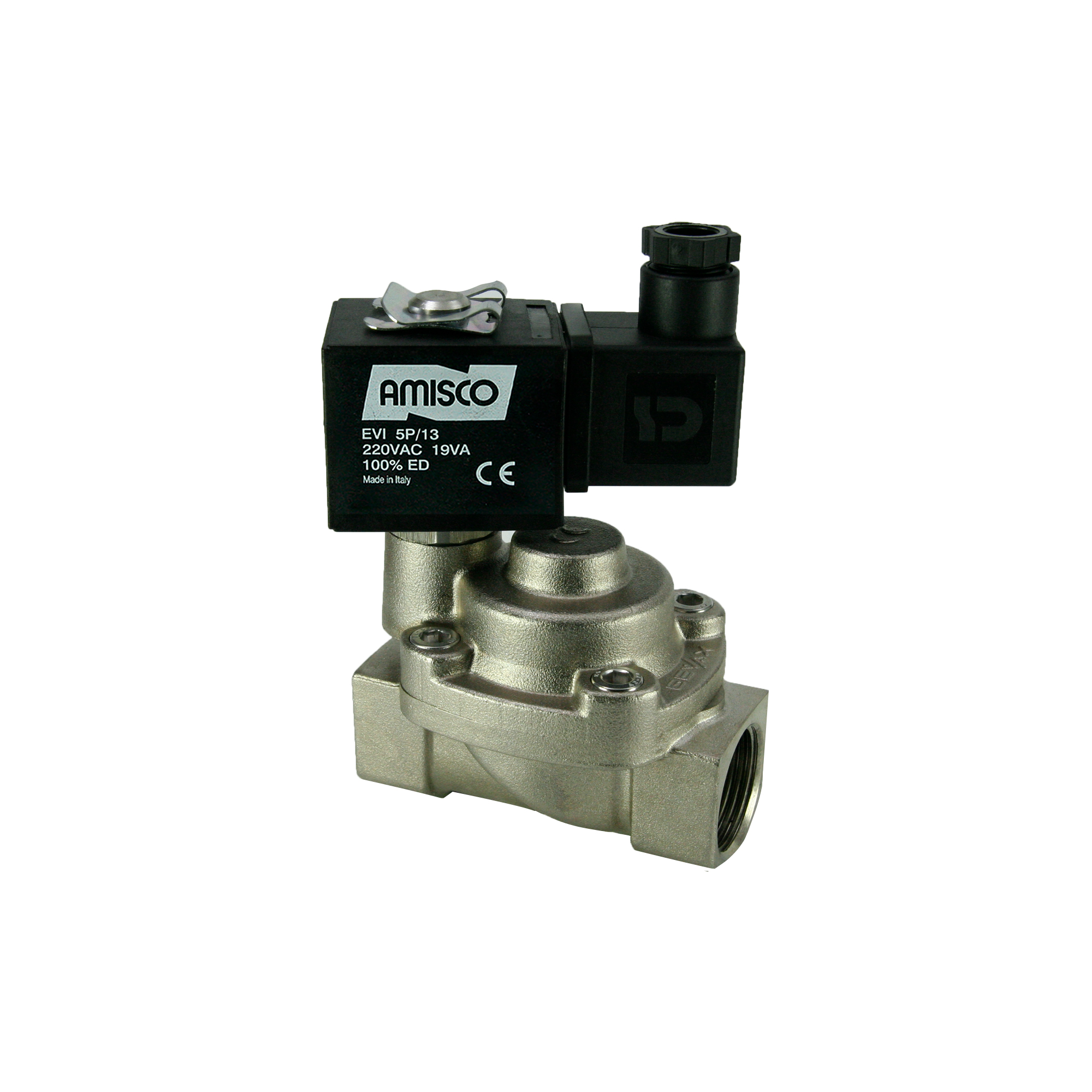

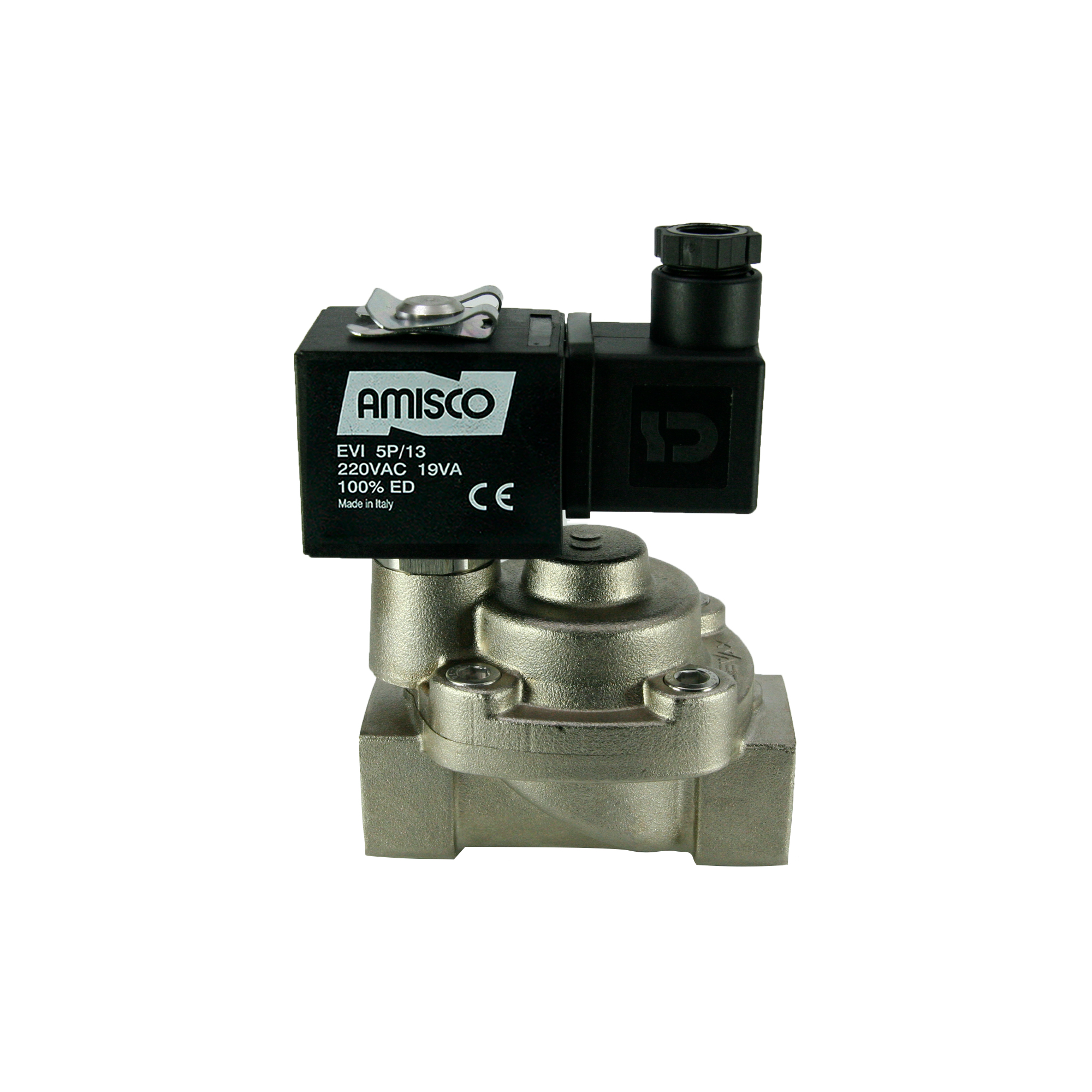

3/4" Solenoid Valve N.O. Nickel Plated Piston Steam Pilot Operated PTFE 0.5 - 10 Bar 220V AC 19 VA
The prominent features of the nickel plated body normally opened steam solenoid valve you are reviewing: PTFE piston and sealing element suitable for steam, corrosion-resistant nickel plating. Hot Water, Steam Recommended for use in applications such as etc. High Differential Pressure works on systems. The usage area where the product is frequently preferred is; Automotive, Textile, Washing Machines, Renewable Energy, Water Treatment.
Technical specifications
18 fields- Valve Type
- Steam Valves
- Connection Size
- 3/4"
- Position
- Normally Open
- Operating Principle
- Pilot Operated
- Ways
- 2/2
- Seal & Diaphragm
- PTFE
- Minimum Pressure (bar)
- 0.5
- Maximum Pressure (bar)
- 10
- Orifice Size (mm)
- 19
- Temperature (掳C)
- -10掳C +180掳C
- Coil Brand
- Amisco
- Coil Voltage
- 220V AC
- Coil Power
- 19 VA
- Coil Type
- TP4
- KV Value
- 105 l/min
- Body Material
- Nickel Plated Brass
- Body Code
- 73SL
- Product Weight (kg.)
- 0.925
