Stock code4931-KDEB006-030-24AC

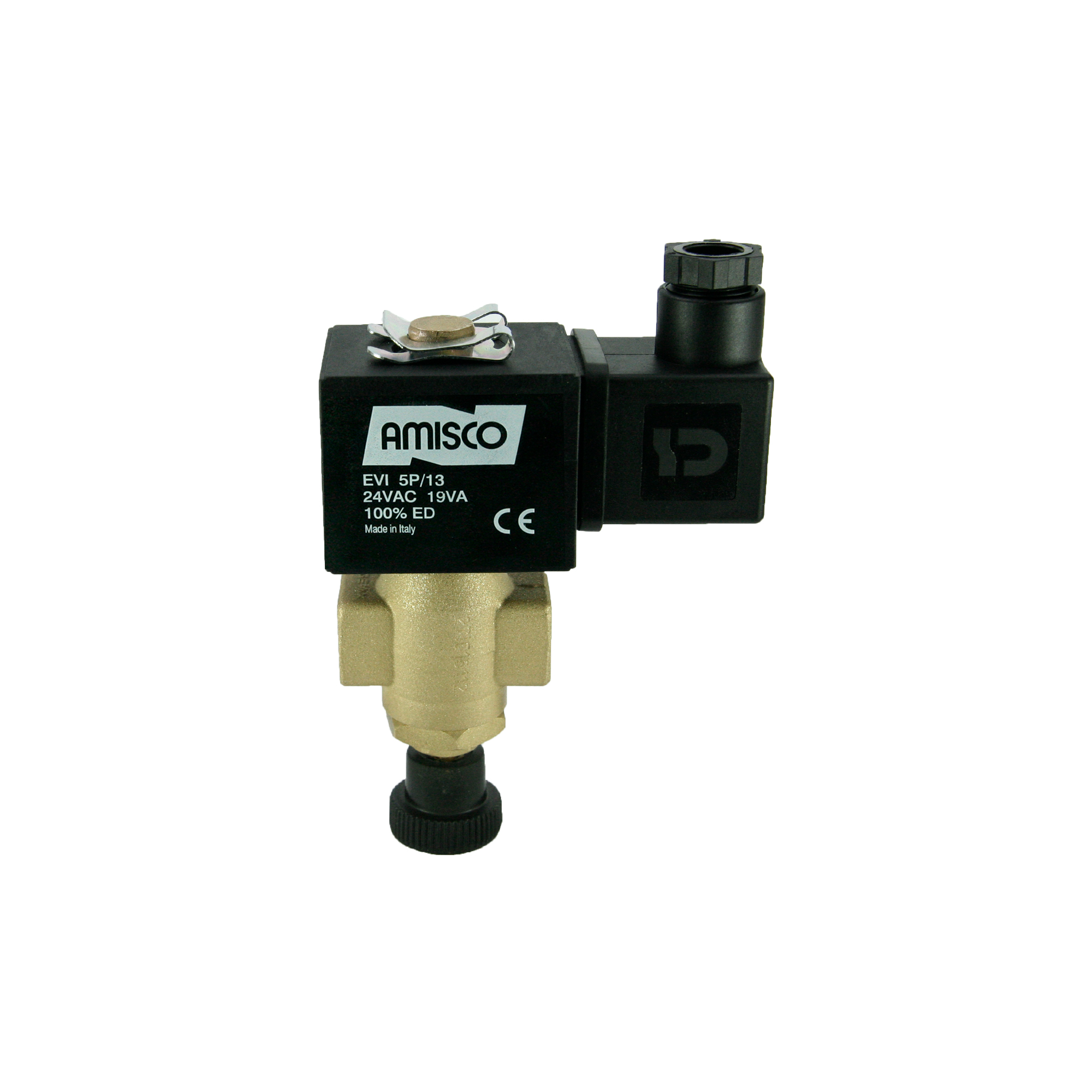

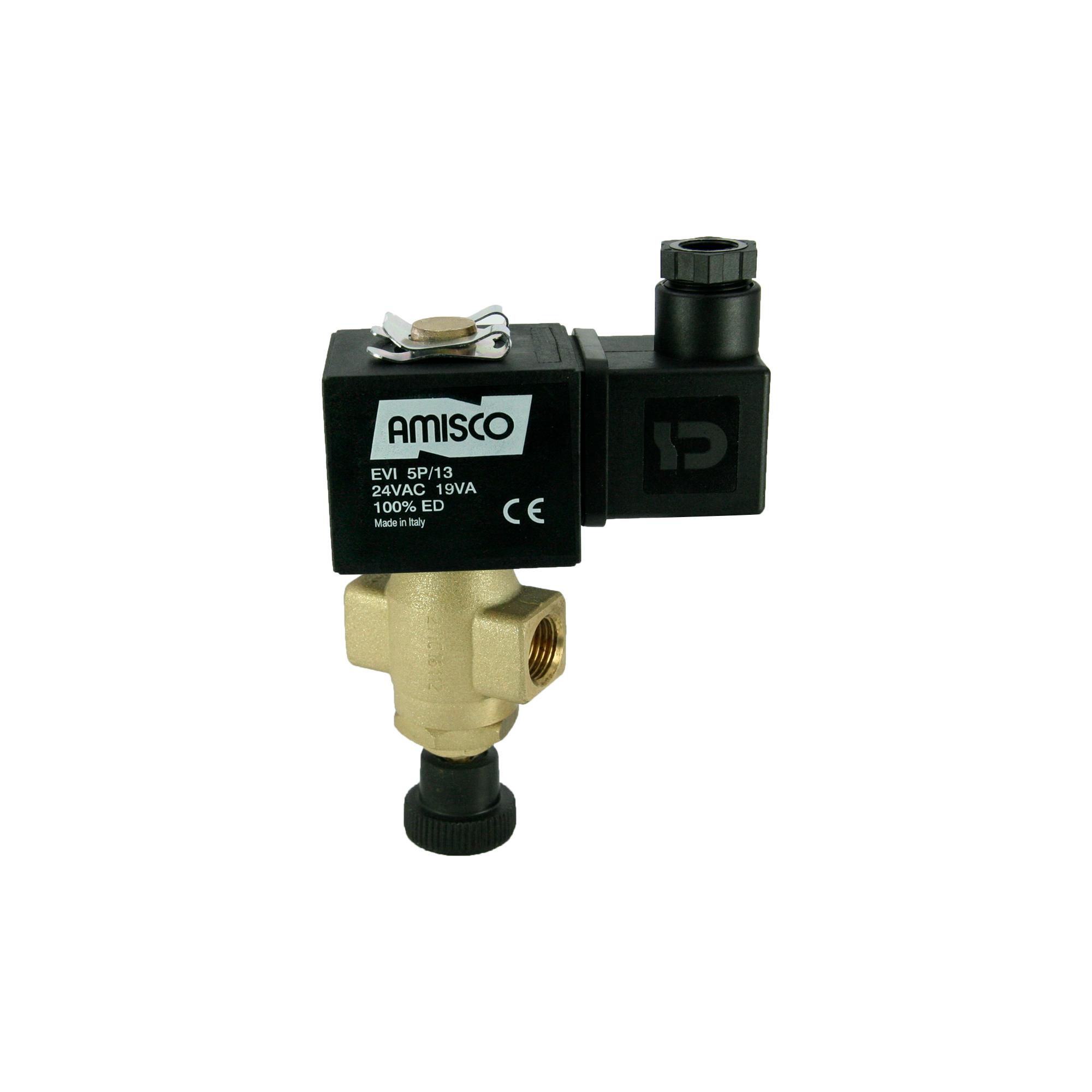

1/4" Solenoid Valve N.C. Steam Regulation Direct Acting EPDM 0 - 6 Bar 24V AC 19 VA
The prominent features of the brass body normally closed steam solenoid valve you are reviewing: Flow control type with plastic cap for easy flow adjustment, sealing element suitable for steam. Hot Water, Steam Recommended for use in applications such as etc. Zero Differantial Pressure works on systems. The usage area where the product is frequently preferred is; Automotive, Textile, Washing Machines, Renewable Energy, Recycling, Water Treatment, Paint Industry.
Technical specifications
18 fields- Valve Type
- Steam Valves
- Connection Size
- 1/4"
- Position
- Normally Closed
- Operating Principle
- Direct Acting
- Ways
- 2/2
- Seal & Diaphragm
- EPDM
- Minimum Pressure (bar)
- 0
- Maximum Pressure (bar)
- 6
- Orifice Size (mm)
- 3
- Temperature (掳C)
- -10掳C +140掳C
- Coil Brand
- Amisco
- Coil Voltage
- 24V AC
- Coil Power
- 19 VA
- Coil Type
- TP4
- KV Value
- 3.5 l/min
- Body Material
- Brass
- Body Code
- 18IC
- Product Weight (kg.)
- 0.435
