Stock code5801-KBND010-120-24DC

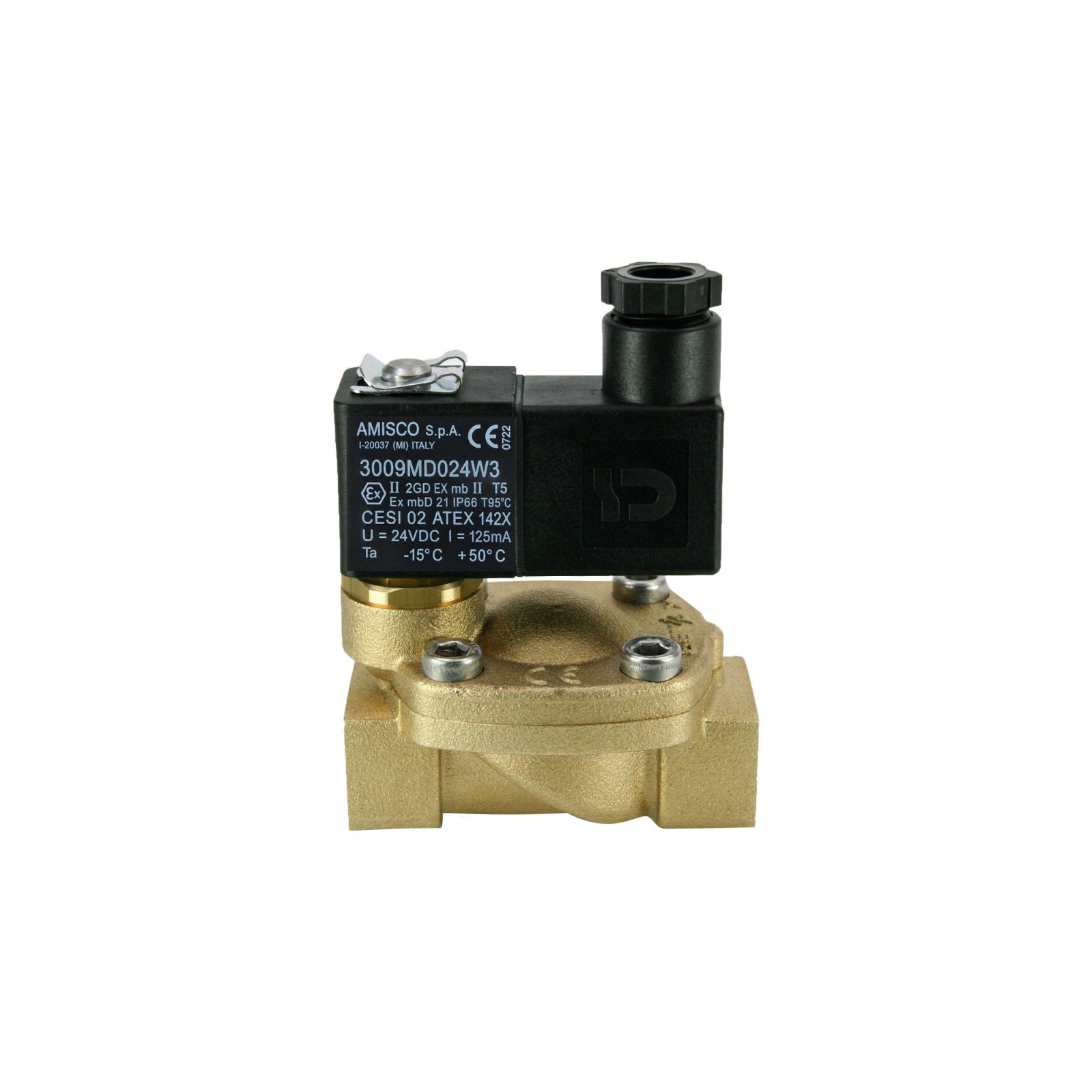

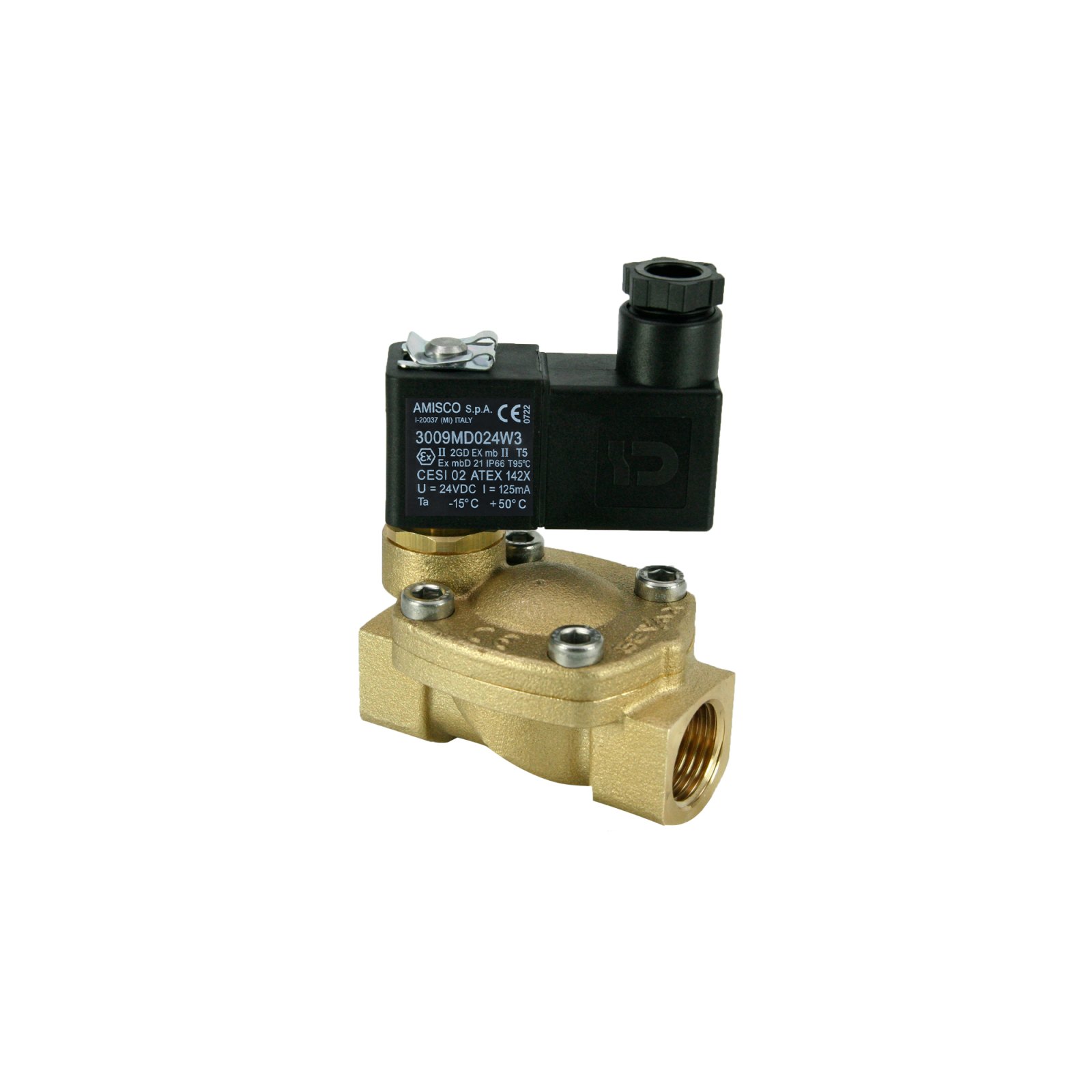

1/2" Solenoid Valve N.C. Ex-Proof Economical Serie Pilot Operated NBR 0.5 - 10 Bar 24V DC 3 W
The prominent features of the brass body normally closed ex-proof solenoid valve you are reviewing: Diaphragm type, energy-efficient, high flow rate. Air, Water, Gas, Chemical, LPG & LNG Recommended for use in applications such as etc. The usage area where the product is frequently preferred is; Automotive, Textile, Irrigation, Cooling, Machining Process, Renewable Energy, Recycling, Water Treatment, Paint Industry.
Technical specifications
18 fields- Valve Type
- Ex-Proof Valves
- Connection Size
- 1/2"
- Position
- Normally Closed
- Operating Principle
- Pilot Operated
- Ways
- 2/2
- Seal & Diaphragm
- NBR
- Minimum Pressure (bar)
- 0.5
- Maximum Pressure (bar)
- 10
- Orifice Size (mm)
- 12
- Temperature (°C)
- -10°C +80°C
- Coil Brand
- Amisco
- Coil Voltage
- 24V DC
- Coil Power
- 3 W
- Coil Type
- TP7
- KV Value
- 65 l/min
- Body Material
- Brass
- Body Code
- 01EH
- Product Weight (kg.)
- 0.63
