Stock code5801-KBNG005-320-220AC

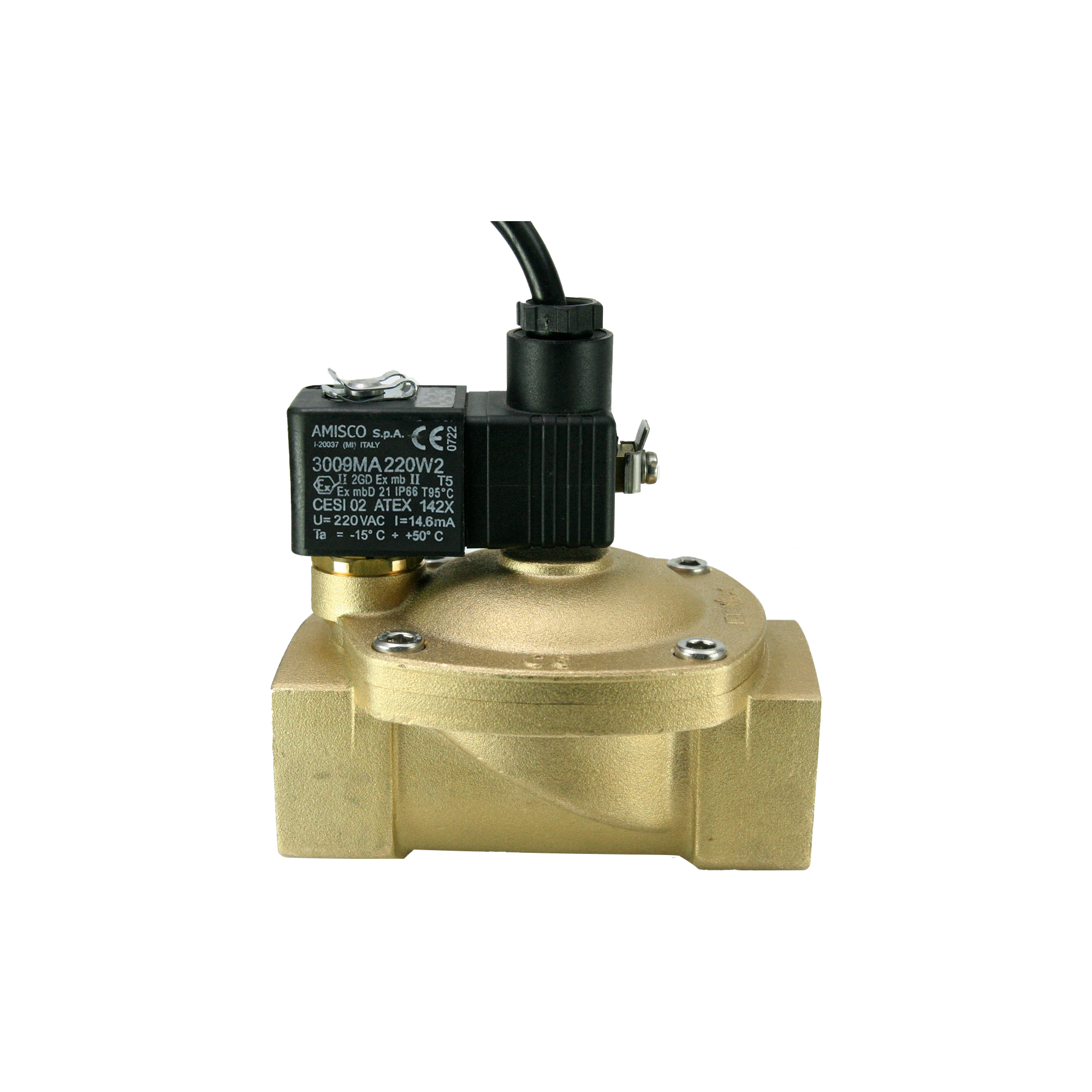

1 1/4" Solenoid Valve N.C. Ex-Proof Economical Serie Pilot Operated NBR 0.5 - 5 Bar 220V AC 3.2 VA
The prominent features of the brass body normally closed ex-proof solenoid valve you are reviewing: Diaphragm type, energy-efficient, high flow rate. Air, Water, Gas, Chemical, LPG & LNG Recommended for use in applications such as etc. The usage area where the product is frequently preferred is; Automotive, Textile, Irrigation, Cooling, Machining Process, Renewable Energy, Recycling, Water Treatment, Paint Industry.
Technical specifications
18 fields- Valve Type
- Ex-Proof Valves
- Connection Size
- 1 1/4"
- Position
- Normally Closed
- Operating Principle
- Pilot Operated
- Ways
- 2/2
- Seal & Diaphragm
- NBR
- Minimum Pressure (bar)
- 0.5
- Maximum Pressure (bar)
- 5
- Orifice Size (mm)
- 32
- Temperature (掳C)
- -10掳C +80掳C
- Coil Brand
- Amisco
- Coil Voltage
- 220V AC
- Coil Power
- 3.2 VA
- Coil Type
- TP7
- KV Value
- 250 l/min
- Body Material
- Brass
- Body Code
- 01ES
- Product Weight (kg.)
- 1.51
