Stock code5811-KBVD016-120-G24DC

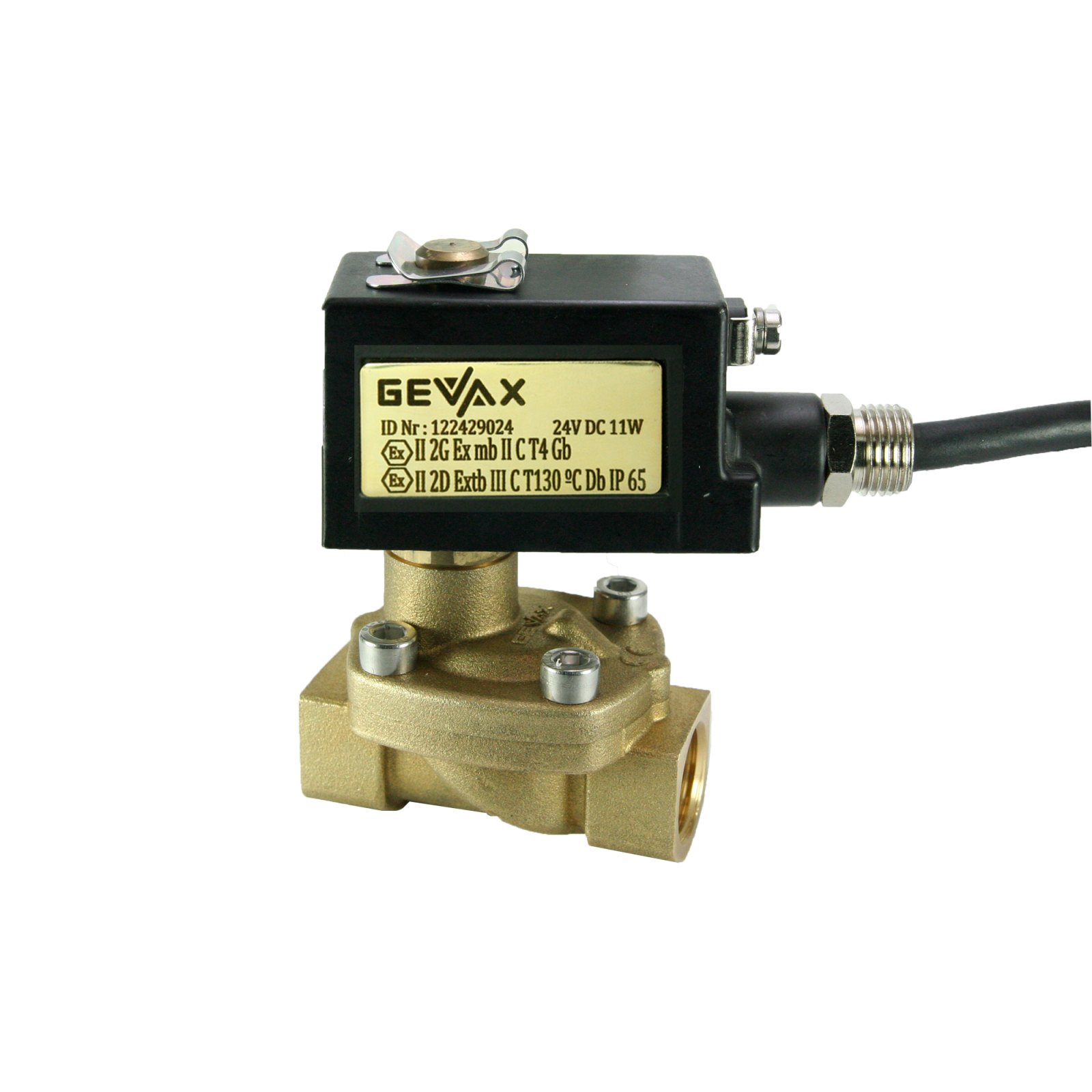

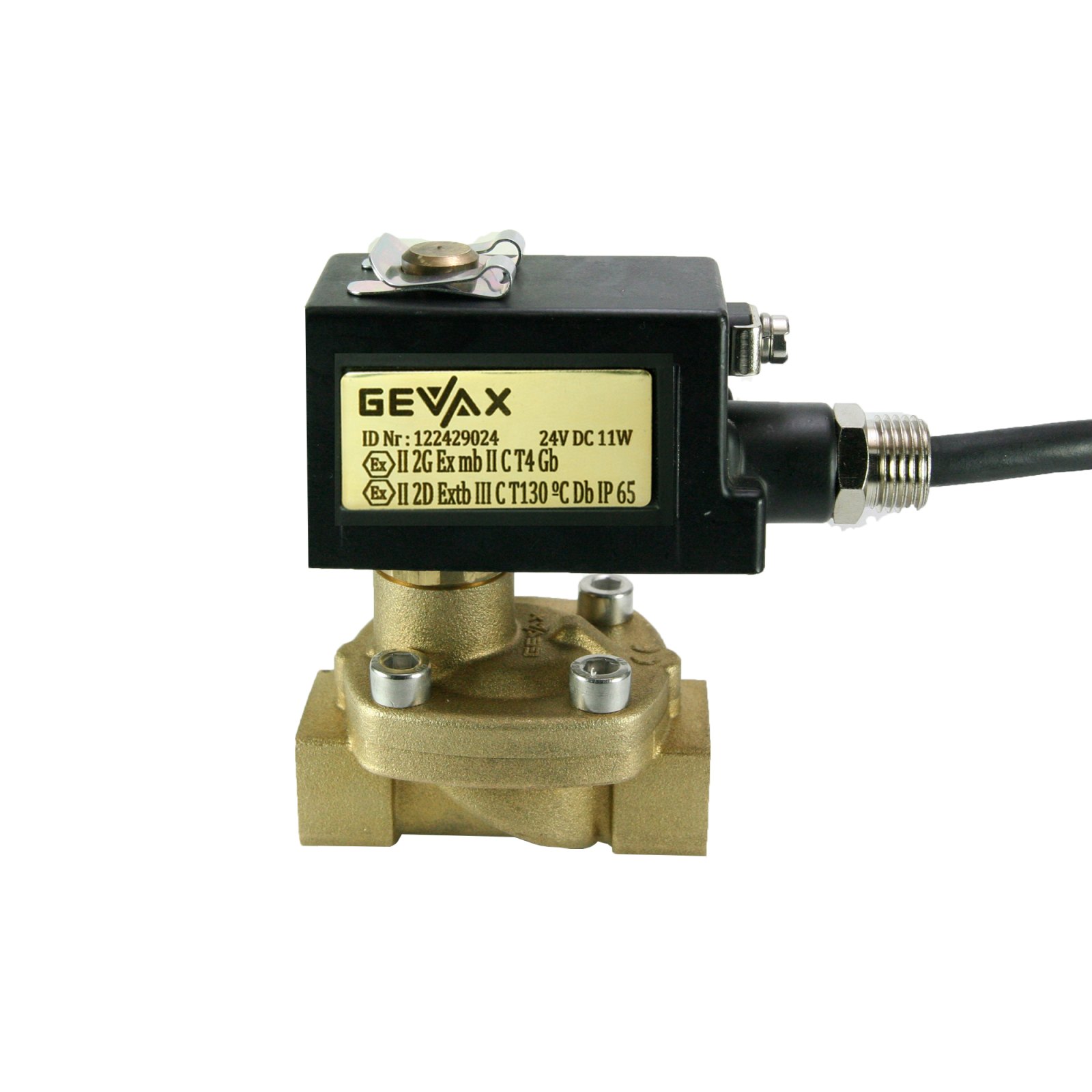

1/2" Solenoid Valve N.C. Ex-Proof Low Differential Pressure Pilot Operated FKM 0.1 - 16 Bar G24V DC 11 W
The prominent features of the brass body normally closed ex-proof solenoid valve you are reviewing: Diaphragm type. Air, Water, Gas, Chemical, Hot Water Recommended for use in applications such as etc. Low power consumption. works on systems. The usage area where the product is frequently preferred is; Automotive, Textile, Irrigation, Cooling, Building Automation, Washing Machines, Sawing Machines, Machining Process, Renewable Energy, Recycling, Water Treatment, Paint Industry, Smart home systems.
Technical specifications
18 fields- Valve Type
- Ex-Proof Valves
- Connection Size
- 1/2"
- Position
- Normally Closed
- Operating Principle
- Pilot Operated
- Ways
- 2/2
- Seal & Diaphragm
- FKM
- Minimum Pressure (bar)
- 0.1
- Maximum Pressure (bar)
- 16
- Orifice Size (mm)
- 12
- Temperature (°C)
- -10°C +150°C
- Coil Brand
- GEVAX
- Coil Voltage
- 24V DC
- Coil Power
- 11 W
- Coil Type
- TP8
- KV Value
- 55 l/min
- Body Material
- Brass
- Body Code
- 13EH
- Product Weight (kg.)
- 0.98
