Stock code5901-KBNE016-190-G24DC

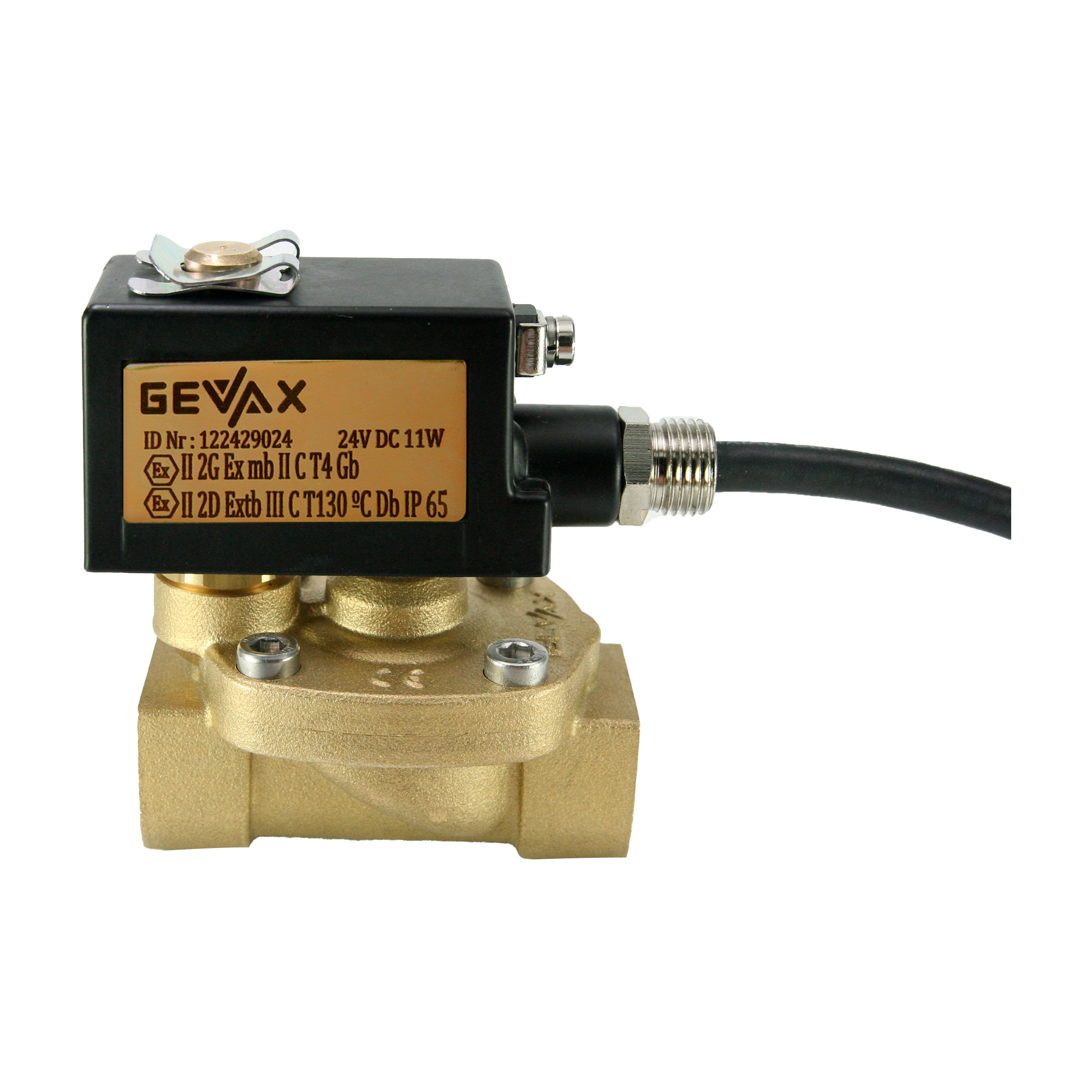

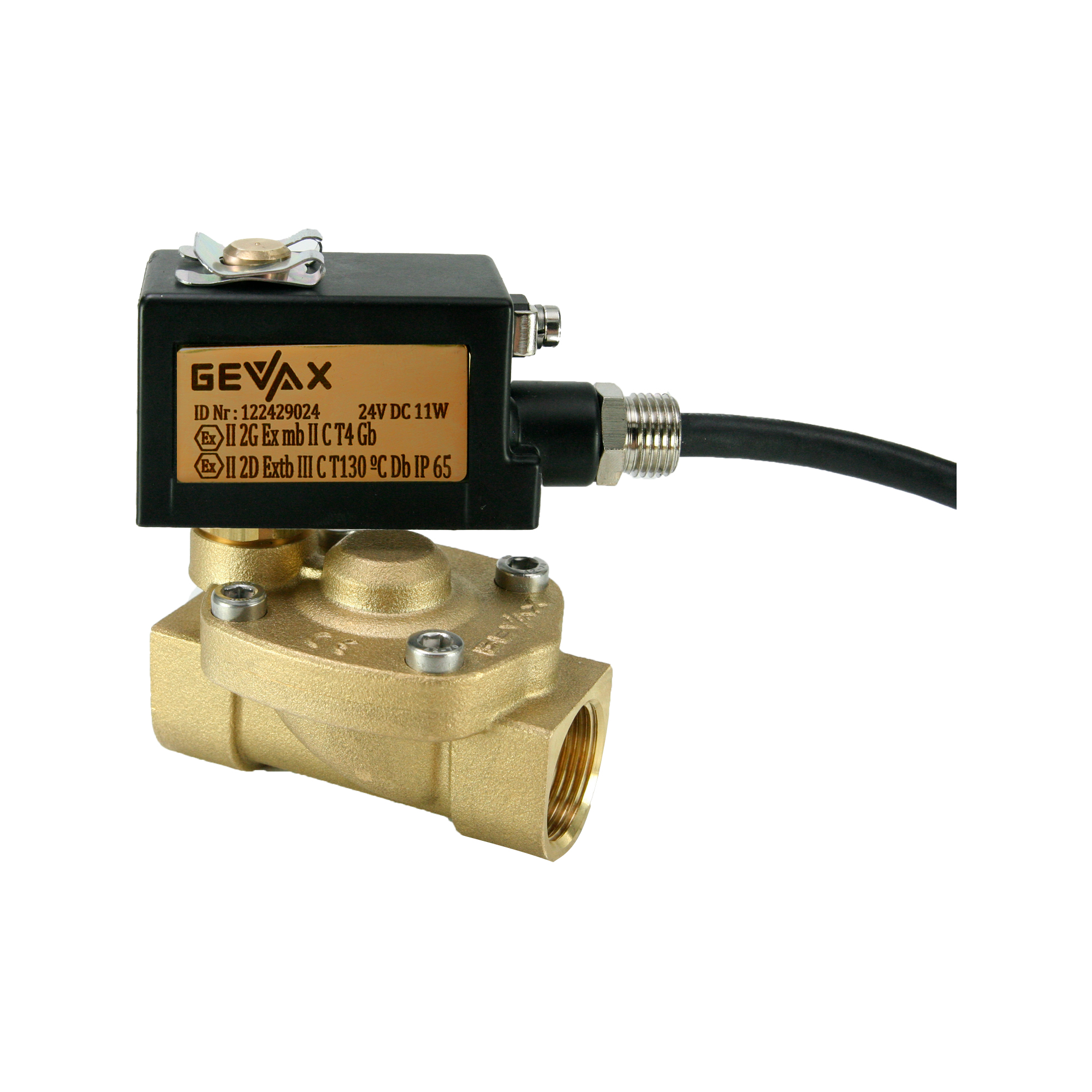

3/4" Solenoid Valve N.C. Ex-Proof Pilot Operated NBR 0.5 - 16 Bar G24V DC 11 W
The prominent features of the brass body normally closed ex-proof solenoid valve you are reviewing: Diaphragm type, energy-efficient, high flow rate. Air, Water, Gas, Chemical, Oils, Diesel, LPG & LNG Recommended for use in applications such as etc. The usage area where the product is frequently preferred is; Automotive, Textile, Irrigation, Cooling, Lubrication, Washing Machines, Machining Process, Renewable Energy, Recycling, Water Treatment, Paint Industry.
Technical specifications
18 fields- Valve Type
- Ex-Proof Valves
- Connection Size
- 3/4"
- Position
- Normally Closed
- Operating Principle
- Pilot Operated
- Ways
- 2/2
- Seal & Diaphragm
- NBR
- Minimum Pressure (bar)
- 0.5
- Maximum Pressure (bar)
- 16
- Orifice Size (mm)
- 19
- Temperature (掳C)
- -10掳C +80掳C
- Coil Brand
- GEVAX
- Coil Voltage
- 24V DC
- Coil Power
- 11 W
- Coil Type
- TP8
- KV Value
- 110 l/min
- Body Material
- Brass
- Body Code
- 05EL
- Product Weight (kg.)
- 1.13
