Stock code5901-KBVH010-400-G24DC

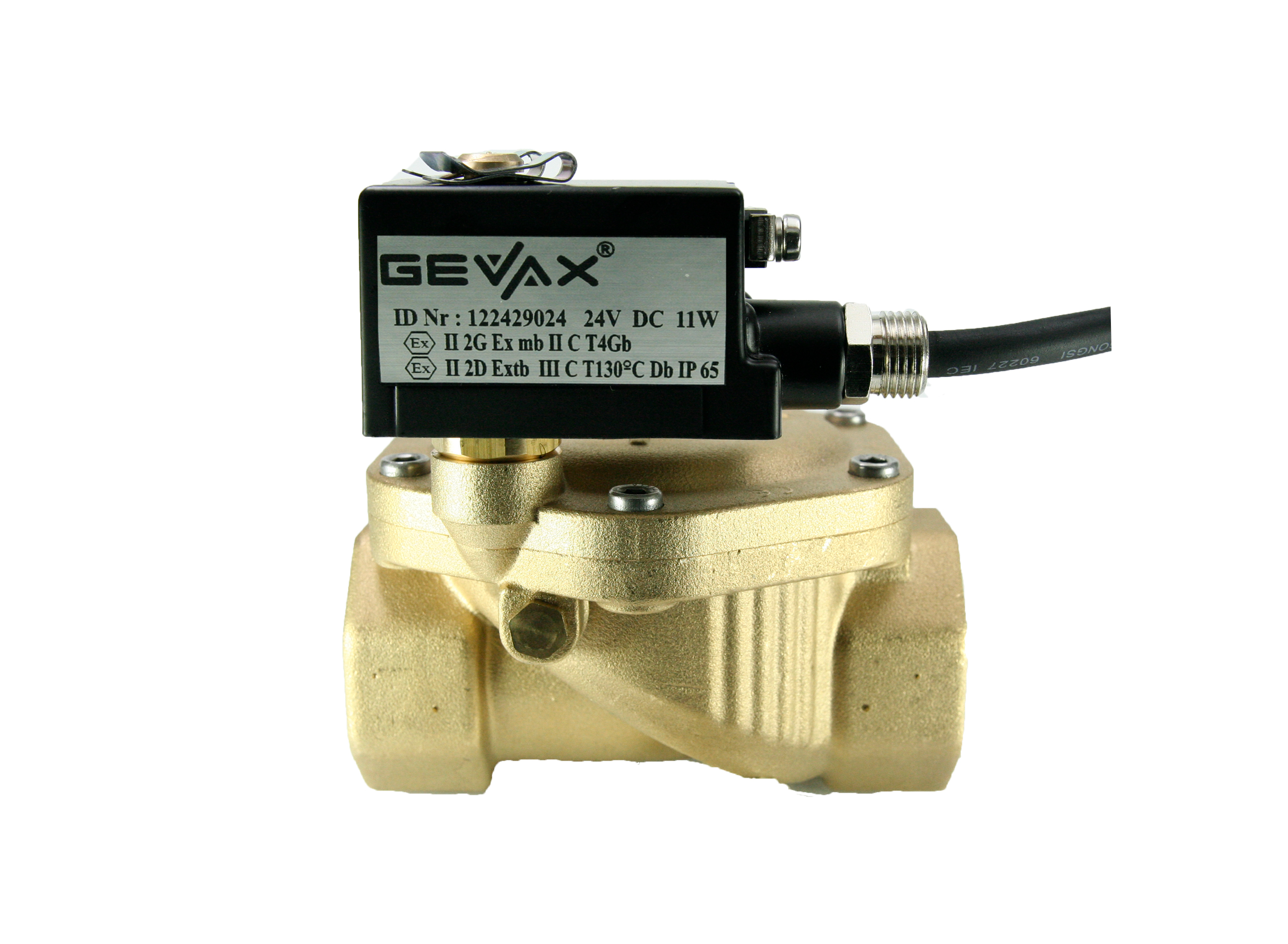

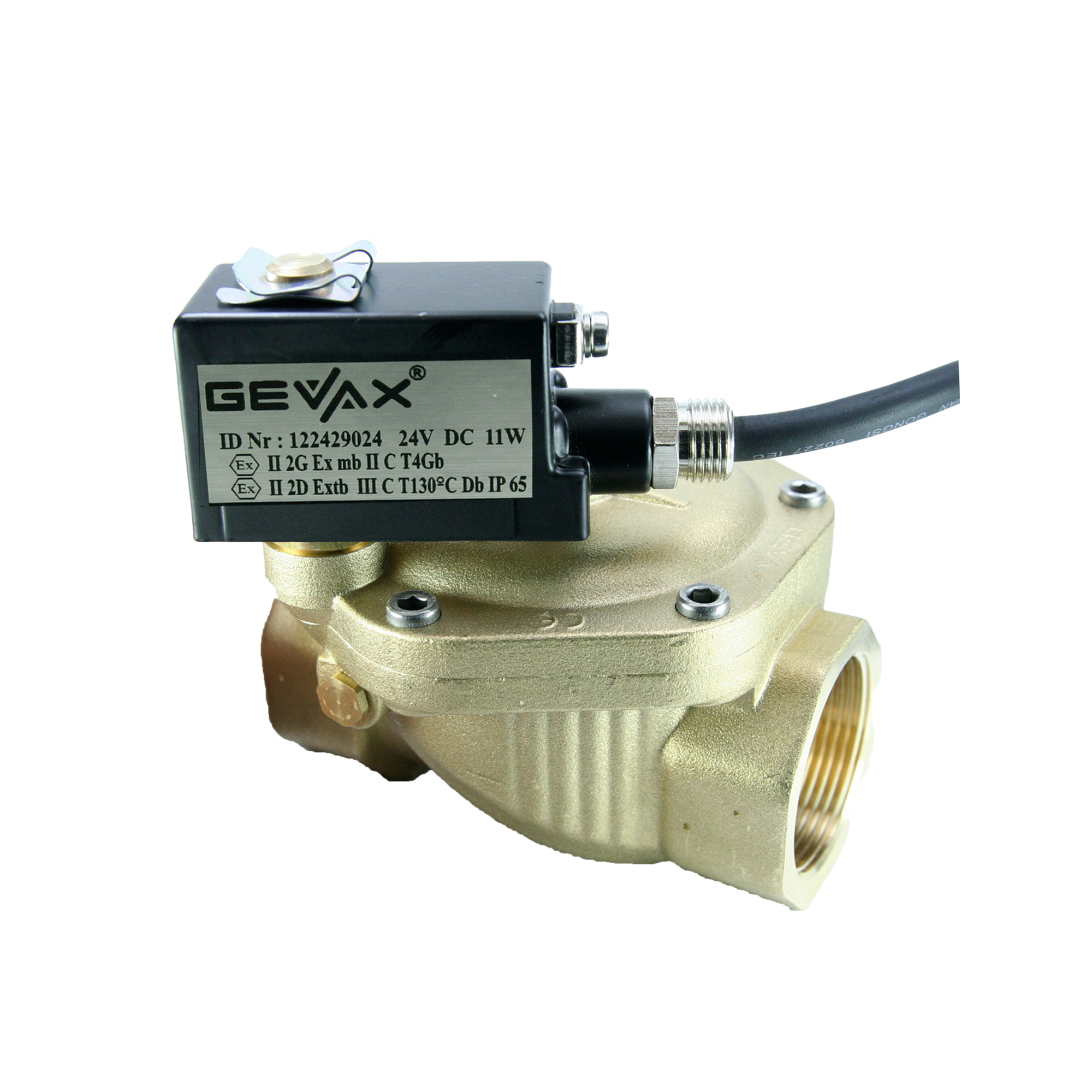

1 1/2" Solenoid Valve N.C. Ex-Proof Pilot Operated FKM 0.5 - 10 Bar G24V DC 11 W
The prominent features of the brass body normally closed ex-proof solenoid valve you are reviewing: Diaphragm type, energy-efficient, high flow rate. Air, Water, Gas, Chemical, Hot Water, Oils, Diesel, Natural Gas, LPG & LNG Recommended for use in applications such as etc. The usage area where the product is frequently preferred is; Automotive, Textile, Irrigation, Cooling, Lubrication, Machining Process, Renewable Energy, Recycling, Water Treatment, Paint Industry.
Technical specifications
18 fields- Valve Type
- Ex-Proof Valves
- Connection Size
- 1 1/2"
- Position
- Normally Closed
- Operating Principle
- Pilot Operated
- Ways
- 2/2
- Seal & Diaphragm
- FKM
- Minimum Pressure (bar)
- 0.5
- Maximum Pressure (bar)
- 10
- Orifice Size (mm)
- 40
- Temperature (掳C)
- -10掳C +150掳C
- Coil Brand
- GEVAX
- Coil Voltage
- 24V DC
- Coil Power
- 11 W
- Coil Type
- TP8
- KV Value
- 390 l/min
- Body Material
- Brass
- Body Code
- 04EU
- Product Weight (kg.)
- 3.06
