Stock code5901-KHNF003-250-G220AC

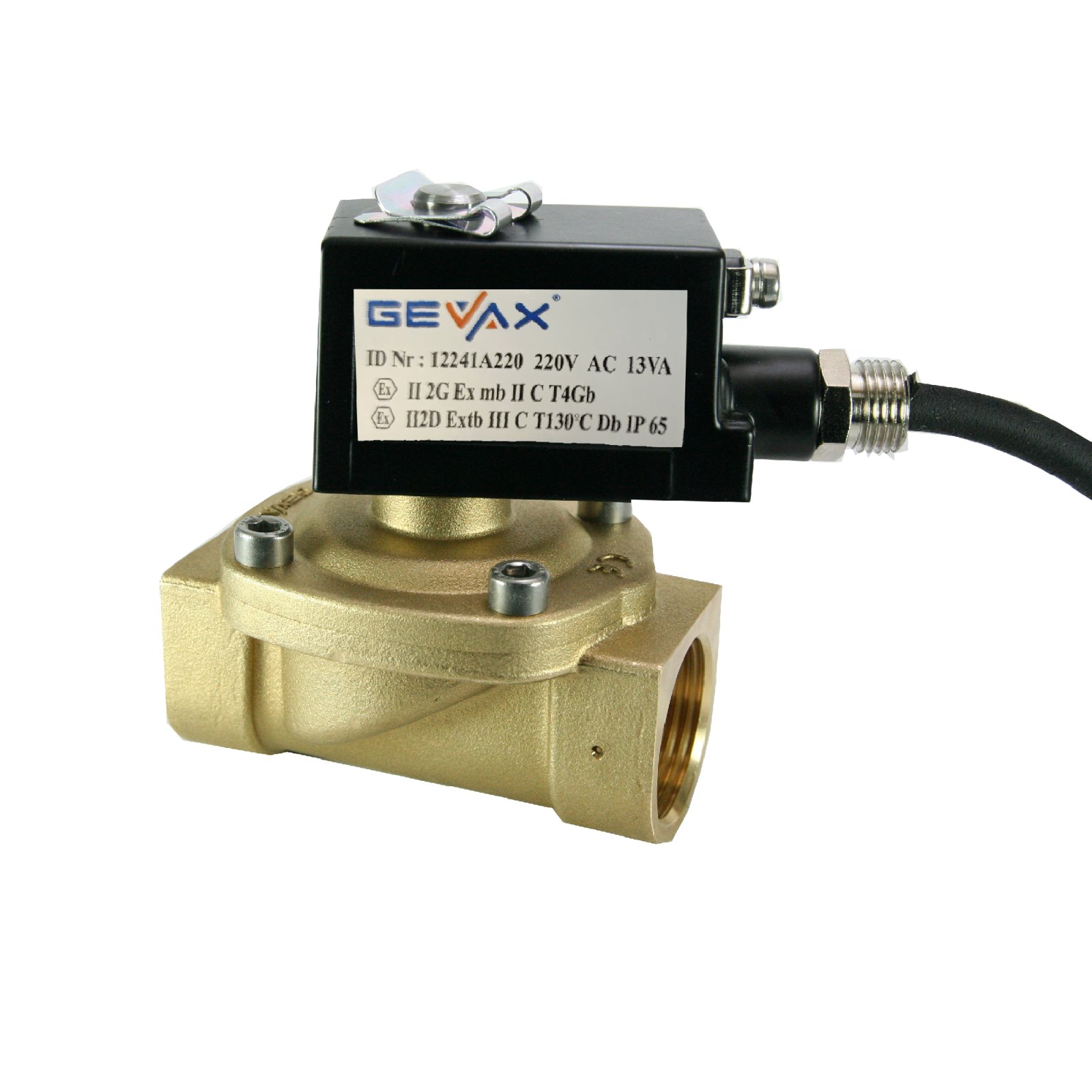

1" Solenoid Valve N.C. Ex-Proof Assisted Lift Diaphragm Controlled NBR 0 - 3 Bar G220V AC 13 VA
The prominent features of the brass body normally closed ex-proof solenoid valve you are reviewing: Special valve. Air, Water, Vacuum, Chemical Recommended for use in applications such as etc. Zero Differantial Pressure works on systems. The usage area where the product is frequently preferred is; Automotive, Textile, Agricultural, Irrigation, Cooling, Building Automation, Wending Machines, Washing Machines, Sawing Machines, Machining Process, Renewable Energy, Recycling, Water Treatment, Paint Industry, Smart home systems.
Technical specifications
18 fields- Valve Type
- Ex-Proof Valves
- Connection Size
- 1"
- Position
- Normally Closed
- Operating Principle
- Hung Diaphragm Type
- Ways
- 2/2
- Seal & Diaphragm
- NBR
- Minimum Pressure (bar)
- 0
- Maximum Pressure (bar)
- 3
- Orifice Size (mm)
- 25
- Temperature (°C)
- -10°C +80°C
- Coil Brand
- GEVAX
- Coil Voltage
- 220V AC
- Coil Power
- 13 VA
- Coil Type
- TP8
- KV Value
- 135 l/min
- Body Material
- Brass
- Body Code
- 09EO
- Product Weight (kg.)
- 1.31
