Stock code5902-ADVB006-015-G24DC

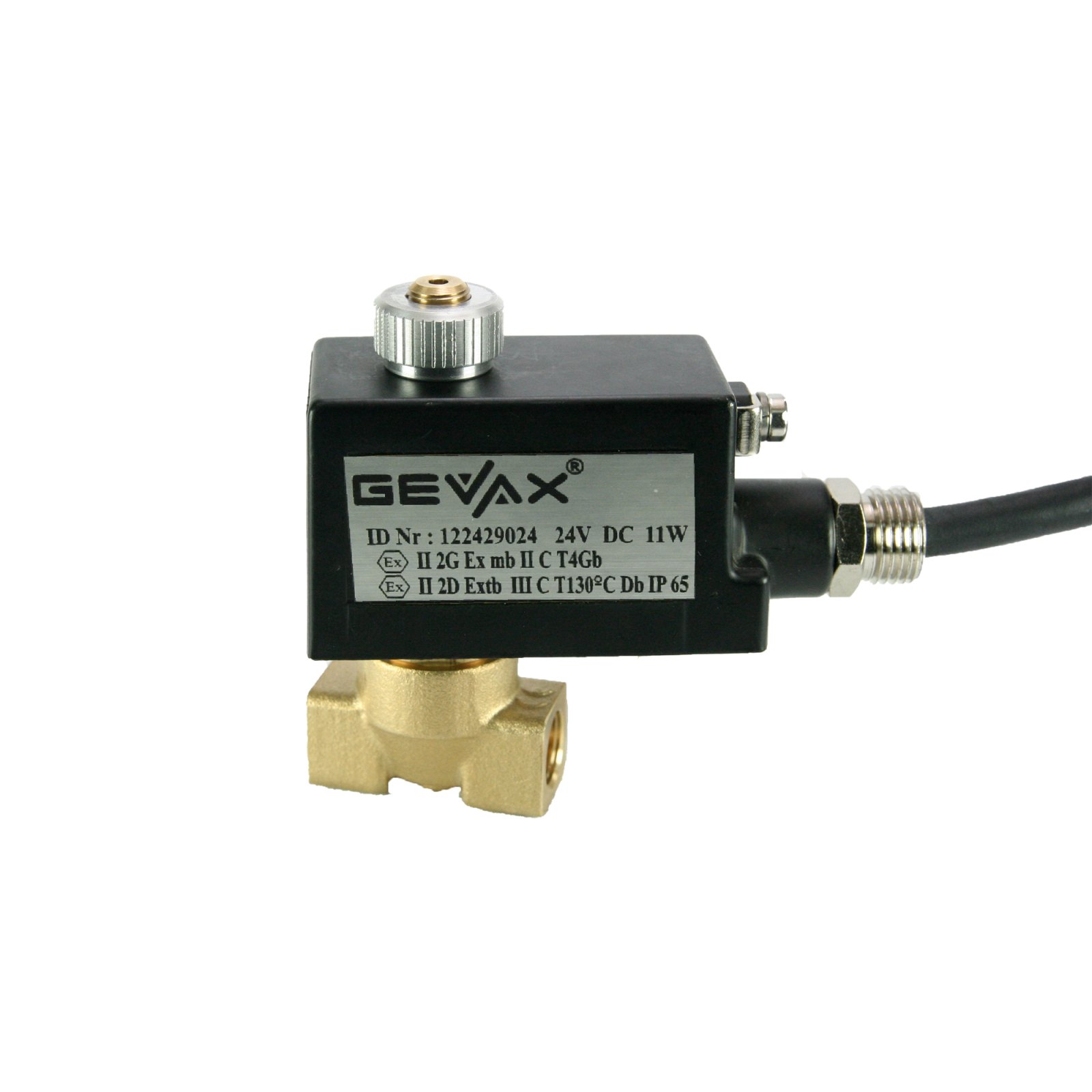

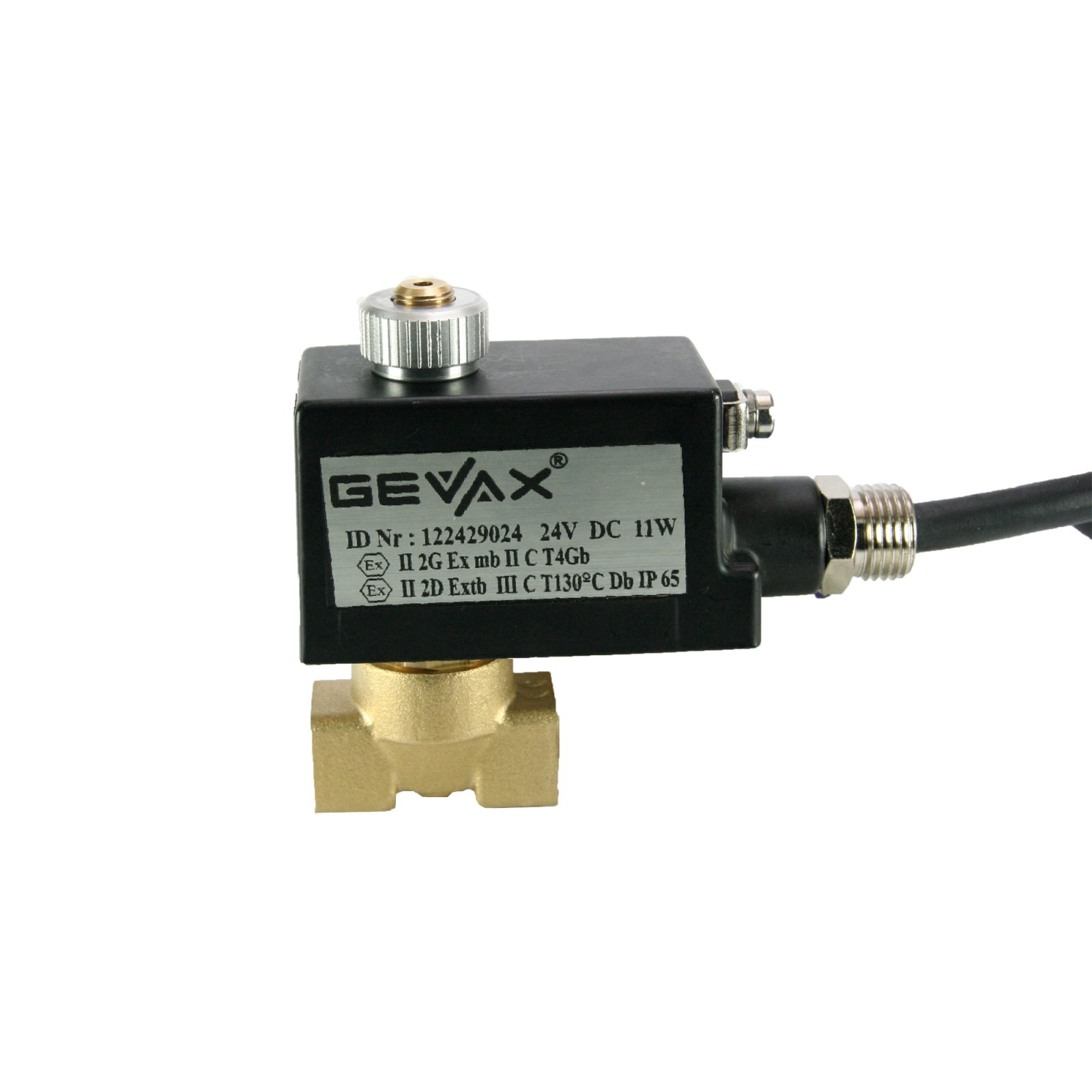

1/4" Solenoid Valve N.O. 3/2 Ways Ex-Proof Top Inlet Direct Acting FKM 0 - 6 Bar G24V DC 11 W
The prominent features of the brass body normally opened ex-proof solenoid valve you are reviewing: Special valve. Air, Water, Gas, Vacuum, Chemical, Hot Water, Oils, Diesel, Natural Gas, LPG & LNG Recommended for use in applications such as etc. Zero Differantial Pressure works on systems. The usage area where the product is frequently preferred is; Automotive, Textile, Irrigation, Cooling, Lubrication, Machining Process, Renewable Energy, Recycling, Water Treatment, Paint Industry.
Technical specifications
18 fields- Valve Type
- Ex-Proof Valves
- Connection Size
- 1/4"
- Position
- Normally Open
- Operating Principle
- Direct Acting
- Ways
- 3/2
- Seal & Diaphragm
- FKM
- Minimum Pressure (bar)
- 0
- Maximum Pressure (bar)
- 6
- Orifice Size (mm)
- 1.5
- Temperature (°C)
- -10°C +150°C
- Coil Brand
- GEVAX
- Coil Voltage
- 24V DC
- Coil Power
- 11 W
- Coil Type
- TP8
- KV Value
- 1 l/min
- Body Material
- Brass
- Body Code
- 71EC
- Product Weight (kg.)
- 0.67
