Stock code5981-KBND016-120-G220AC

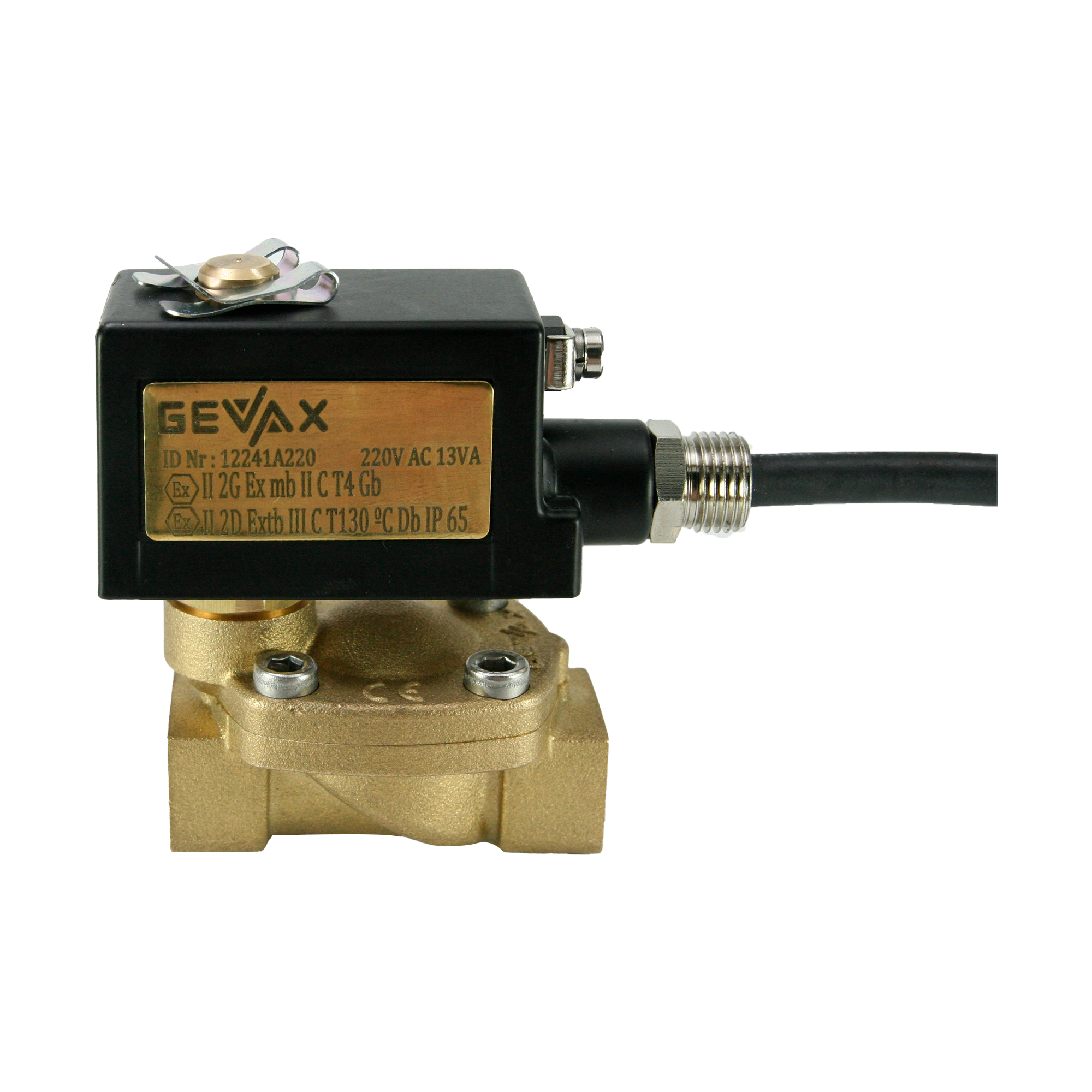

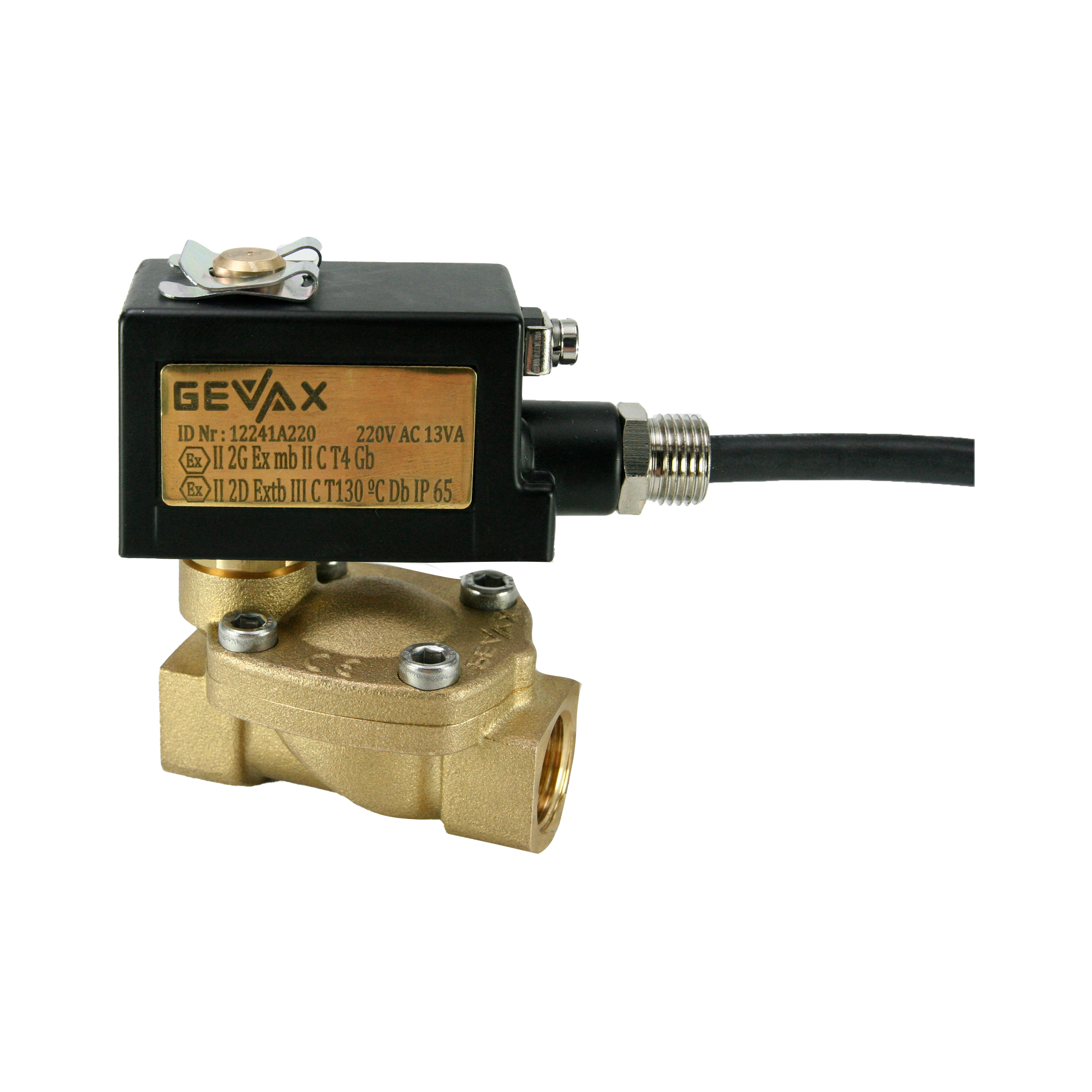

1/2" Solenoid Valve N.C. Ex-Proof for Oxygen Pilot Operated NBR 0.5 - 16 Bar G220V AC 13 VA
The prominent features of the brass body normally closed ex-proof solenoid valve you are reviewing: Special inner components for oxygen applications. Oxygen Recommended for use in applications such as etc. The usage area where the product is frequently preferred is; Automotive, Textile, Renewable Energy, Recycling, Water Treatment.
Technical specifications
18 fields- Valve Type
- Ex-Proof Valves
- Connection Size
- 1/2"
- Position
- Normally Closed
- Operating Principle
- Pilot Operated
- Ways
- 2/2
- Seal & Diaphragm
- NBR
- Minimum Pressure (bar)
- 0.5
- Maximum Pressure (bar)
- 16
- Orifice Size (mm)
- 12
- Temperature (掳C)
- -10掳C +80掳C
- Coil Brand
- GEVAX
- Coil Voltage
- 220V AC
- Coil Power
- 13 VA
- Coil Type
- TP8
- KV Value
- 65 l/min
- Body Material
- Brass
- Body Code
- 07EH
- Product Weight (kg.)
- 0.96
