Stock code6671-KD00000-000-G220AC

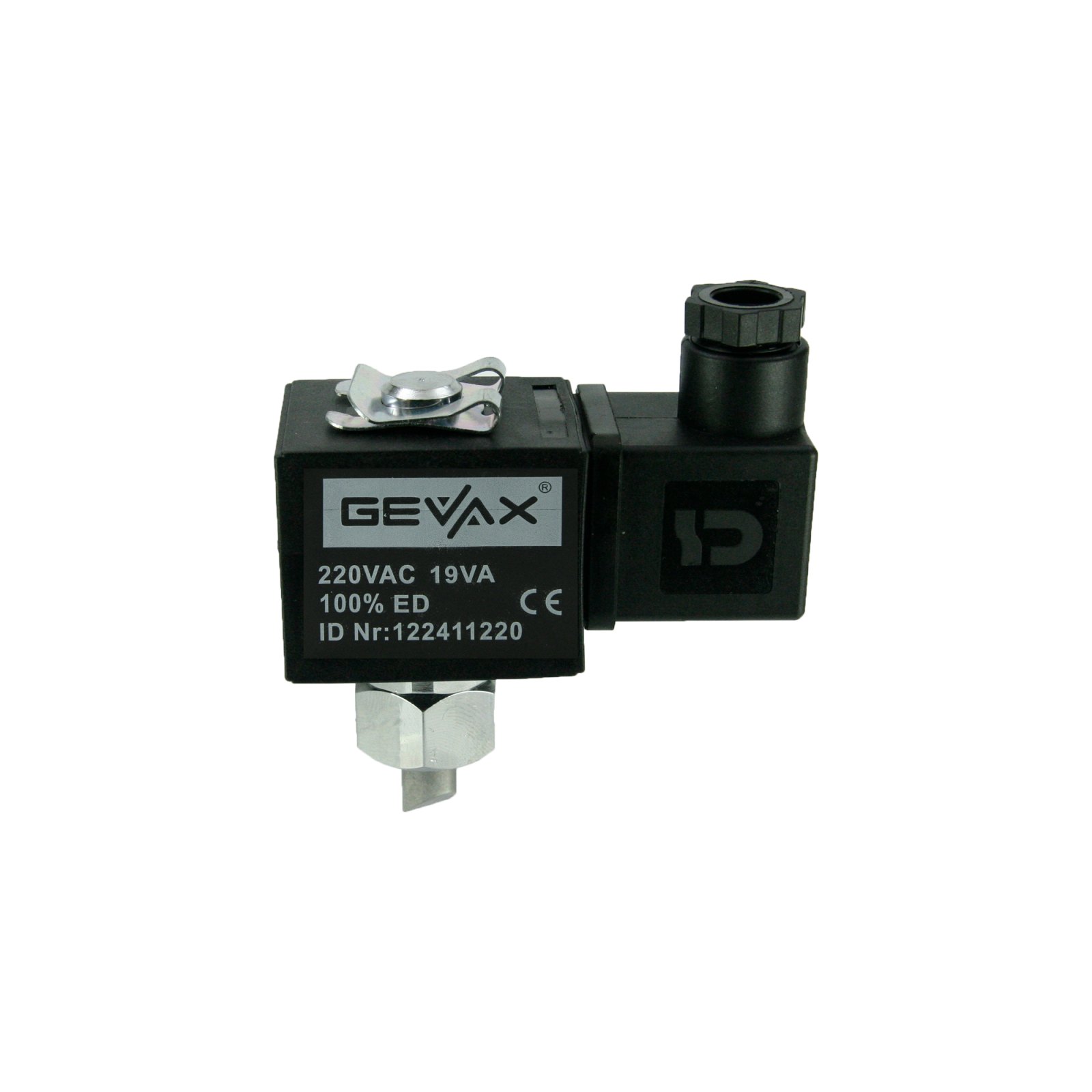

Solenoid Valve N.C. Nickel Plated Lock Valve NBR 0 - 0 Bar G220V AC 19 VA
The prominent features of the nickel plated body normally closed lock solenoid valve you are reviewing: Short-pin locking solenoid. The usage area where the product is frequently preferred is; Automotive, Textile, Wending Machines, Washing Machines, Smart home systems, Packaging machines.
Technical specifications
16 fields- Valve Type
- Lock Valves
- Connection Size
- No thread
- Position
- Normally Closed
- Ways
- 2/2
- Seal & Diaphragm
- NBR
- Minimum Pressure (bar)
- 0
- Maximum Pressure (bar)
- 0
- Orifice Size (mm)
- No Orifice
- Temperature (°C)
- -10°C +80°C
- Coil Brand
- GEVAX
- Coil Voltage
- 220V AC
- Coil Power
- 19 VA
- Coil Type
- TP4
- Body Material
- Nickel Plated Brass
- Body Code
- 01U-
- Product Weight (kg.)
- 0.305
