Stock code6721-KBNI010-500-12DC

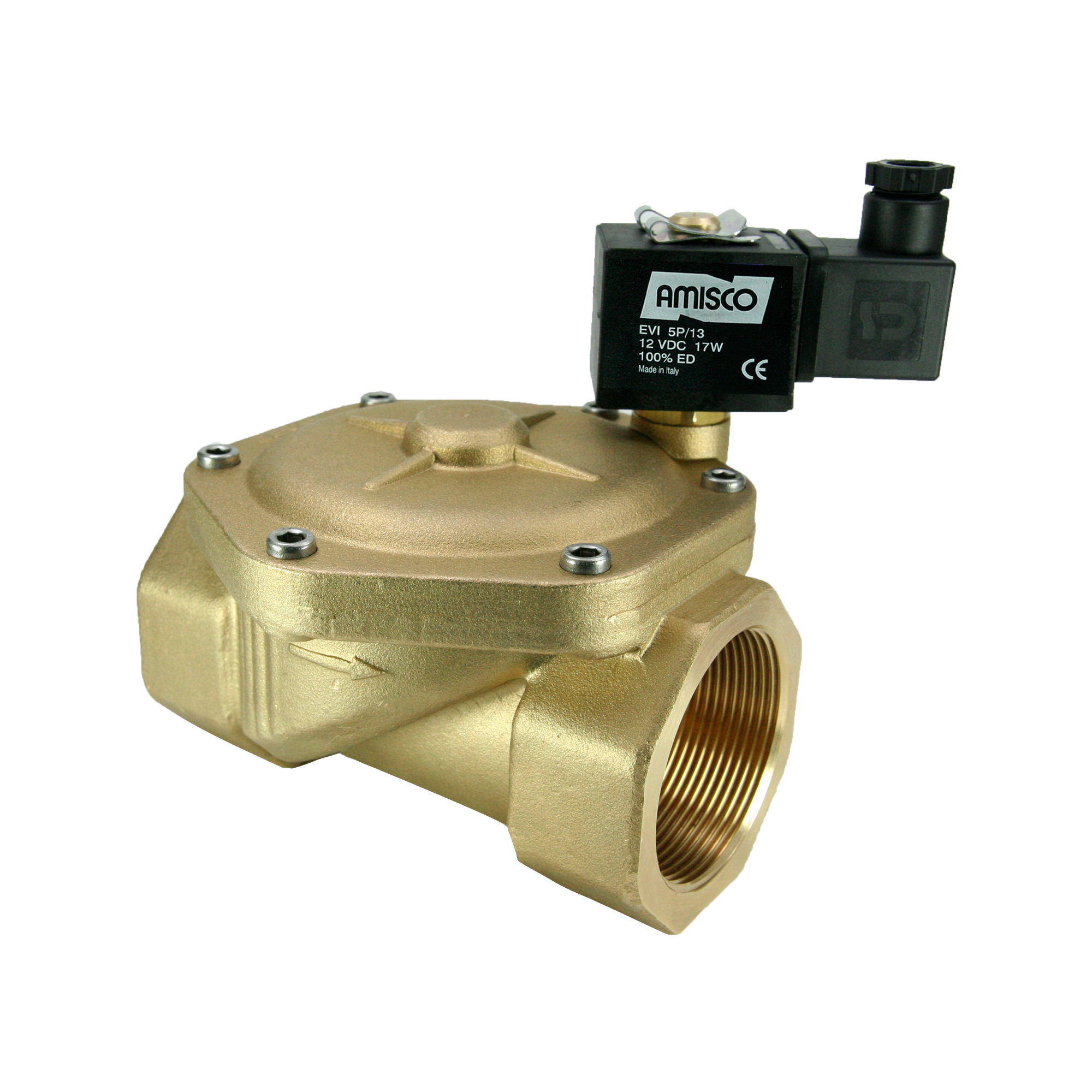

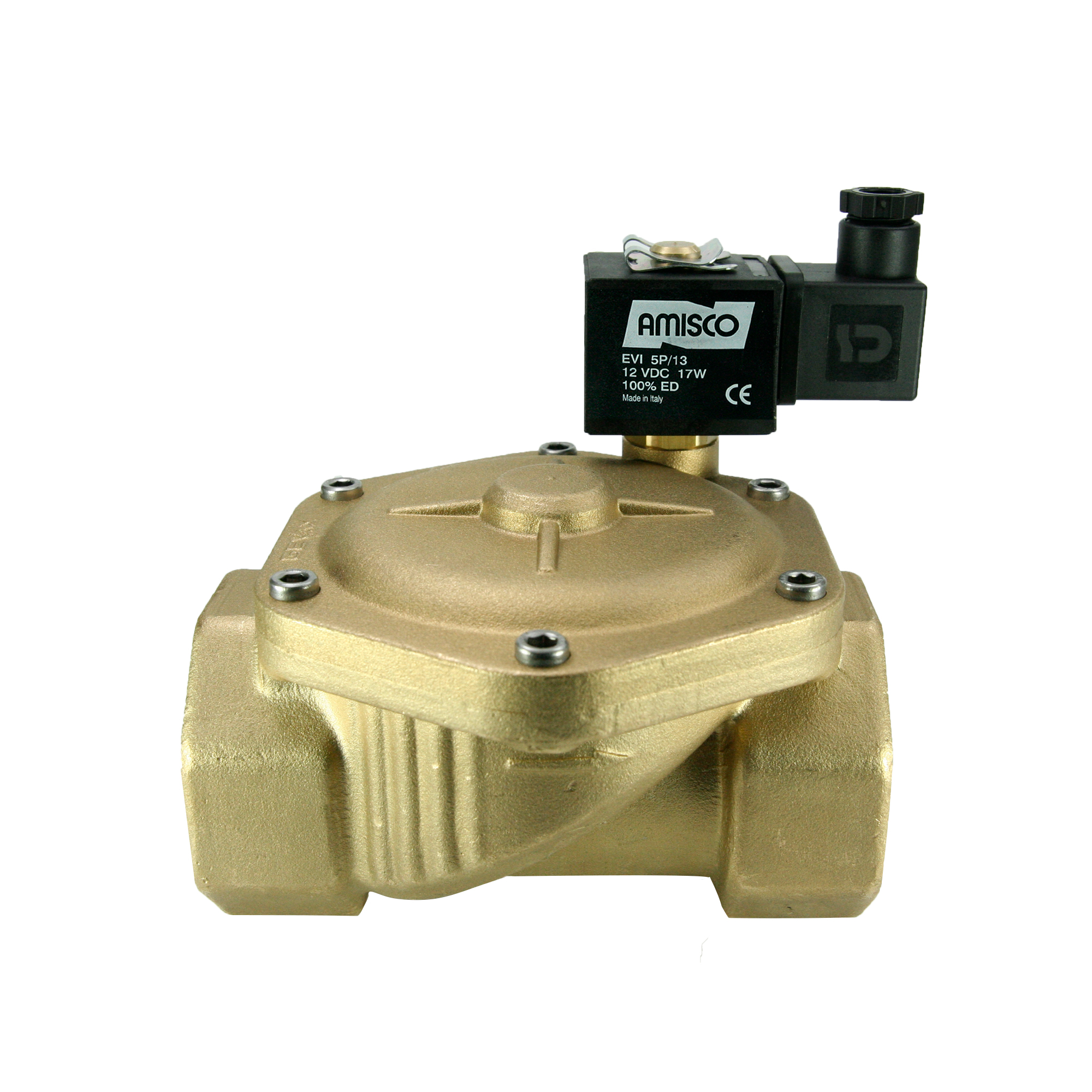

2" Solenoid Valve N.C. SS Retainer Pilot Operated NBR 0.5 - 10 Bar 12V DC 17 W
The prominent features of the brass body normally closed special solenoid valve you are reviewing: Special valve. Air, Water, Gas, Chemical, Oils, Diesel, LPG & LNG Recommended for use in applications such as etc. The usage area where the product is frequently preferred is; Automotive, Textile, Irrigation, Cooling, Lubrication, Compressor, Washing Machines, Machining Process, Renewable Energy, Recycling, Water Treatment, Paint Industry.
Technical specifications
18 fields- Valve Type
- Special Valves
- Connection Size
- 2"
- Position
- Normally Closed
- Operating Principle
- Pilot Operated
- Ways
- 2/2
- Seal & Diaphragm
- NBR
- Minimum Pressure (bar)
- 0.5
- Maximum Pressure (bar)
- 10
- Orifice Size (mm)
- 50
- Temperature (掳C)
- -10掳C +80掳C
- Coil Brand
- Amisco
- Coil Voltage
- 12V DC
- Coil Power
- 17 W
- Coil Type
- TP4
- KV Value
- 575 l/min
- Body Material
- Brass
- Body Code
- 01TX
- Product Weight (kg.)
- 3.745
