Stock code6961-KDNCVAKUM-060-12DC

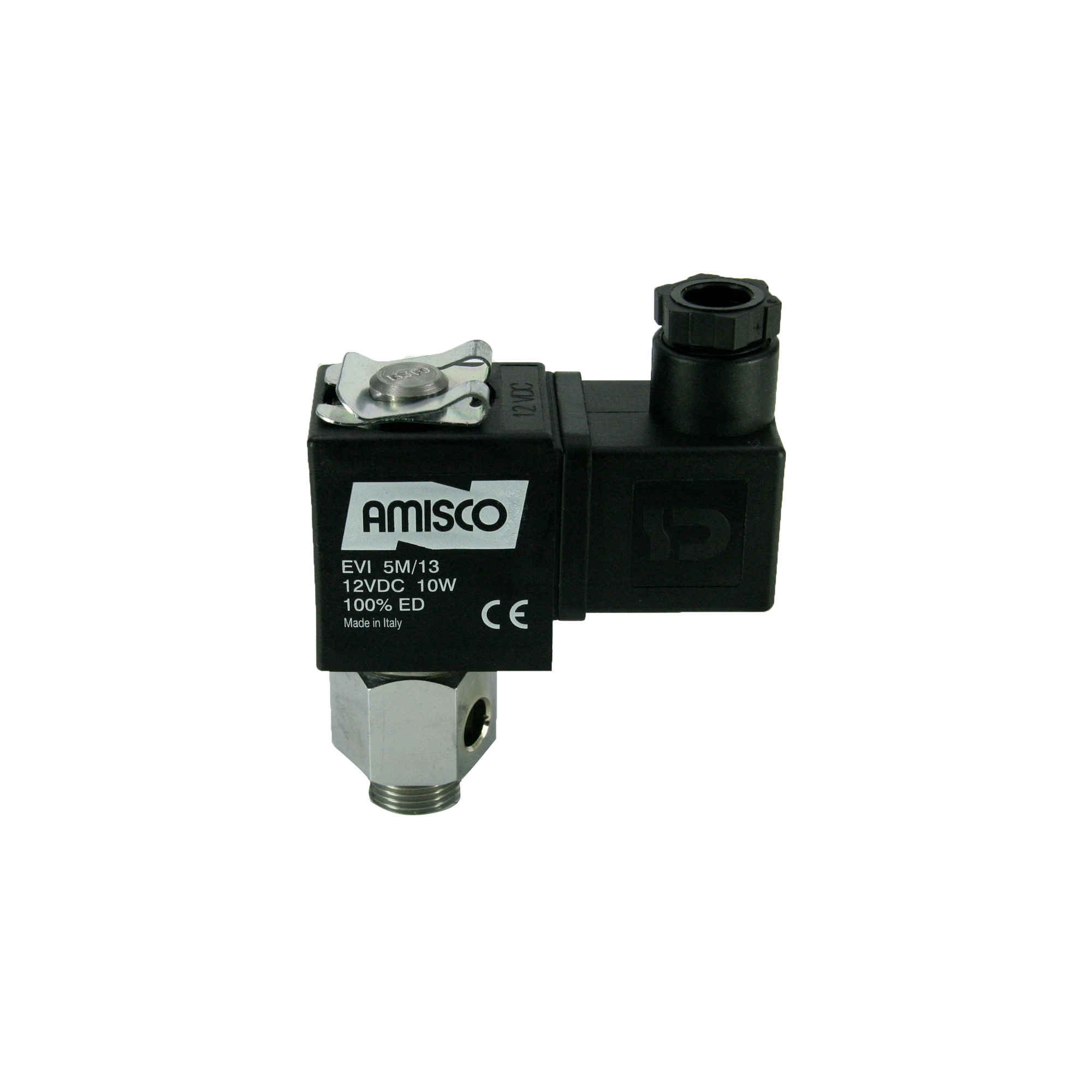

3/8" Solenoid Valve N.C. Nickel Plated Vacuum Direct Acting NBR -1 - 0 Bar 12V DC 10 W
The prominent features of the nickel plated body normally closed vacuum solenoid valve you are reviewing: Nickel-plated brass body, custom-designed vacuum valve, used in milking machines. Vacuum Recommended for use in applications such as etc. Zero Differantial Pressure works on systems. The usage area where the product is frequently preferred is; Food.
Technical specifications
18 fields- Valve Type
- Vacuum Valves
- Connection Size
- 3/8"
- Position
- Normally Closed
- Operating Principle
- Direct Acting
- Ways
- 2/2
- Seal & Diaphragm
- NBR
- Minimum Pressure (bar)
- -1
- Maximum Pressure (bar)
- 0
- Orifice Size (mm)
- 6
- Temperature (掳C)
- -10掳C +80掳C
- Coil Brand
- Amisco
- Coil Voltage
- 12V DC
- Coil Power
- 10 W
- Coil Type
- TP1
- KV Value
- 10 l/min
- Body Material
- Nickel Plated Brass
- Body Code
- 01QF
- Product Weight (kg.)
- 0.27
