Stock code6971-KHED002-150-G12DC

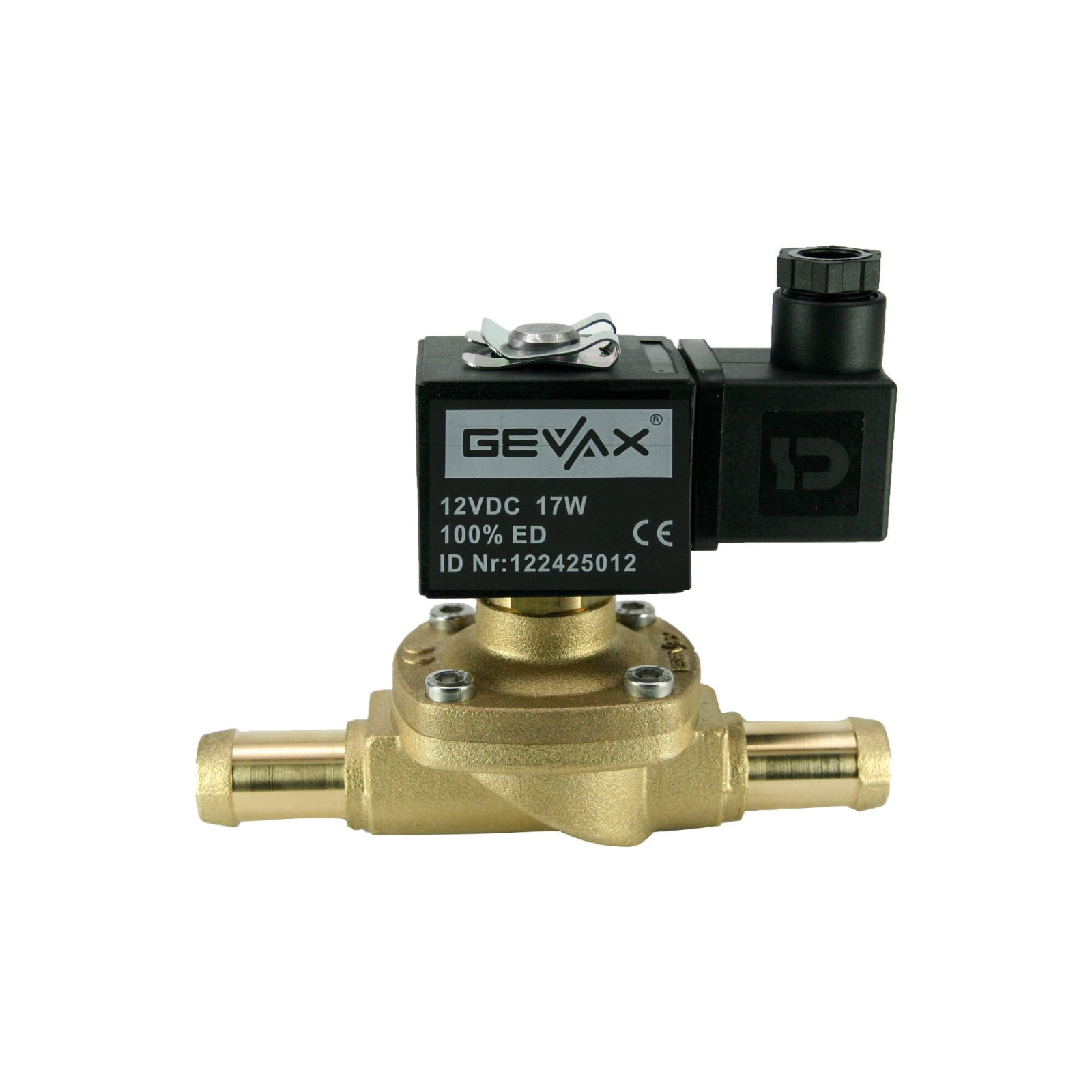

1/2" Solenoid Valve N.C. Hose Connection with Briquette Assisted Lift Diaphragm Controlled EPDM 0 - 2 Bar G12V DC 17 W
The prominent features of the brass body normally closed special solenoid valve you are reviewing: Hose-connected, high flow rate. Air, Water, Vacuum, Chemical, Hot Water Recommended for use in applications such as etc. Zero Differantial Pressure works on systems. The usage area where the product is frequently preferred is; Automotive, Textile, Agricultural, Irrigation, Cooling, Building Automation, Wending Machines, Washing Machines, Sawing Machines, Machining Process, Renewable Energy, Recycling, Water Treatment, Paint Industry, Smart home systems.
Technical specifications
18 fields- Valve Type
- Special Valves
- Connection Size
- 1/2"
- Position
- Normally Closed
- Operating Principle
- Hung Diaphragm Type
- Ways
- 2/2
- Seal & Diaphragm
- EPDM
- Minimum Pressure (bar)
- 0
- Maximum Pressure (bar)
- 2
- Orifice Size (mm)
- 15
- Temperature (°C)
- -10°C +140°C
- Coil Brand
- GEVAX
- Coil Voltage
- 12V DC
- Coil Power
- 17 W
- Coil Type
- TP4
- KV Value
- 65 l/min
- Body Material
- Brass
- Body Code
- 11QH
- Product Weight (kg.)
- 0.695
