Stock code7901-ADPA003-030-220AC

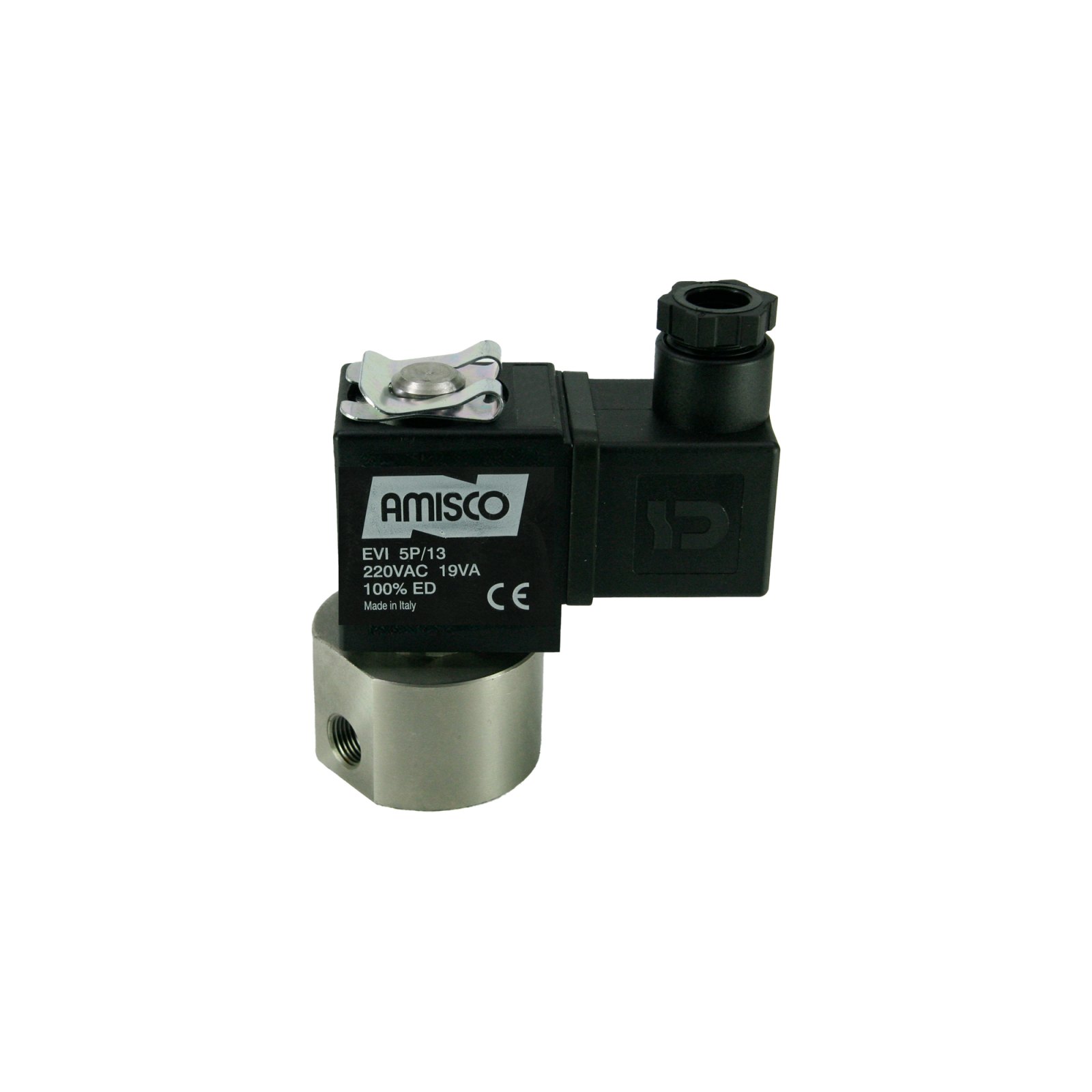

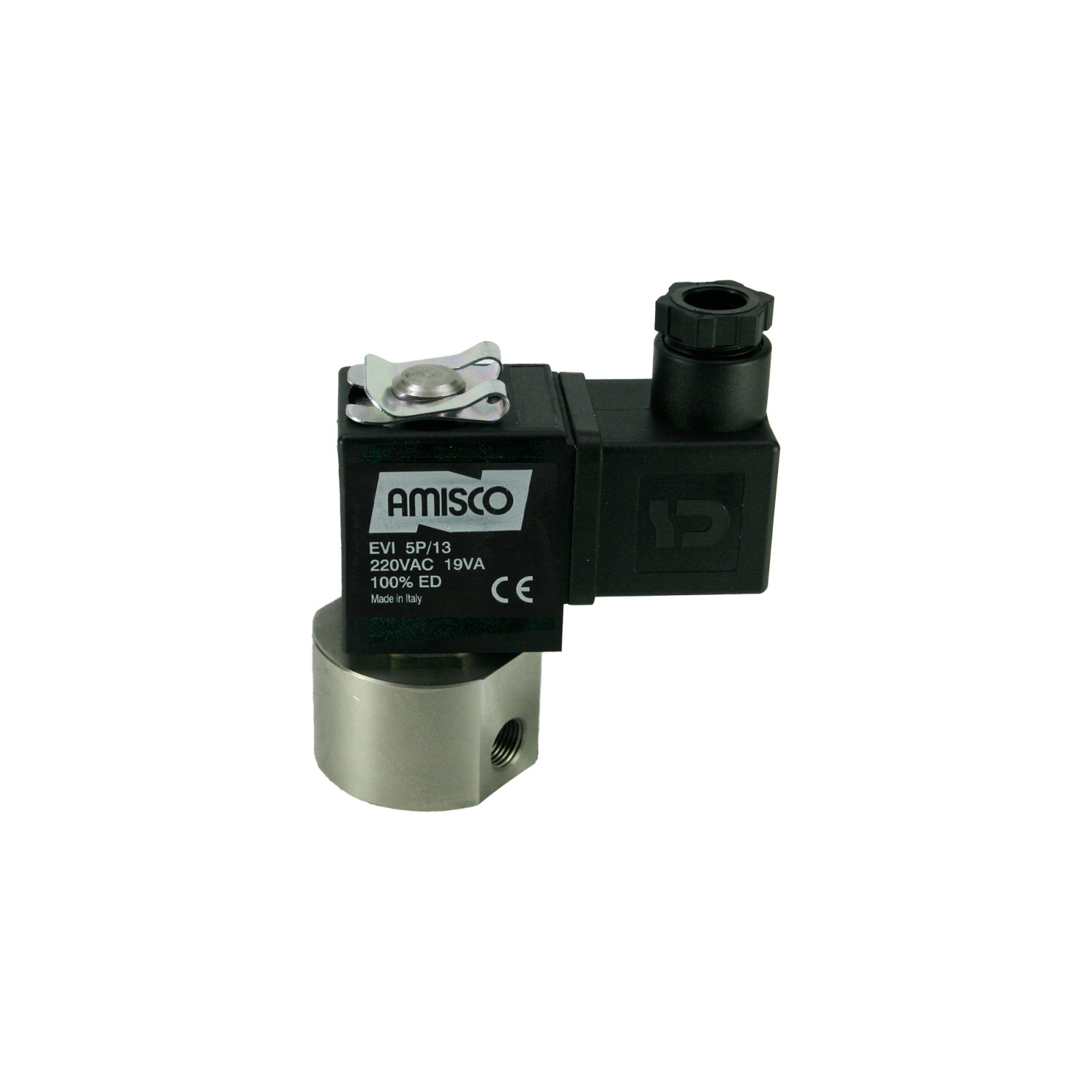

1/8" Solenoid Valve N.O. Stainless Steel Direct Acting PTFE 0 - 3 Bar 220V AC 19 VA
The prominent features of the stainless steel body normally opened general purpose solenoid valve you are reviewing: Corrosion-resistant stainless steel body and internal parts, wide coil options. Water, Chemical, Hot Water, Oils, Diesel, LPG & LNG Recommended for use in applications such as etc. Zero Differantial Pressure works on systems. The usage area where the product is frequently preferred is; Automotive, Textile, Food, Agricultural, Medical, Irrigation, Cooling, Lubrication, Wending Machines, Washing Machines, Sawing Machines, Machining Process, Renewable Energy, Recycling, Water Treatment, Paint Industry, Smart home systems.
Technical specifications
18 fields- Valve Type
- General Purpose Valves
- Connection Size
- 1/8"
- Position
- Normally Open
- Operating Principle
- Direct Acting
- Ways
- 2/2
- Seal & Diaphragm
- PTFE
- Minimum Pressure (bar)
- 0
- Maximum Pressure (bar)
- 3
- Orifice Size (mm)
- 3
- Temperature (°C)
- -10°C +160°C
- Coil Brand
- Amisco
- Coil Voltage
- 220V AC
- Coil Power
- 19 VA
- Coil Type
- TP4
- KV Value
- 3.5 l/min
- Body Material
- Stainless Steel
- Body Code
- 70OA
- Product Weight (kg.)
- 0.475
